CHECKING THE ENGINE OIL LEVEL/

CHANGING THE ENGINE OIL

4. Start the engine, warm it up for several min-

utes, and then turn it off.

5. Check the engine oil level again.

NOTE:

Before checking the engine oil level, wait a few

minutes until the oil has settled.

EAS00076

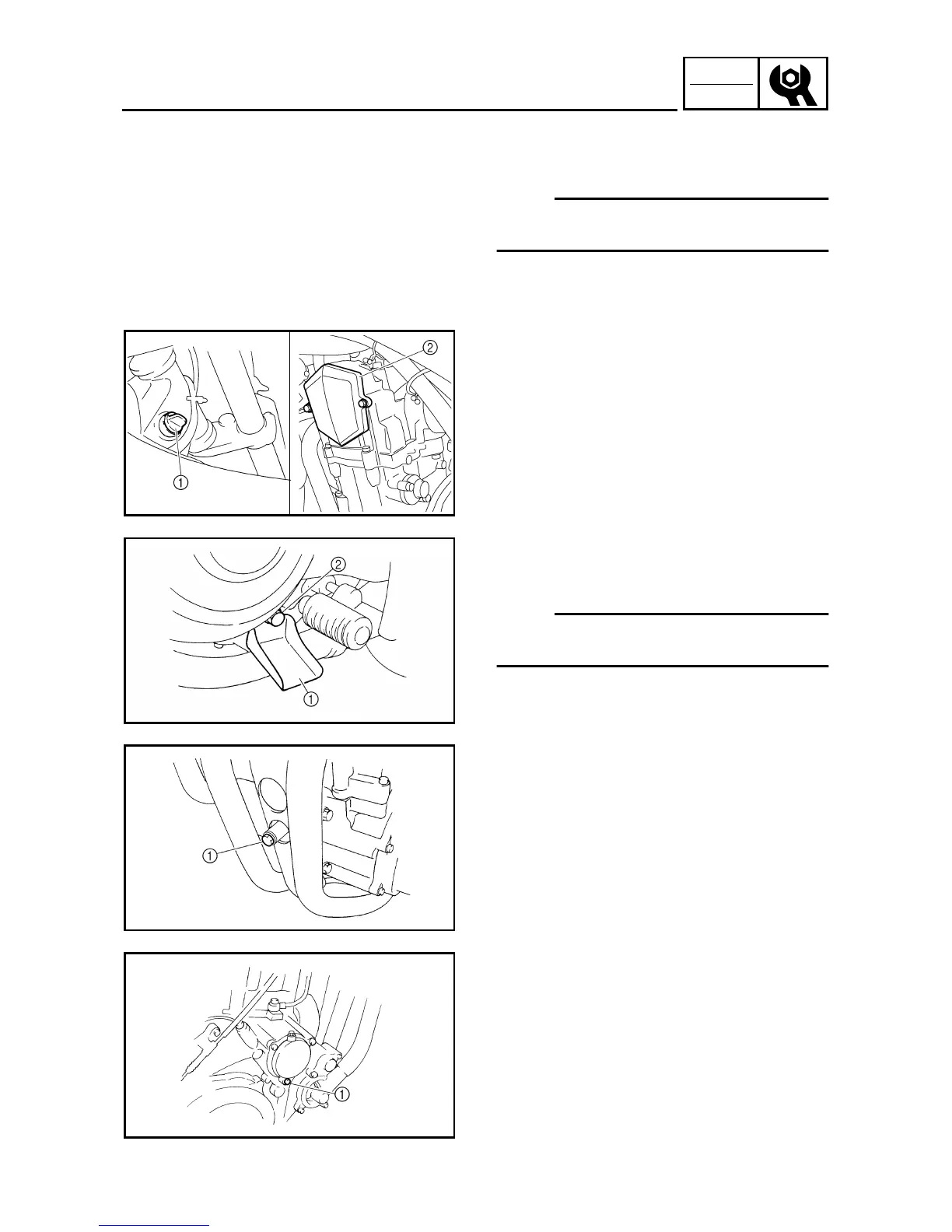

CHANGING THE ENGINE OIL

1. Start the engine, warm it up for several min-

utes, and then turn it off.

2. Place a container under the engine.

3. Remove:

• engine oil filler cap 1

• camshaft sprocket cover 2

4. Install the engine oil drain attachment 1

under the engine oil drain bolt of the crank-

case.

NOTE:

“engine oil drain attachment” is a part of the

owner’s tool kit.

5. Remove:

• engine oil drain bolt (crankcase) 2

(along with the gasket)

6. Remove:

• engine oil drain bolt (oil tank) 1

(along with the gasket)

7. Remove:

• oil filter element drain bolt 1

8. Drain:

• engine oil

(completely from the crankcase and the oil

tank)
