Yamaha XT660X Service Manual

3 - 29
CHK
ADJ
CHECKING THE AIR FILTER ELEMENT/
CHECKING THE THROTTLE BODY JOINT/
CHECKING THE FUEL HOSE
6. Install:
• right side panel
• seat
Refer to “COWLING AND COVER”.
EAS00094

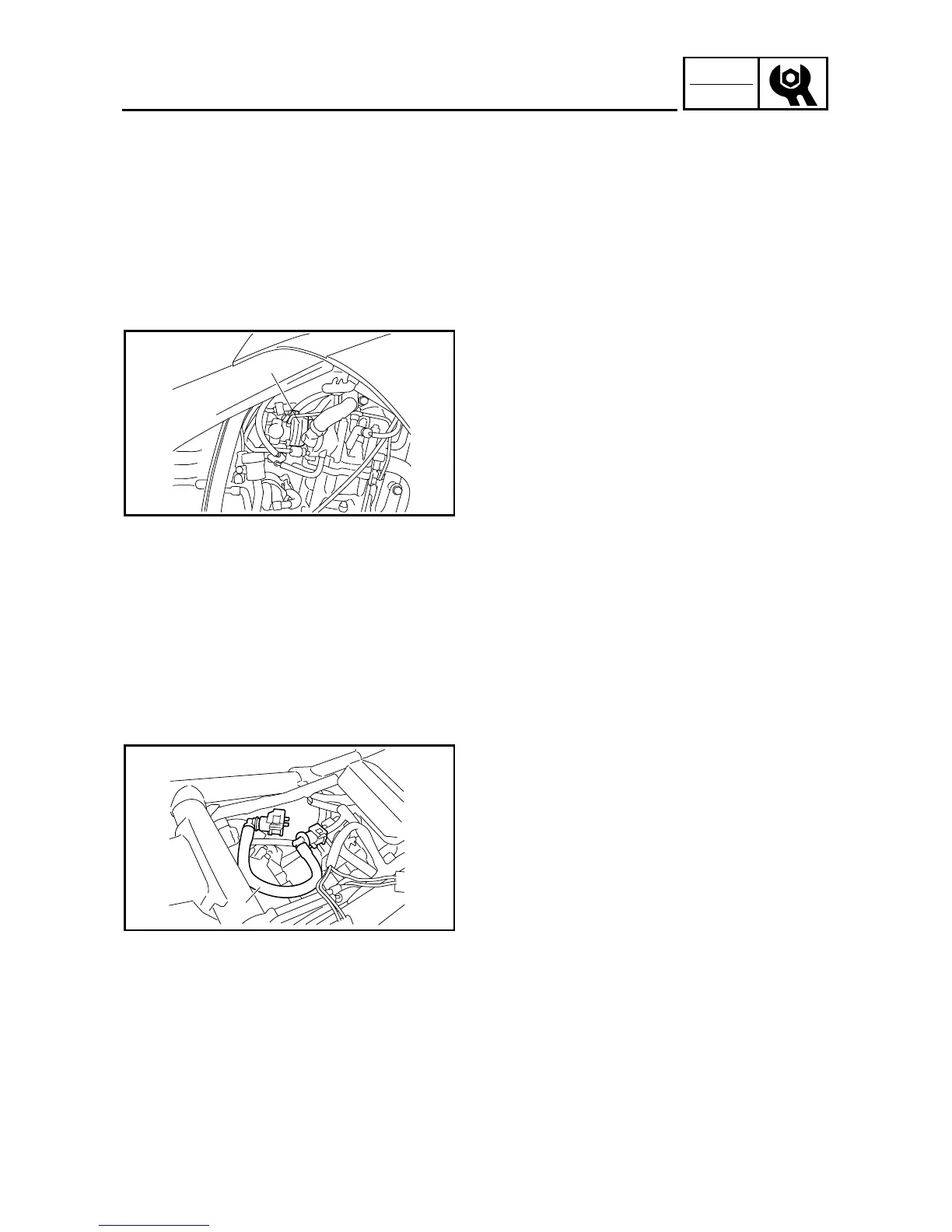

CHECKING THE THROTTLE BODY JOINT
1. Check:
• throttle body joint 1
Cracks/damage → Replace.
Refer to “FUEL INJECTION SYSTEM” in
chapter 7.
1
EAS00096
CHECKING THE FUEL HOSE
1. Remove:
• seat
• side panels (left and right)
Refer to “COWLING AND COVER”.
• fuel tank
Refer to “FUEL TANK”.
2. Check:
• fuel hose 1
Cracks/damage → Replace.
Loose connection → Connect properly.
3. Install:
• fuel tank
Refer to “FUEL TANK”.
• side panels (left and right)
• seat
Refer to “COWLING AND COVER”.
