Yamaha XT660X Service Manual

4 - 3
CHAS
FRONT WHEEL AND BRAKE DISC
EAS00519
REMOVING THE FRONT WHEEL
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
NOTE:
_
Place the motorcycle on a suitable stand so
that the front wheel is elevated.
2. Remove:
• brake caliper
NOTE:
_
Do not apply the brake lever when removing
the brake caliper.
3. Elevate:
• front wheel
NOTE:
_
Place the motorcycle on a suitable stand so
that the front wheel is elevated.
EAS00526

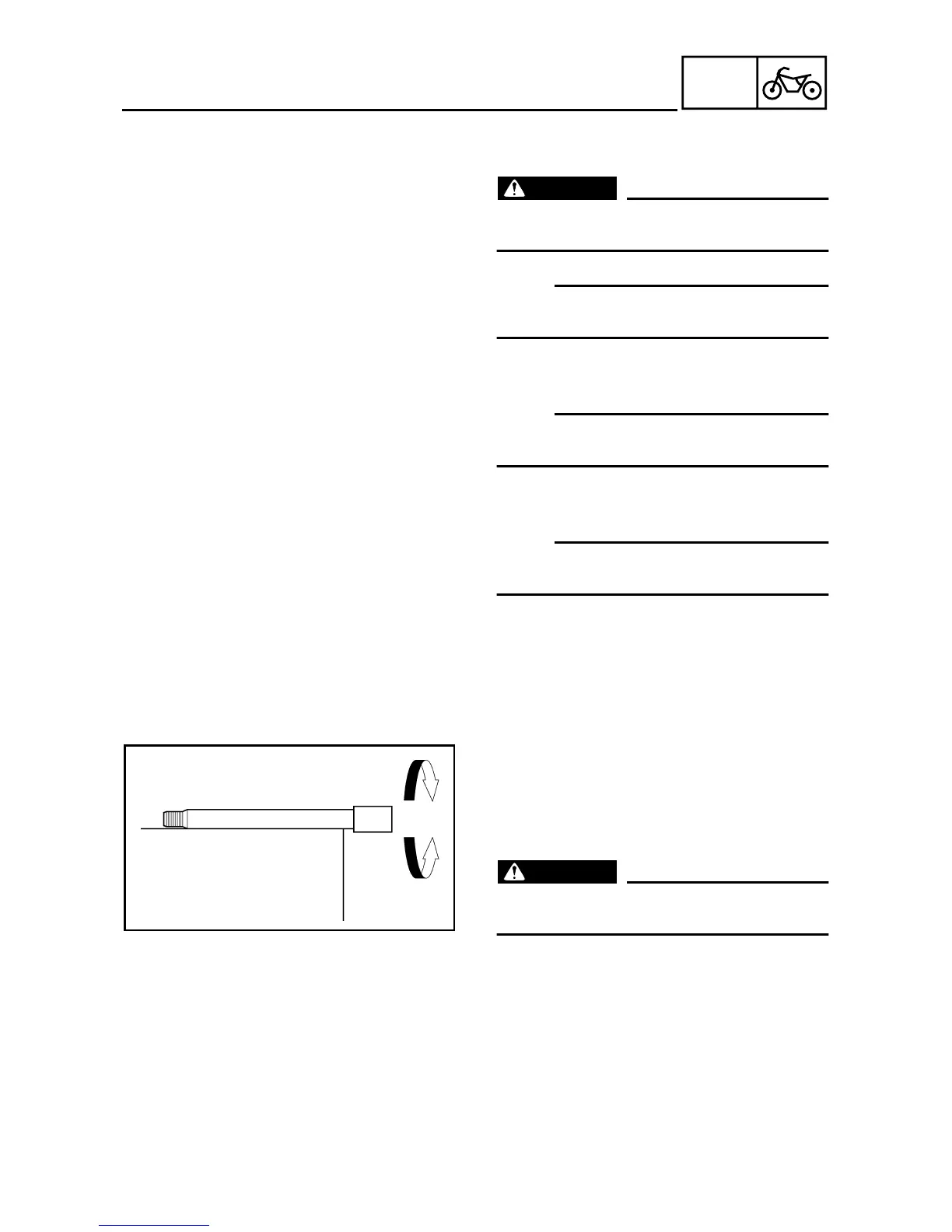

CHECKING THE FRONT WHEEL
1. Check:
• wheel axle
Roll the wheel axle on a flat surface.
Bends
→
Replace.
WARNING
_
Do not attempt to straighten a bent wheel
axle.
2. Check:
• tire
• front wheel
Damage/wear
→
Replace.
Refer to “CHECKING THE TIRES” in chap-
ter 3.
