Yamaha XT660X Service Manual

4 - 51
CHAS

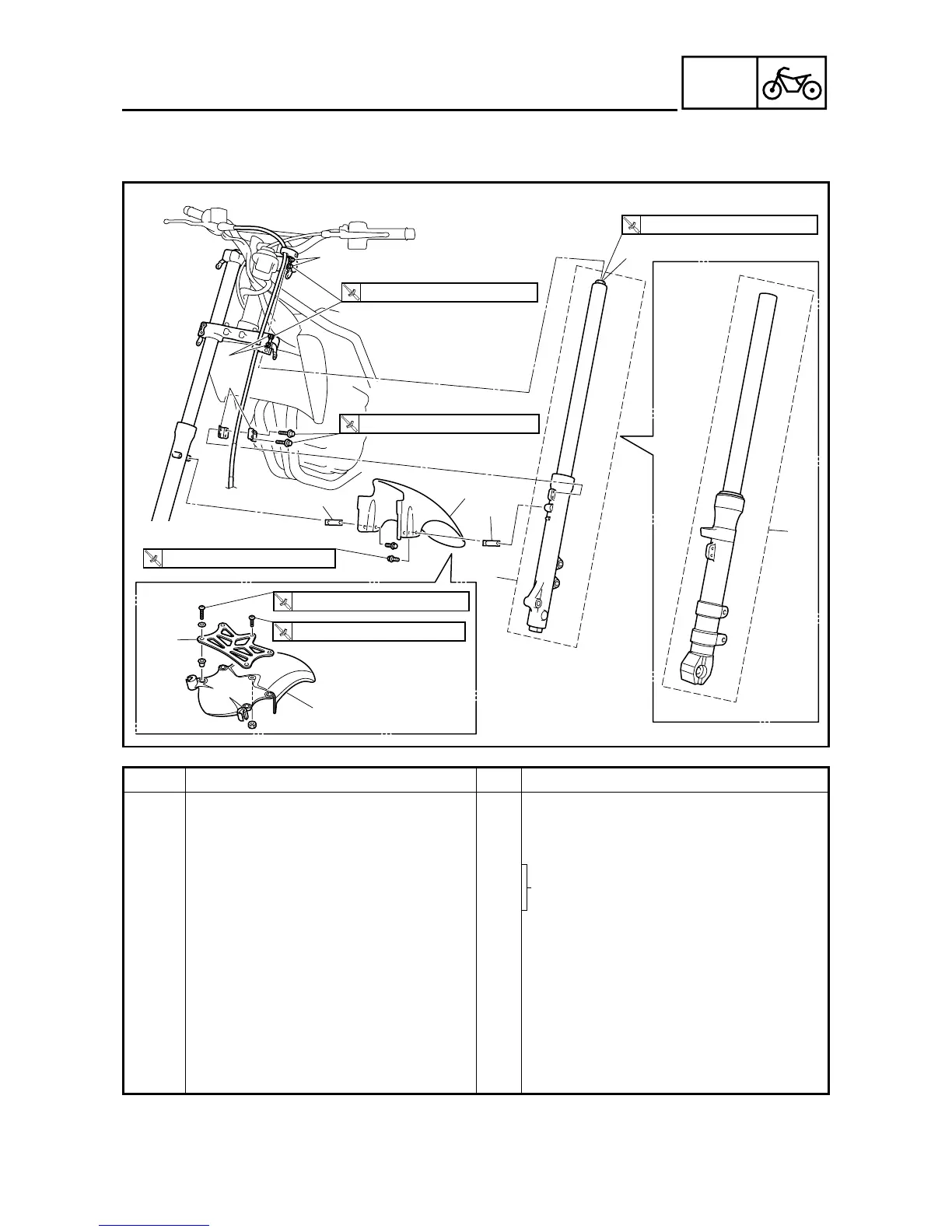

FRONT FORK
EAS00646
FRONT FORK
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
5
2
2
1
4
3
9
7
10
8
6
(4)
Order Job/Part Q’ty Remarks
Removing the front fork legs
Remove the parts in the order listed.
The following procedure applies to both
of the front fork legs.
Front fender
Refer to “COWLING AND COVER” in
chapter 3.
Front fork protector
Front cowling assembly
Front wheel Refer to “FRONT WHEEL AND BRAKE
DISC”.
1 Front mud guard 1 XT660R
2 Front mud guard stay 2 XT660R
3 Stabilizer 1 XT660X
4 Front mud guard 1 XT660X
5 Brake hose holder 2 Refer to “INSTALLING THE FRONT
FORK LEGS”.

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
