Yamaha XT660X Service Manual

6 - 1
COOL
EAS00454

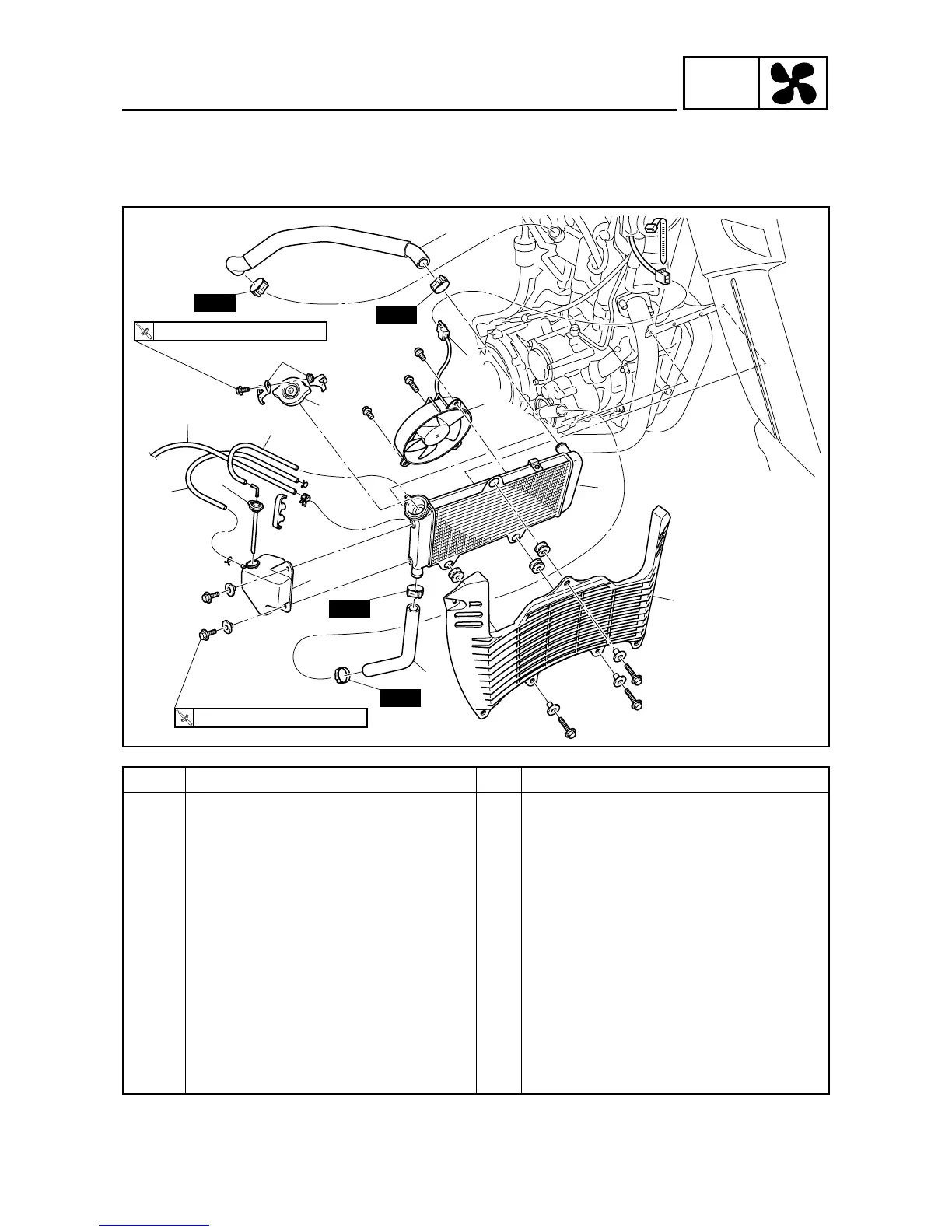

COOLING SYSTEM
RADIATOR
6
T
R
.
.
5 Nm (0.5 m
•
kg, 3.6 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
New
New
New
New
1
2
3
3
5
12
9
8
10
11
7
4
Order Job/Part Q’ty Remarks
Removing the radiator
Remove the parts in the order listed.
Seat/side panels (left and right) Refer to “COWLING AND COVER” in
chapter 3.
Fuel tank side covers (left and right)/
fuel tank
Refer to “FUEL TANK” in chapter 3.
Coolant Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
1 Radiator cap retainer 2
2 Radiator cap 1
3 Coolant reservoir hose/cap 1/1
4 Coolant reservoir breather hose 1
5 Fast idle plunger outlet hose 1 Disconnect.
6 Coolant reservoir 1
RADIATOR
