Yamaha XT660X Service Manual

5 - 18
ENG

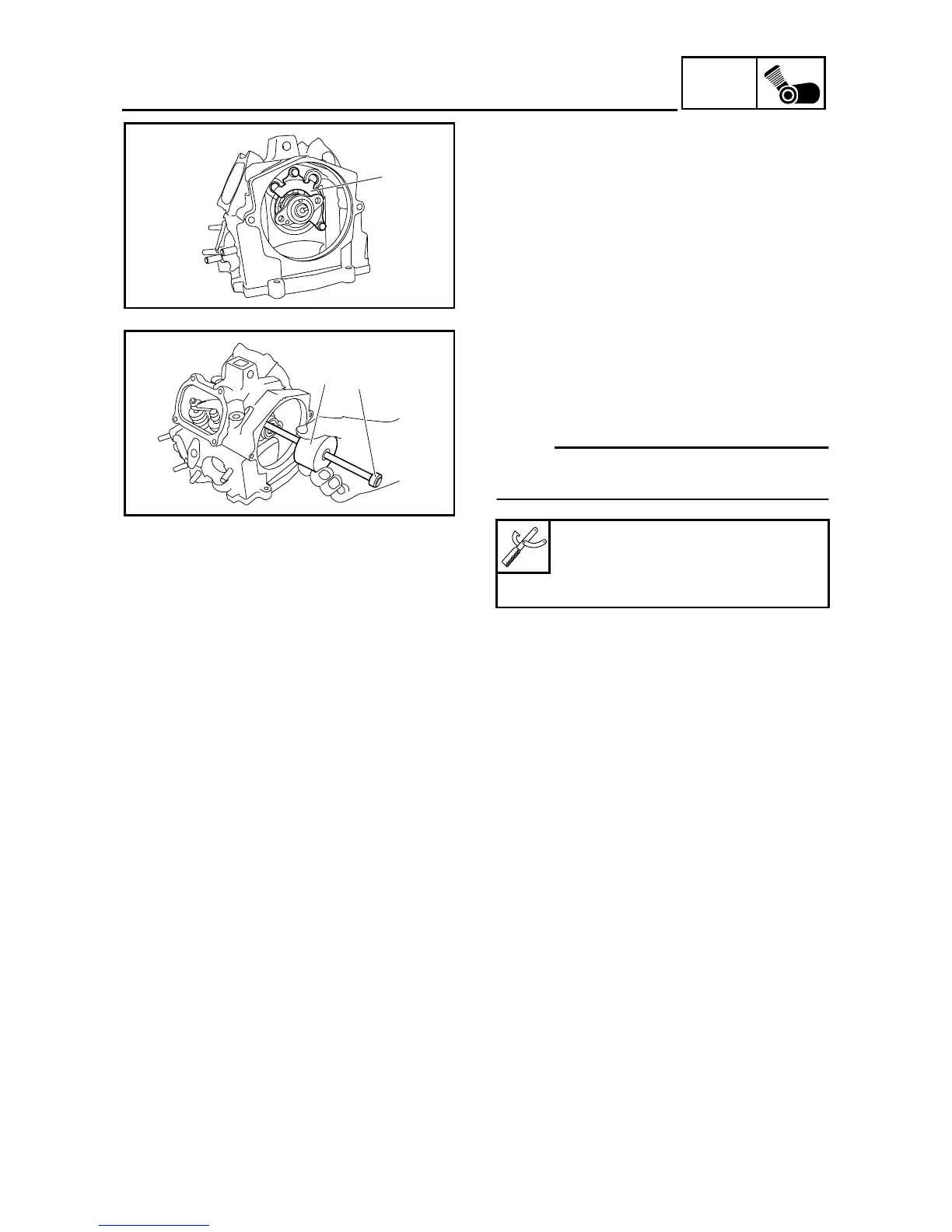

ROCKER ARMS AND CAMSHAFT
EAS00202
REMOVING THE ROCKER ARMS AND
CAMSHAFT
1. Loosen:
• locknuts
• adjusting screws
2. Remove:
• camshaft retainer
1
1
3. Remove:
• intake rocker arm shaft
• exhaust rocker arm shaft
• intake rocker arm
• exhaust rocker arm
NOTE:
_
Remove the rocker arm shafts with the slide
hammer bolt
1
and weight
2.
4. Remove:
• camshaft
Slide hammer bolt
90890-01083
Weight
90890-01084
1
2
EAS00205
CHECKING THE CAMSHAFT
1. Check:
• camshaft lobes
Blue discoloration/pitting/scratches →
Replace the camshaft and camshaft
sprocket.
