Yamaha XT660X Service Manual

5 - 81
ENG
TRANSMISSION

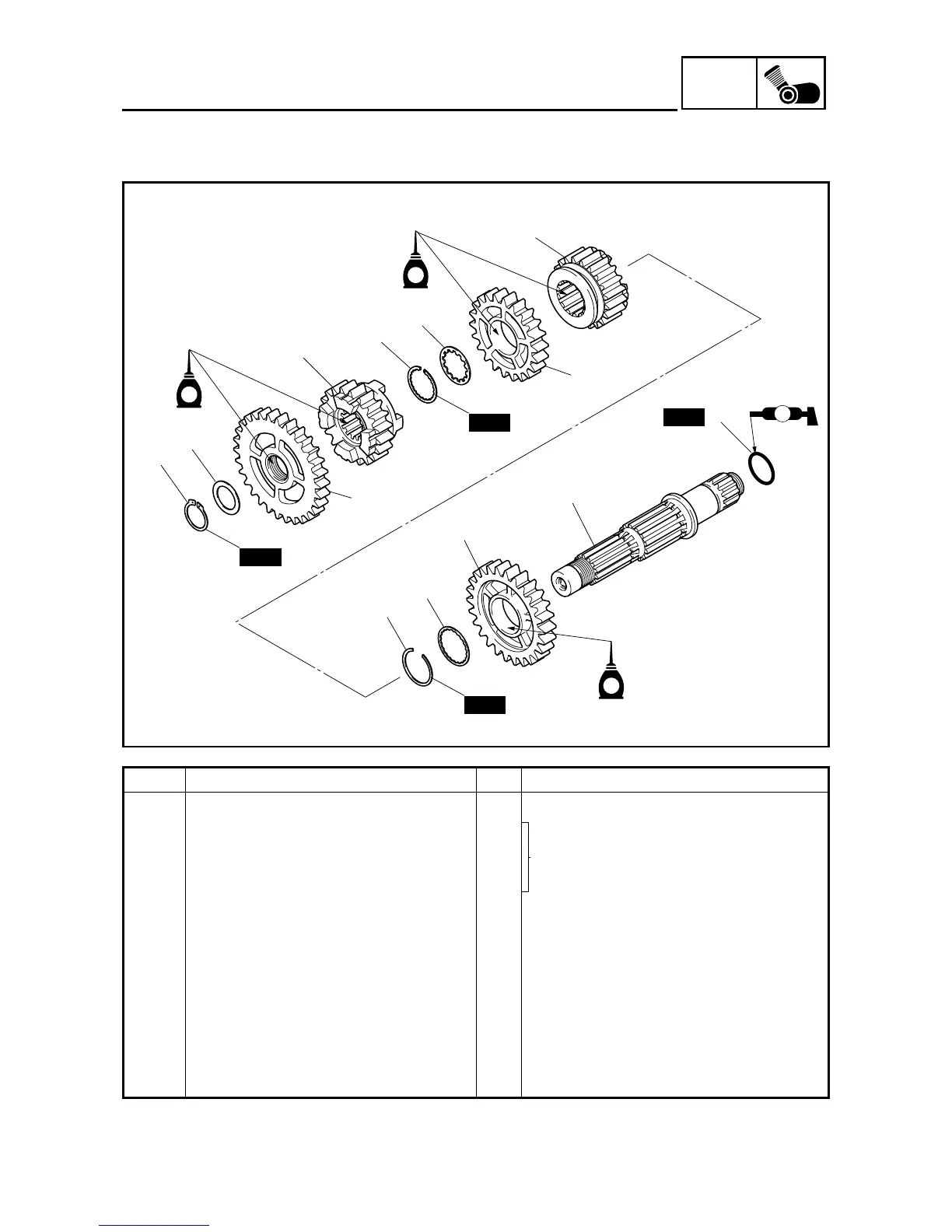

DRIVE AXLE
M
M
M
New
New
New
New
LS
1
5
5
2
6
6
3
4
7
8
9
0
A
Order Job/Part Q’ty Remarks
Disassembling the drive axle
Remove the parts in the order listed.
1 Circlip 1
Refer to “ASSEMBLING THE MAIN
AXLE AND DRIVE AXLE”.
2 Washer 1
3 1st wheel gear 1
4 4th wheel gear 1
5 Circlip 2
6 Toothed washer 2
7 3rd wheel gear 1
8 5th wheel gear 1
9 2nd wheel gear 1
0 Drive axle 1
A O-ring 1
For assembly, reverse the disassembly
procedure.

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
