Yamaha XT660X Service Manual

4 - 71
CHAS
STEERING HEAD
EAS00679

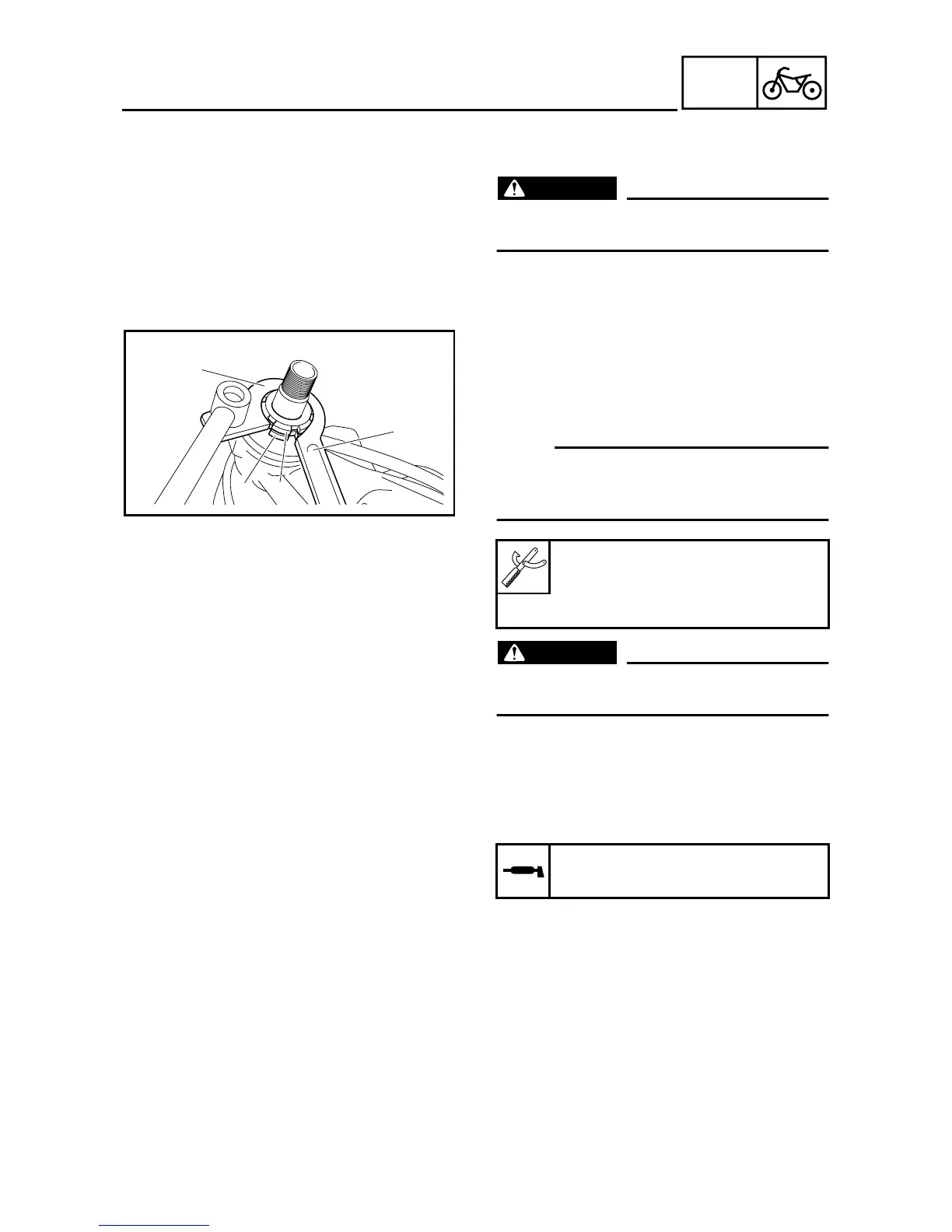

REMOVING THE LOWER BRACKET
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
2. Remove:
• upper ring nut
1
• rubber washer
• lower ring nut
2
• lower bracket
NOTE:
_
Hold the lower ring nut with the steering nut
wrench
3
, and then remove the upper ring nut
with the ring nut wrench
4
.
WARNING
_
Securely support the lower bracket so that
there is no danger of it falling.
Steering nut wrench
90890-01403
Ring nut wrench
90890-01268
3
4
2
1
EAS00681
CHECKING THE STEERING HEAD
1. Wash:
• bearings
• bearing races
2. Check:
• bearings
• bearing races
Damage/pitting
→
Replace.
Recommended cleaning solvent
Kerosene
