Yamaha XT660X Service Manual

3 - 27
CHK
ADJ

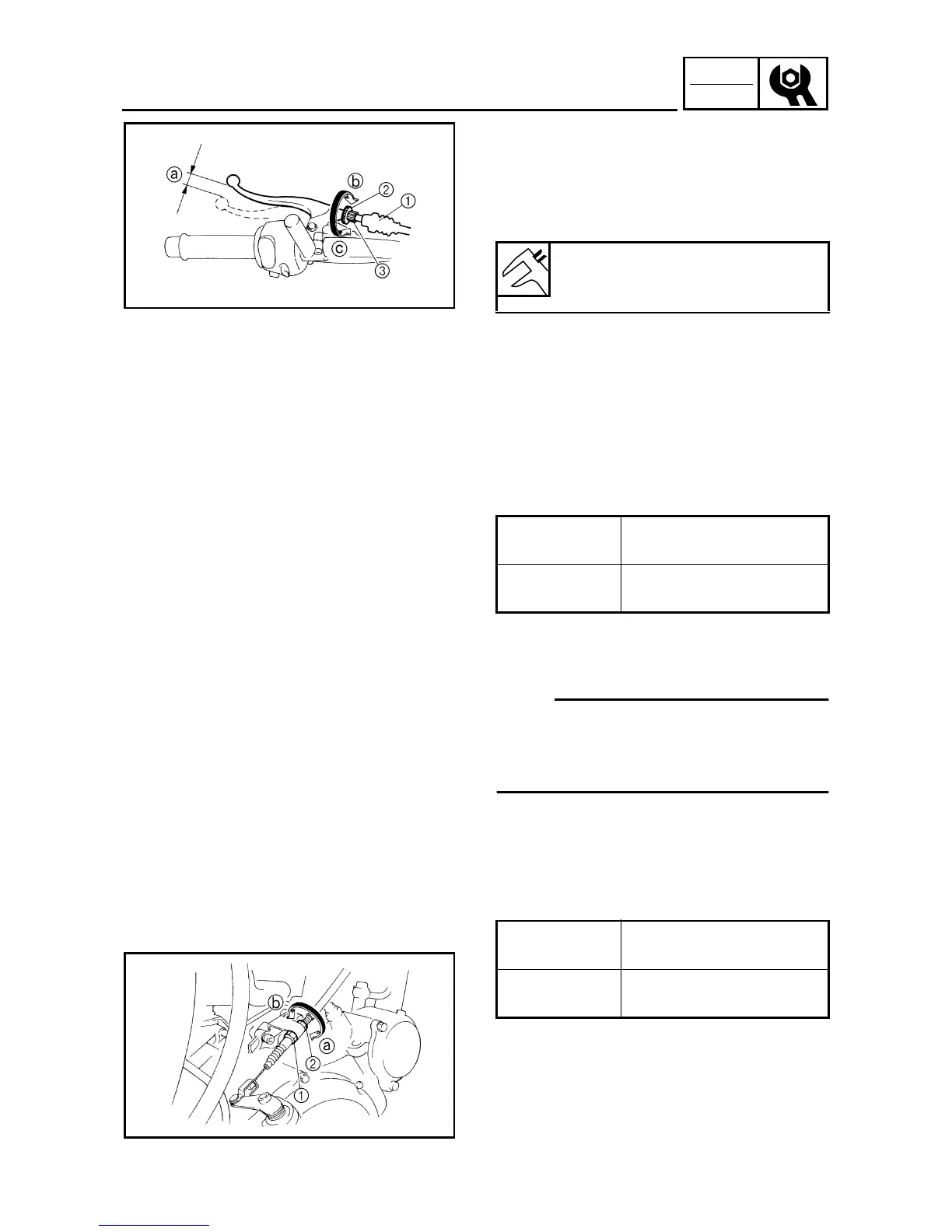

ADJUSTING THE CLUTCH CABLE FREE PLAY
EAS00078
ADJUSTING THE CLUTCH CABLE FREE
PLAY
1. Check:
• clutch cable free play
a
Out of specification
→
Adjust.
2. Adjust:
• clutch cable free play
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
Handlebar end
a. Slide back the rubber cover
1
.
b. Loosen the locknut
2
.
c. Turn the adjusting bolt
3
in direction
b
or
c
until the specified clutch cable free play
is obtained.
d. Tighten the locknut.
e. Slide the rubber cover to its original posi-
tion.
NOTE:
_
If the specified clutch cable free play cannot be
obtained on the handlebar end of the cable,
adjust the free play at the engine end of the
cable using the adjusting nut.
Engine end
a. Loosen the locknut
1
.
b. Turn the adjusting nut
2
in direction
a
or
b
until the specified clutch cable free play
is obtained.
c. Tighten the locknuts.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Clutch cable free play (at the end
of the clutch lever)
10.0 ~ 15.0 mm (0.39 ~ 0.59 in)
Direction
b
Clutch cable free play is
increased.
Direction
c
Clutch cable free play is
decreased.
Direction
a
Clutch cable free play is
increased.
Direction
b
Clutch cable free play is
decreased.

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
