Yamaha XT660X - Front Wheel and Brake Disc

4 - 1
CHAS
EAS00512
CHASSIS

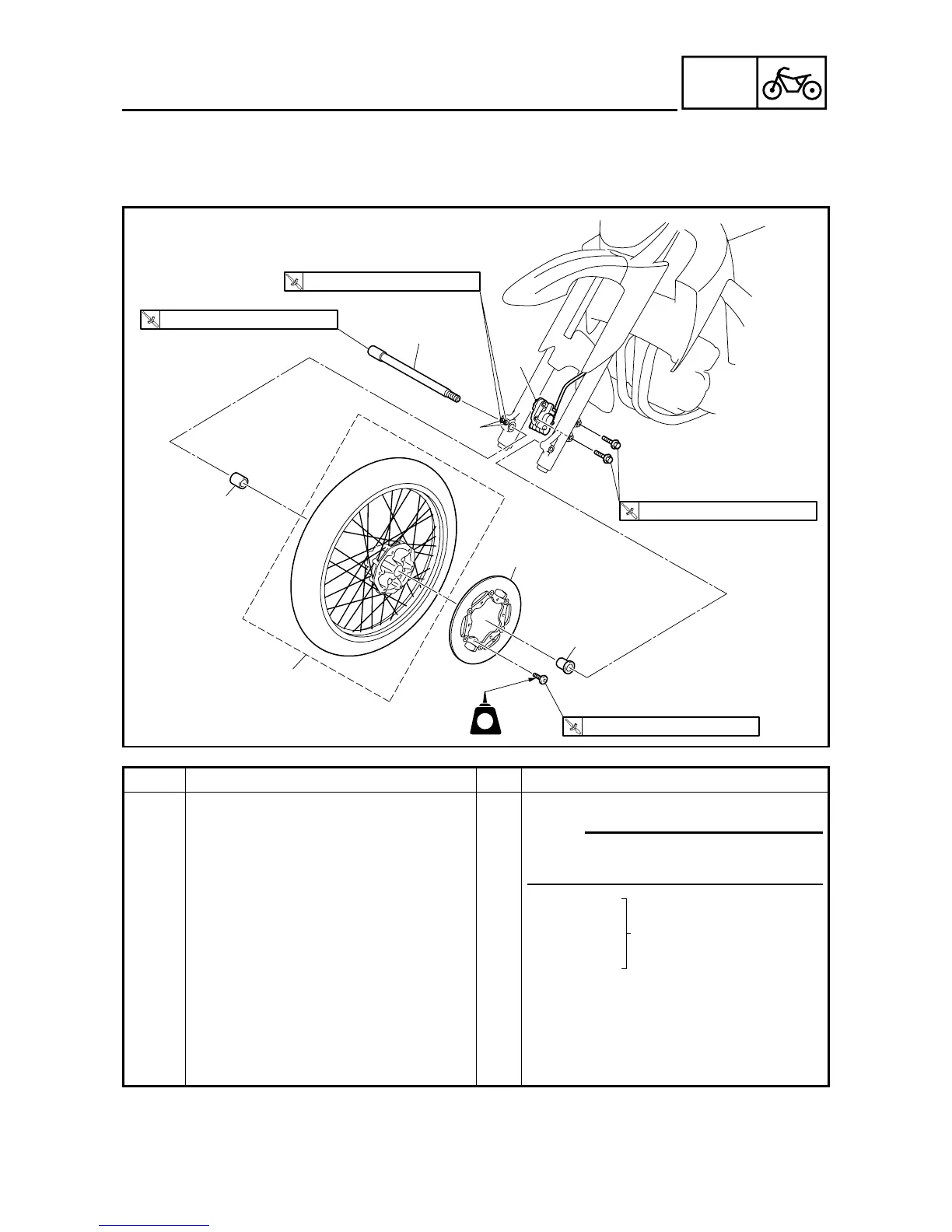

FRONT WHEEL AND BRAKE DISC
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
59 Nm (5.9 m
•
kg, 43 ft
•
Ib)
LT
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
6
4
7
5
1
2
3
(6)
Order Job/Part Q’ty Remarks
Removing the front wheel and brake
disc
Remove the parts in the order listed.
NOTE:
_
Place the motorcycle on a suitable stand
so that the front wheel is elevated.
1 Brake caliper 1
Refer to “REMOVING
THE FRONT WHEEL” and
“INSTALLING THE
FRONT WHEEL”.
2 Wheel axle pinch bolt 2 Loosen.
3 Front wheel axle 1
4 Front wheel 1
5 Spacer (left) 1
6 Spacer (right) 1
7 Front brake disc 1
For installation, reverse the removal pro-
cedure.
FRONT WHEEL AND BRAKE DISC
