6 - 5
COOL
THERMOSTAT
EAS00460
THERMOSTAT
LS
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
New
New
6
5
4
2
8
7
1
3
New

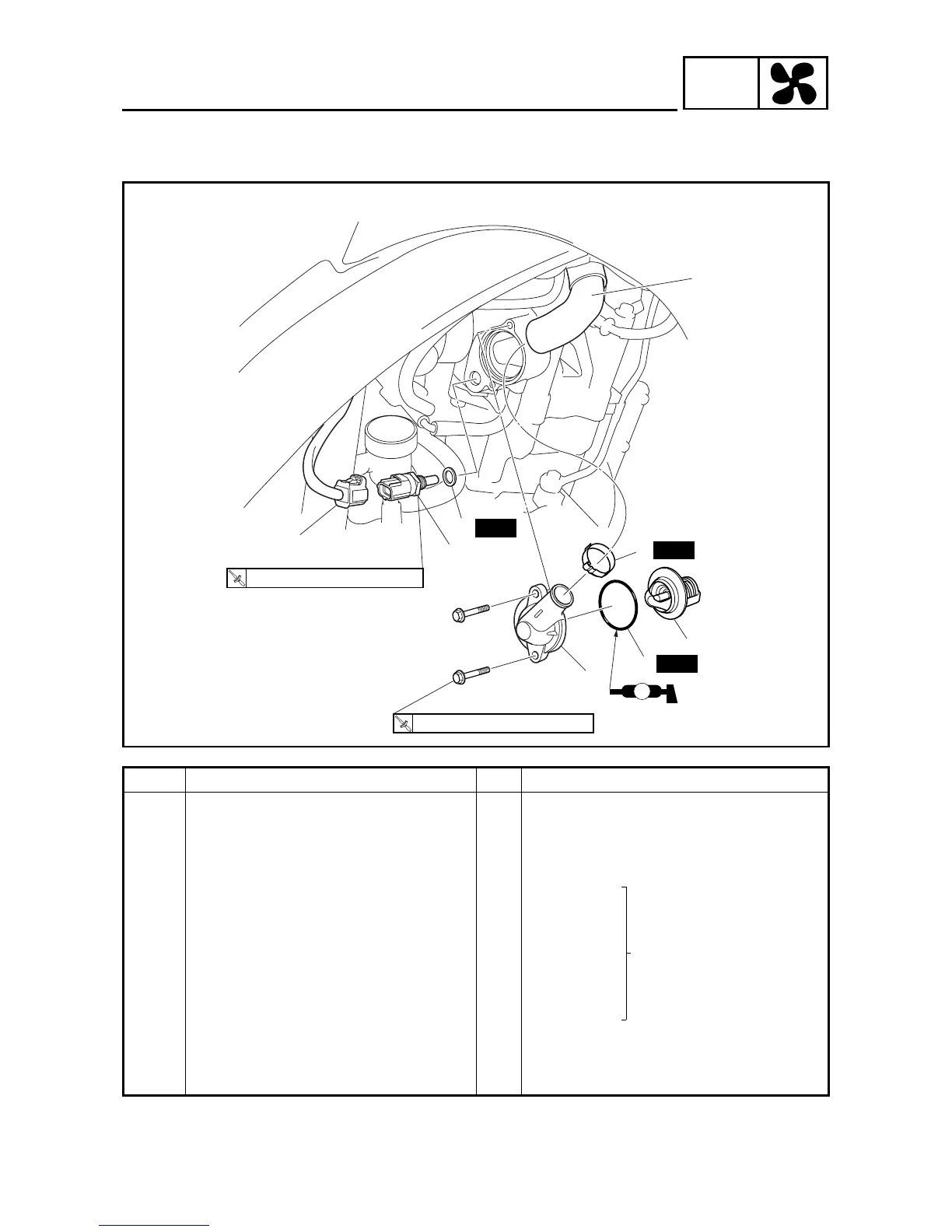

Order Job/Part Q’ty Remarks
Removing the thermostat
Remove the parts in the order listed.
Coolant Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
1 Coolant temperature sensor coupler 1
Refer to “INSTALLING
THE THERMOSTAT”.
2 Hose clamp 1
3 Radiator inlet hose 1 Disconnect.
4 Thermostat cover 1
5 O-ring 1
6 Thermostat 1
7 Coolant temperature sensor 1
8 Copper washer 1
For installation, reverse the removal pro-
cedure.
To Next Page
