Yamaha XT660X - Oil Pump

5 - 50
ENG

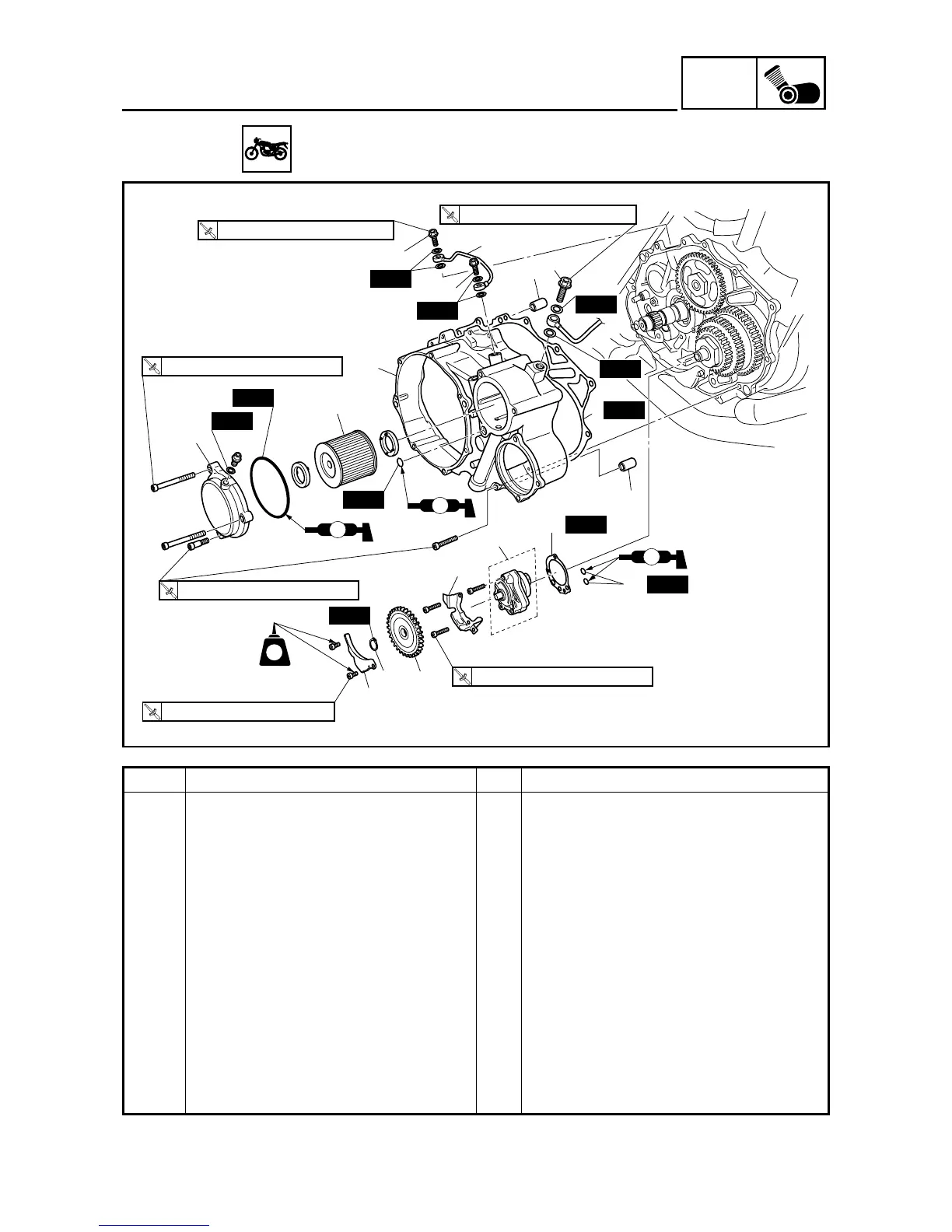

OIL PUMP
OIL PUMP
New
New
New
New
New
New
LT
LS
LS
New
New
New
LS
New
New
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
T
R
.
.
20 Nm (2.0 m
•
kg, 14 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
4
3
5
7
7
6
8
10
9
11
12
(9)
13
1
2
3
3
14
Order Job/Part Q’ty Remarks
Removing the oil pump
Remove the parts in the order listed.
Engine oil Drain.
Refer to “CHECKING AND CHANGING
THE ENGINE OIL” in chapter 3.
Coolant Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
Water pump assembly Refer to “WATER PUMP” in chapter 6.
Clutch cable holder/clutch housing Refer to “CLUTCH”.
Right footrest/brake pedal assembly Refer to “SWINGARM AND DRIVE
CHAIN” in chapter 4.
1 Oil filter element cover 1
2 Oil filter element 1
3 Union bolt 3
4 Oil delivery pipe 2 1
