Yamaha XT660X Service Manual

4 - 39
CHAS

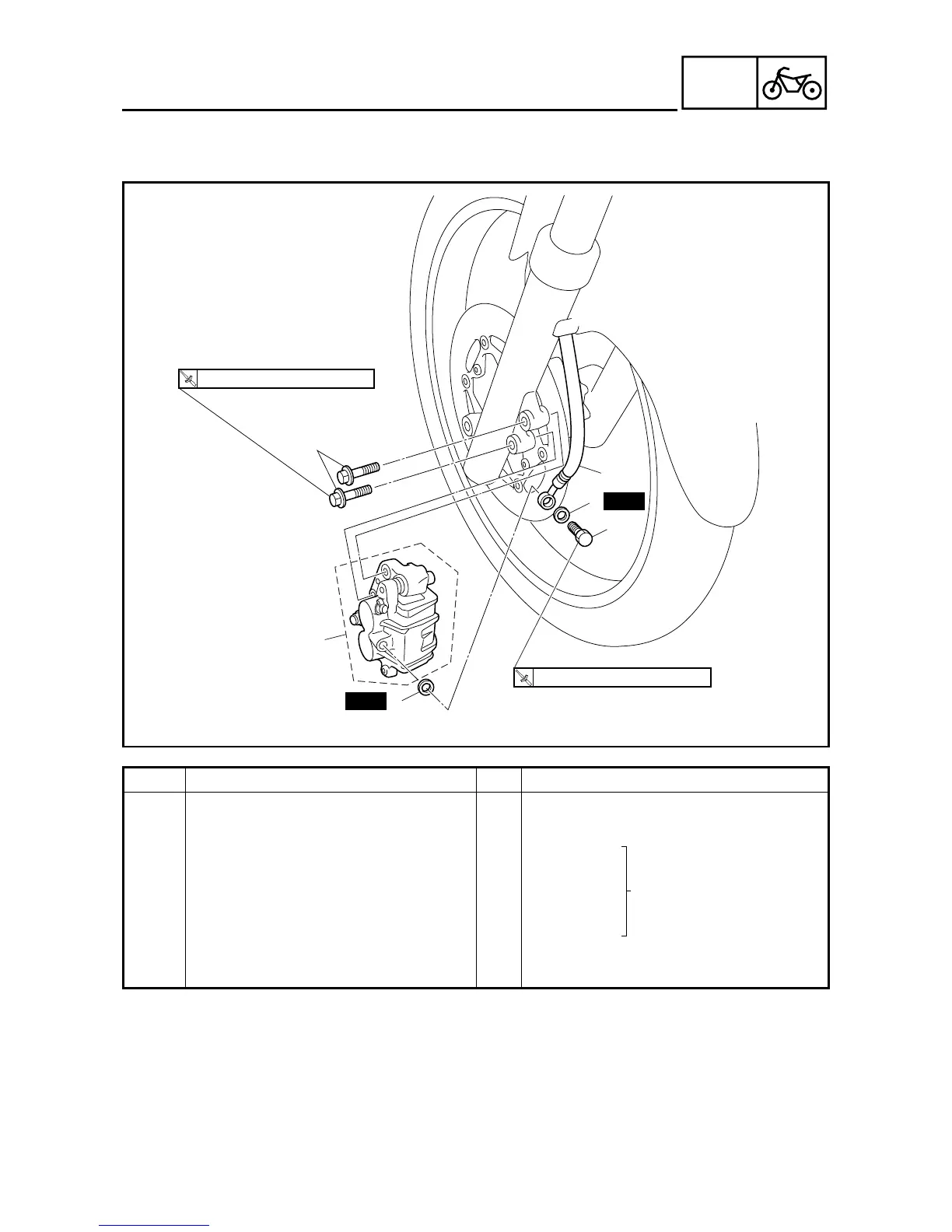

FRONT AND REAR BRAKES
EAS00612
FRONT BRAKE CALIPER (XT660R)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
New
New
5
3
1
2
4
2
Order Job/Part Q’ty Remarks
Removing the front brake caliper
Remove the parts in the order listed.
Brake fluid Drain.
1 Union bolt 1
Refer to “INSTALLING
THE FRONT BRAKE
CALIPER”.
2 Copper washer 2
3 Brake hose 1 Disconnect.
4 Front brake caliper bolt 2
5 Brake caliper 1
For installation, reverse the removal pro-
cedure.

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
