Yamaha XT660X Service Manual

1 - 6
GEN
INFO

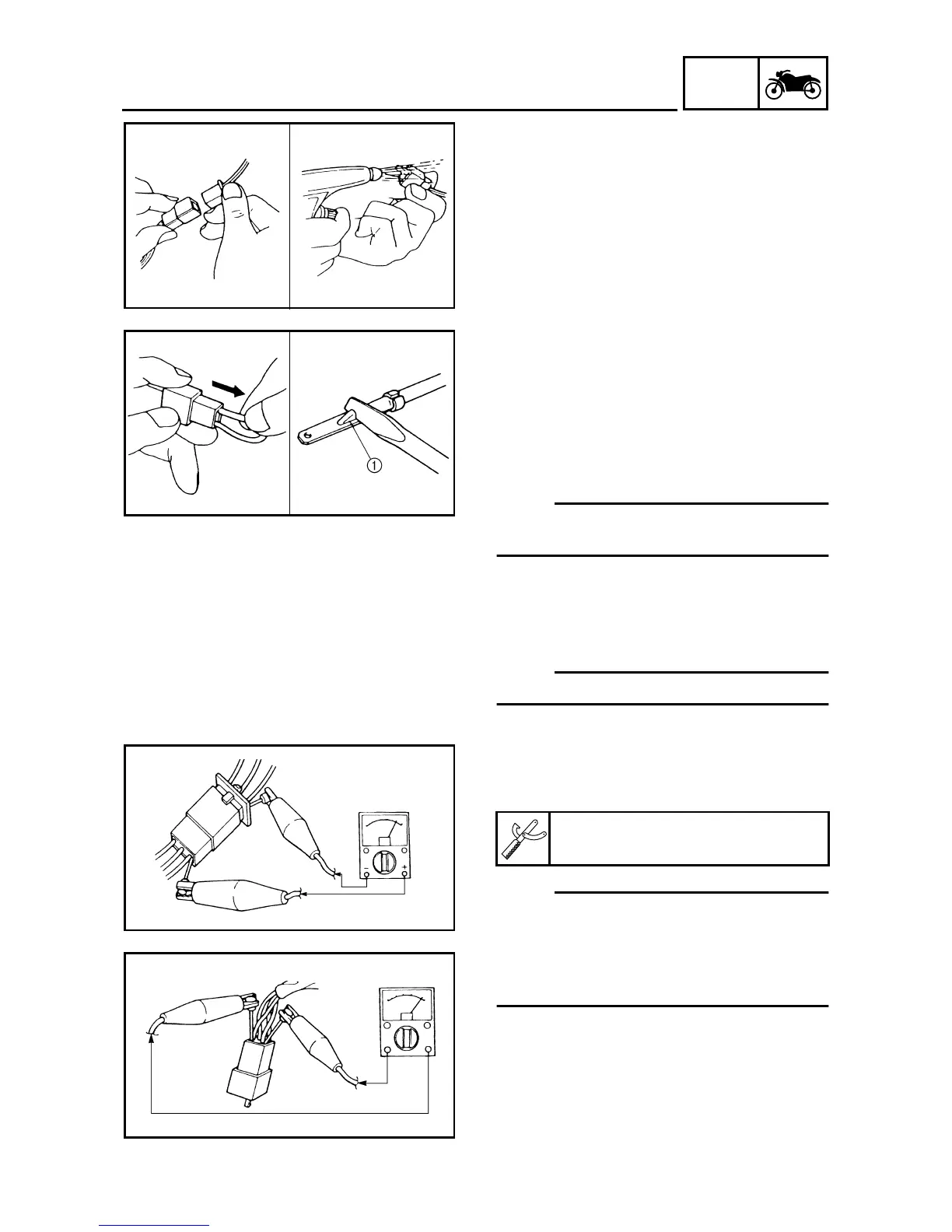

CHECKING THE CONNECTIONS
EAS00026
CHECKING THE CONNECTIONS
Check the leads, couplers, and connectors for
stains, rust, moisture, etc.
1. Disconnect:
• lead
• coupler
• connector
2. Check:
• lead
• coupler
• connector
Moisture
→
Dry with an air blower.
Rust/stains
→
Connect and disconnect sev-
eral times.
3. Check:
• all connections
Loose connection
→
Connect properly.
NOTE:
_
If the pin
1
on the terminal is flattened, bend it
up.
4. Connect:
• lead
• coupler
• connector
NOTE:
_
Make sure all connections are tight.
5. Check:
• continuity
(with the pocket tester)
NOTE:
_
• If there is no continuity, clean the terminals.
• When checking the wire harness, perform
steps (1) to (3).
• As a quick remedy, use a contact revitalizer
available at most part stores.
Pocket tester
90890-03112

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
