Yamaha XT660X - Steering Head; Lower Bracket

4 - 69
CHAS

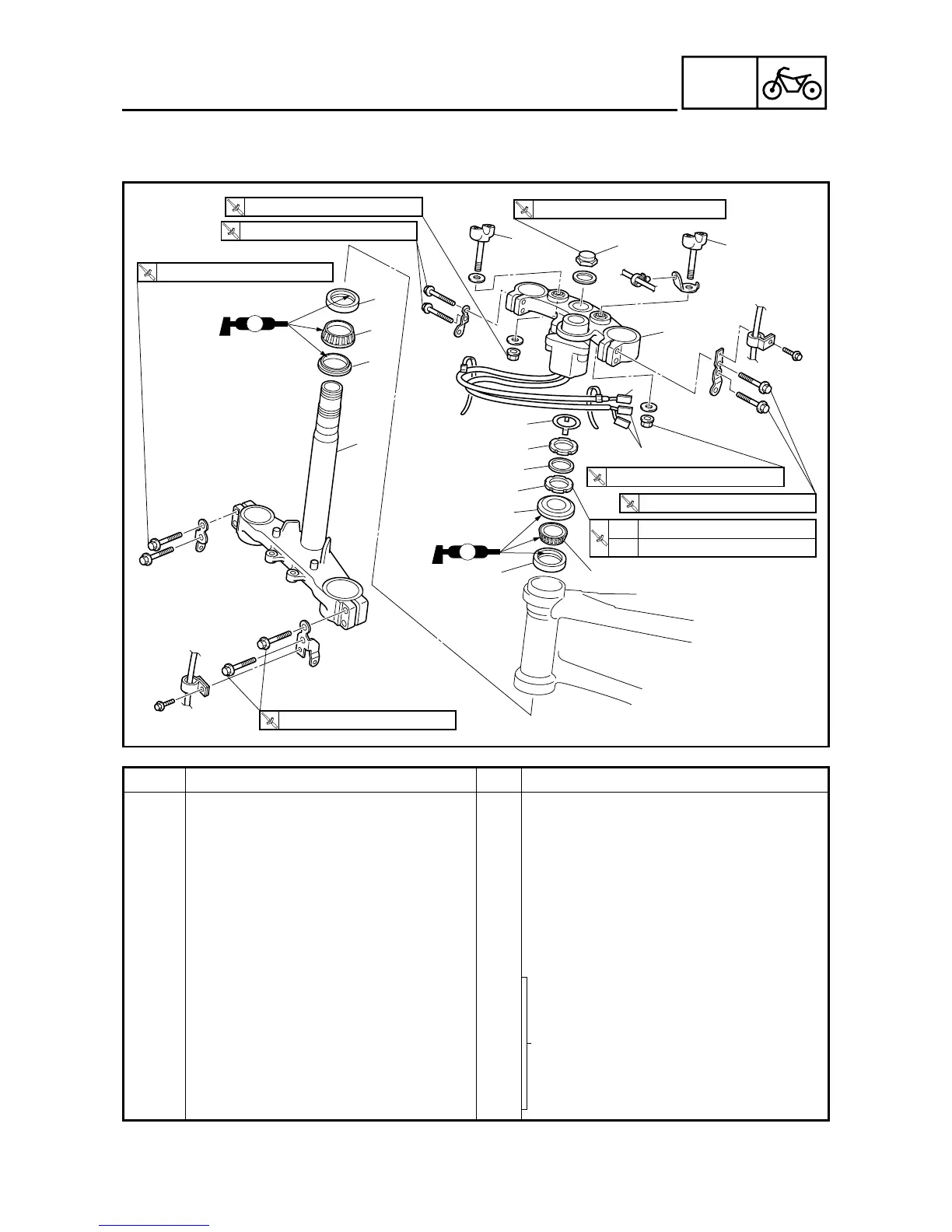

STEERING HEAD
EAS00675
STEERING HEAD
LOWER BRACKET
T
R
.
.
130 Nm (13.0 m
•
kg, 94 ft
•
lb)
T
R
.
.
1st 43 Nm (4.3 m
•
kg, 31 ft
•
lb)
2nd 7 Nm (0.7 m
•
kg, 5.1 ft
•
lb)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
LS
LS
15
13
16
10
14
12
11
9
8
7
6
2
3
5
1
4
1
T
R
.
.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the lower bracket
Remove the parts in the order listed.
Front wheel Refer to “FRONT WHEEL AND BRAKE
DISC”.
Front fork legs Refer to “FRONT FORK”.
Handlebar Refer to “HANDLEBAR”.
1 Lower handlebar holder 2
2 Immobilizer unit coupler 1 Disconnect.
3 Main switch coupler 2 Disconnect.
4 Steering stem nut 1
Refer to “REMOVING THE LOWER
BRACKET” and “INSTALLING THE
STEERING HEAD”.
5 Upper bracket 1
6 Lock washer 1
7 Upper ring nut 1
8 Rubber washer 1
9 Lower ring nut 1
10 Lower bracket 1
