Yamaha XT660X Service Manual

5 - 53
ENG

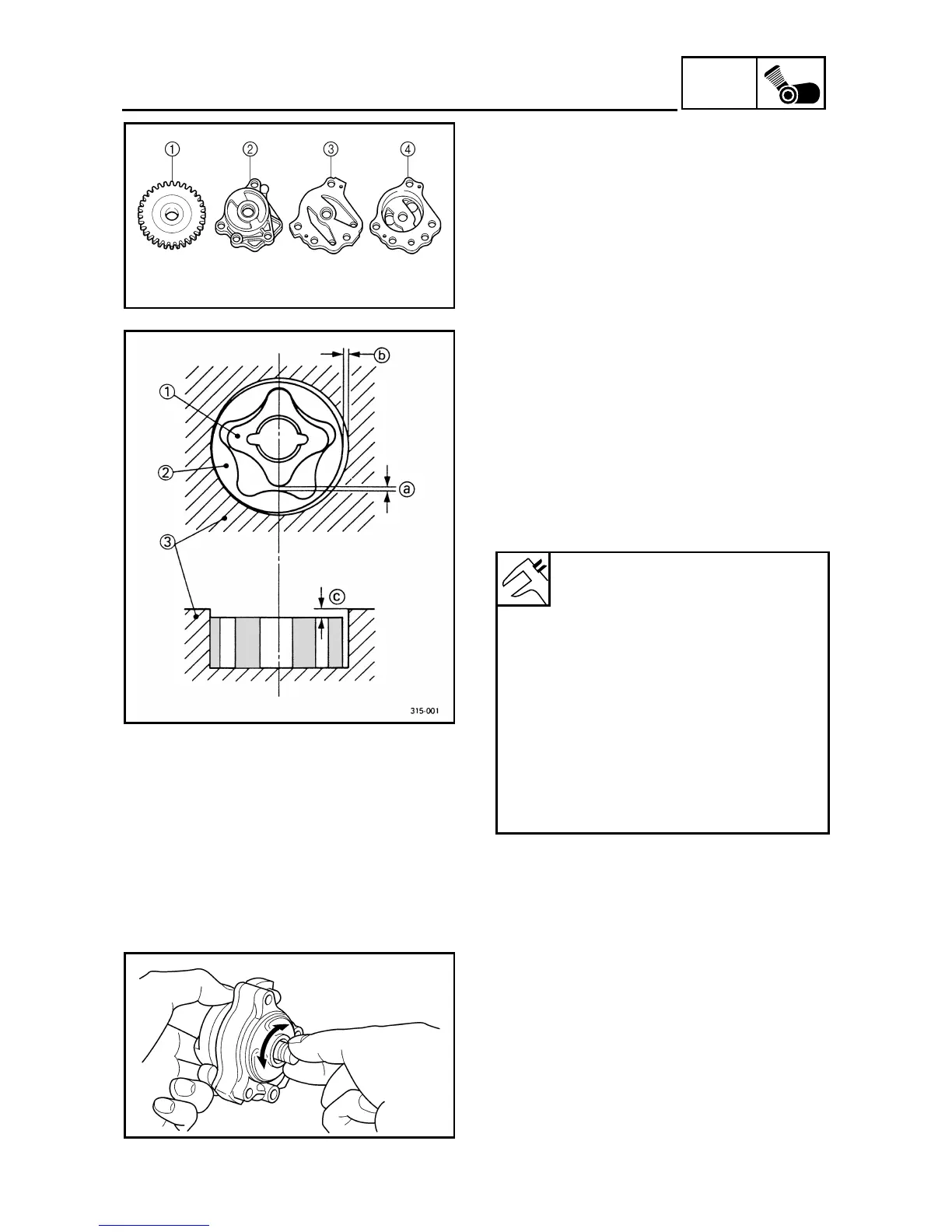

OIL PUMP
EAS00364
CHECKING THE OIL PUMP
1. Check:
• oil pump driven gear
1
• oil pump housing 1
2
• oil pump housing cover
3
• oil pump housing 2
4
Cracks/damage/wear
→
Replace the defec-
tive part(s).
2. Measure:
• inner-rotor-to-outer-rotor-tip clearance
a
• outer-rotor-to-oil-pump-housing clearance
b
• oil-pump-housing-to-inner-rotor-and-outer-
rotor clearance
c
Out of specification
→
Replace the oil
pump.
1
Inner rotor
2
Outer rotor
3
Oil pump housing
Inner-rotor-to-outer-rotor-tip
clearance
0.07 ~ 0.12 mm
(0.0028 ~ 0.0047 in)
<Limit>: 0.2 mm (0.008 in)
Outer-rotor-to-oil-pump-housing
clearance
0.03 ~ 0.08 mm
(0.0012 ~ 0.0031 in)
<Limit>: 0.15 mm (0.0059 in)
Oil-pump-housing-to-inner-rotor-
and-outer-rotor clearance
0.03 ~ 0.08 mm
(0.0012 ~ 0.0031 in)
<Limit>: 0.15 mm (0.0059 in)
3. Check:
• oil pump operation
Rough movement
→
Repeat steps (1) and
(2) or replace the defective part(s).

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
