12 Accessory change by direct coupling
108

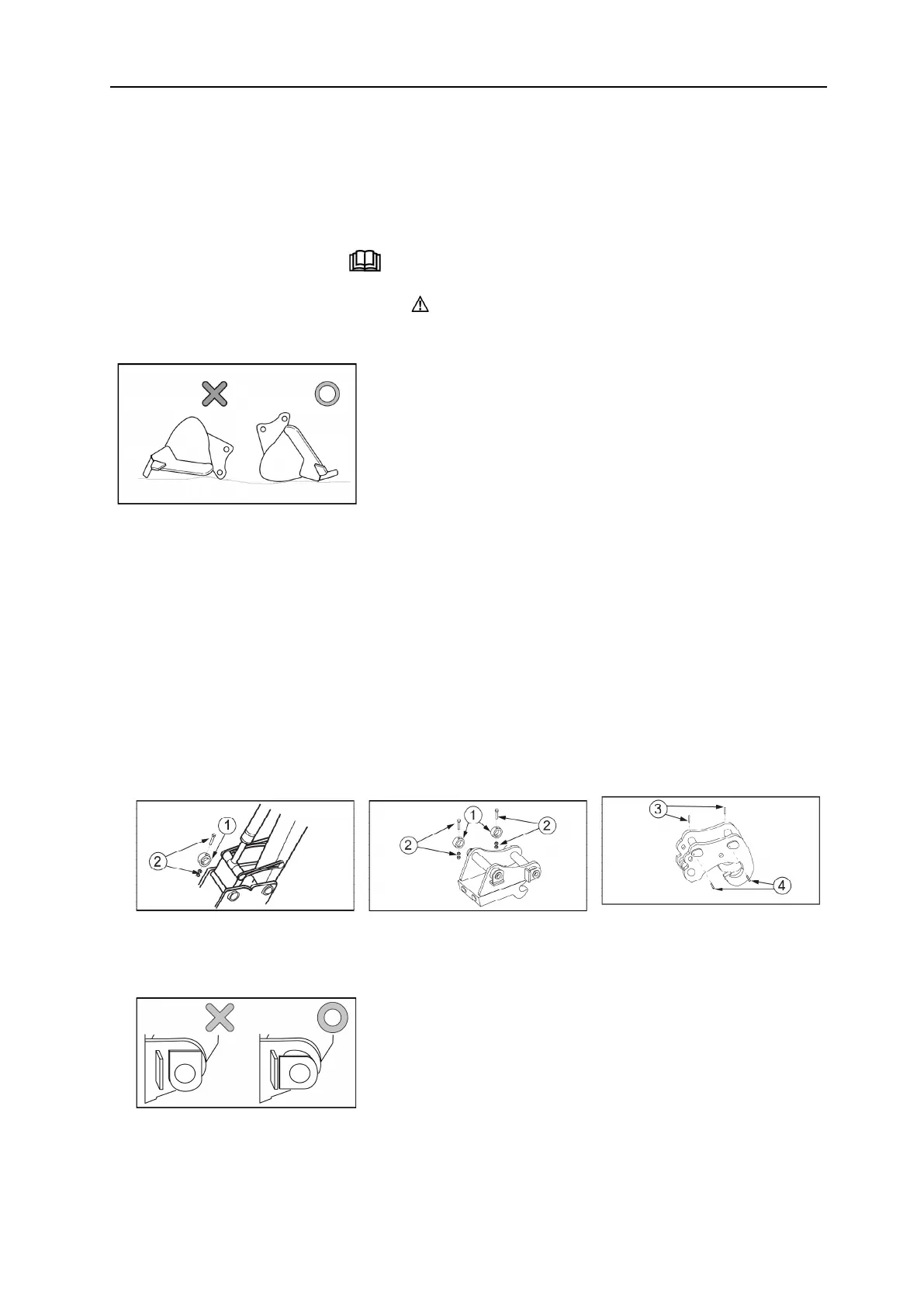

12.2 Mounting the accessory
IMPORTANT
Before using an accessory requiring hydraulic power, check the pressure compatibility
from the machine specifications chart.
1 Specifications, page 163
WARNING
Before mounting a bucket or an accessory on your machine, make sure that:
• the bucket or accessory is compatible with the
capabilities of your machine;
• the bucket or accessory mounting operation is
performed on a level and stable ground;
• the bucket or accessory is properly positioned
to be installed on the machine.
1. Clean and lubricate the bores.
2. Put the o-rings in place.
3. Align the arm bore with the bore A.
Add shims to compensate for play if necessary.
4. Insert the swivel pin into the bore A.
5. Align the pin bore with the bore B.
Add shims to compensate for play if necessary.
6. Insert the swivel pin into the bore B.
7. Install the stop systems depending on the accessory model mounted on the machine.
1 = Rings
2 = Bolts
3 = Pins
4 = Set screw
Note
Make sure to install the swivel pin stops cor-
rectly by positioning them with the flat plane
against the stop.
8. Grease the hinged parts.
