5 Description of the driving position
28

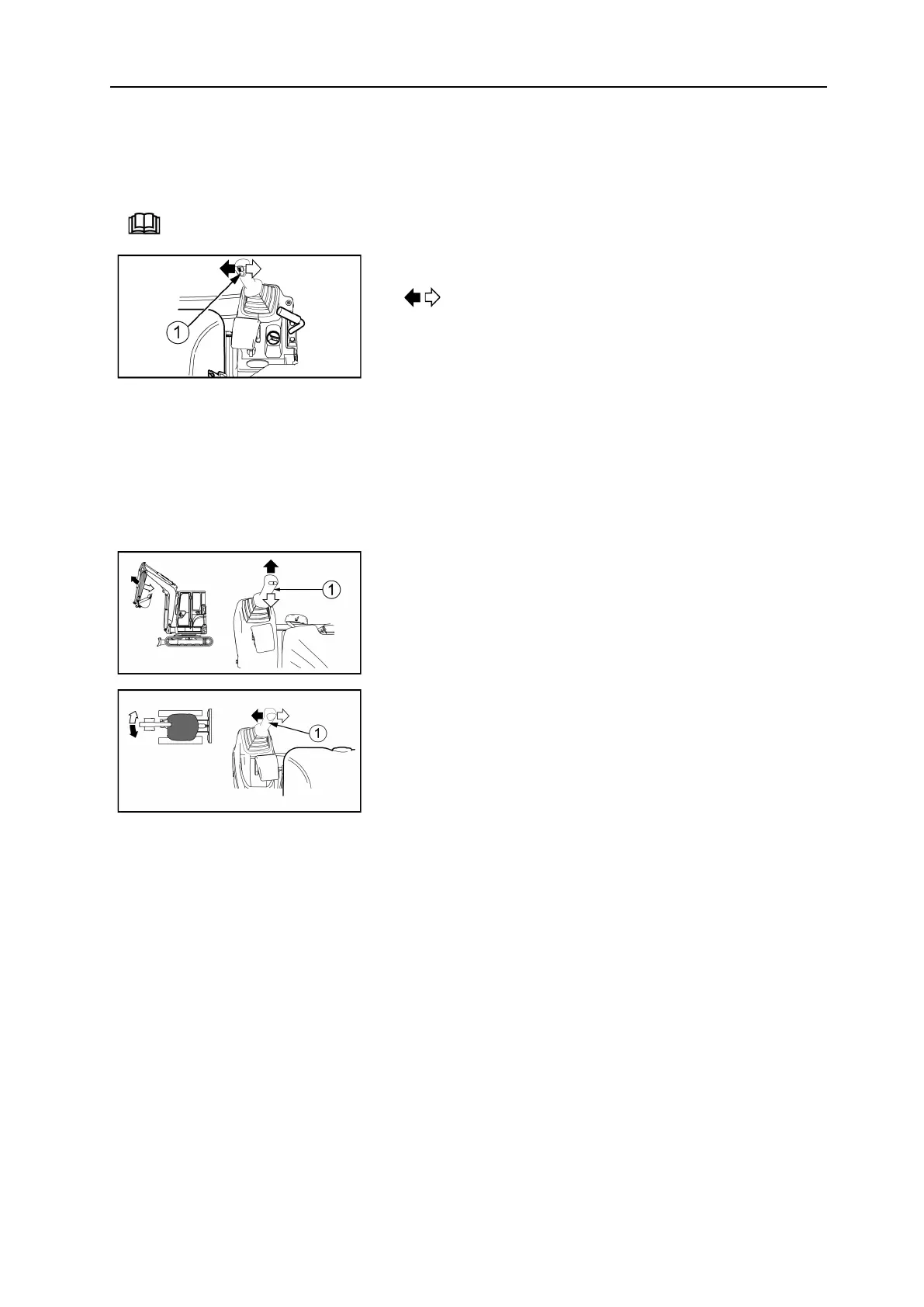

5.3.3 3rd hydraulic circuit control (P.T.O. 1)
P.T.O. switch
• Use the proportional roller to adapt the dual effect P.T.O. rate.
14 Implementing the 3rd hydraulic circuit, page 111
1 = Proportional roller
Dual action accessory (tilt bucket, auger, etc.) : ope-
rate only the proportional roller.
5.3.4 Left command lever
• The left hand joystick is used to control the arm movements and the rotation of the upper
part.
Handling the arm
1 = Left command lever
Rotation of the upper part
1 = Left command lever
• When you release the lever, it returns to neutral position and the respective movements
stop.
• Por the machines with a 4th hydraulic circuit, this is controlld using the switch placed on
the left hand command lever.
