5 Description of the driving position
33
5.6 Seat support cover
This cover gives access to the alternator belt and the engine nameplates.

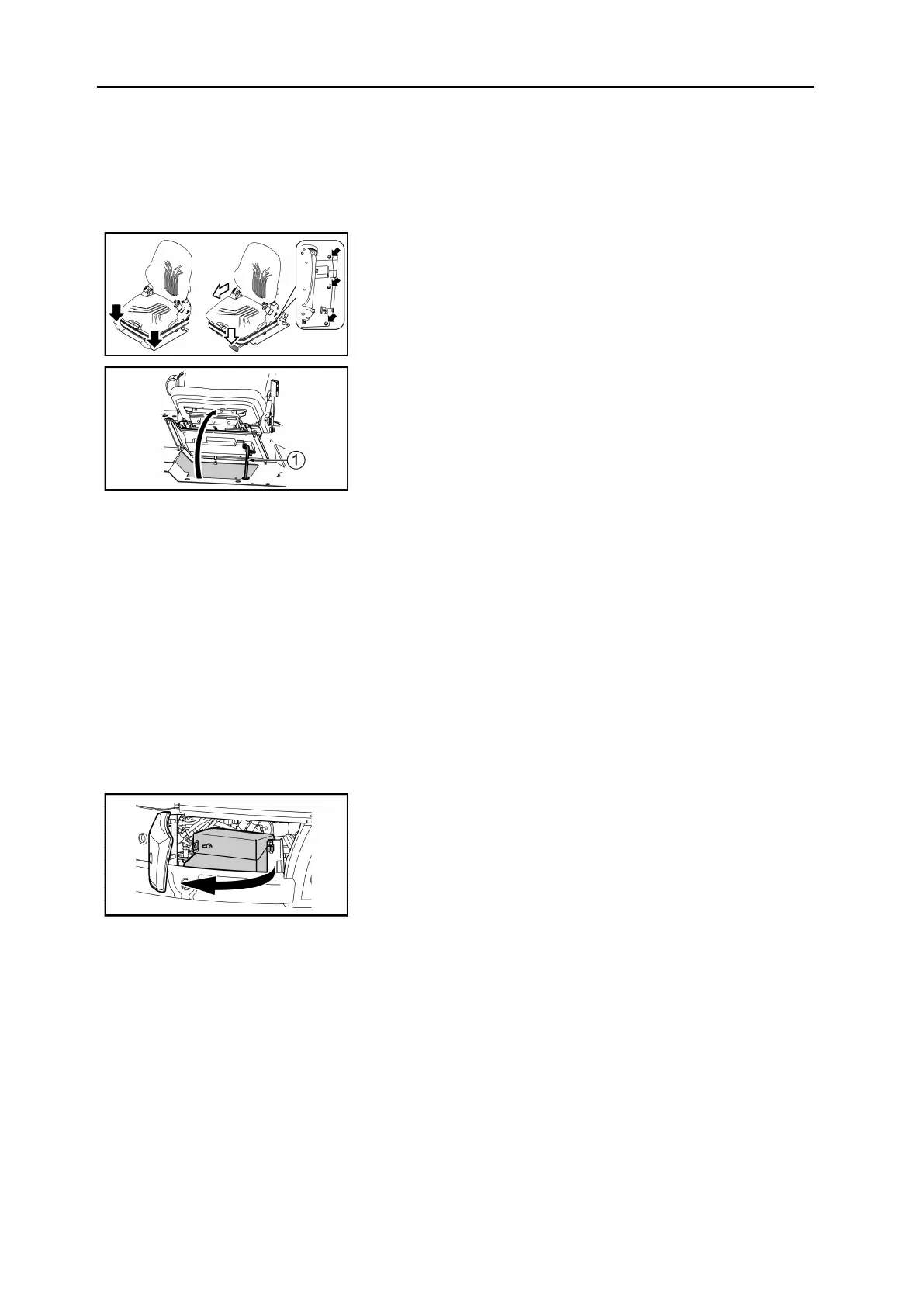

Opening the cover
1 = Rod
1. Loosen the two screws securing the front of the
seat support.
2. Pull the seat lever to move the seat forwards as far
as possible.
3. Remove the three screws securing the rear of the
seat support.
4. Raise the seat via the front, and use the rod to lock
it in the raised position.
Closing the cover
1. Raise the seat slightly to release the rod.
2. Lower the seat.
3. Reinstall the five screws and tighten to secure the seat support.
5.7 Location for the tools and user manual
5.7.1 Toolkit
• The toolkit location is on the left-hand side of the
machine.
• Keep the toolkit in the compartment provided for
the purpose.
