5 Description of the driving position
40

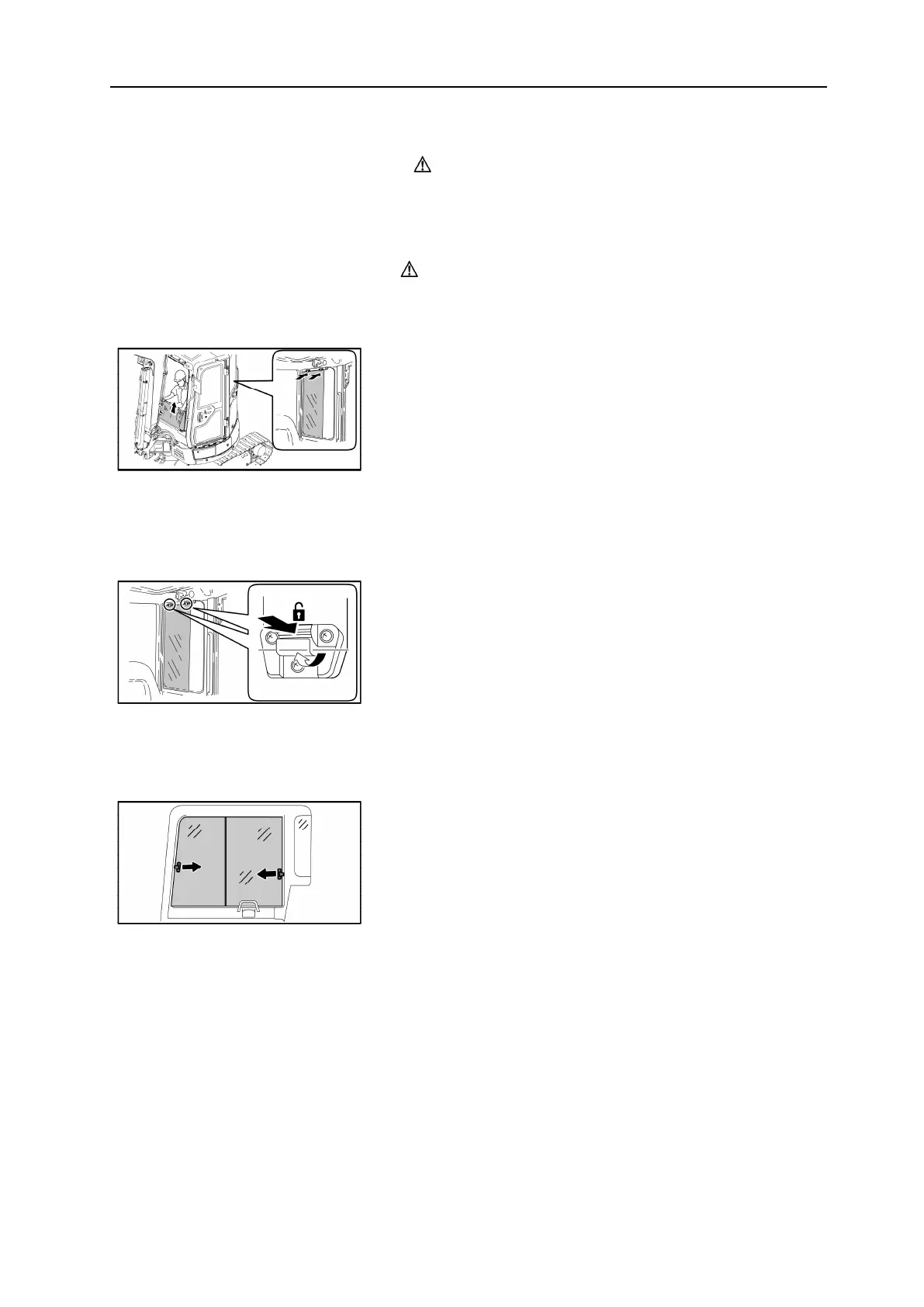

5.10.3 Lower windscreen
CAUTION
Place the locking lever(s) in locked position to avoid any unplanned operation of
the joysticks when handling the windscreen.
Opening of the lower part of the windscreen
IMPORTANT
Open and close the lower part of the windscreen only afte r the upper part has been
housed under the ceiling.
1. Lift the lower part of the windscreen using both
hands.
2. Store it in the compartment provided on the rear
left hand side of the cab.
Note
Immobilise it by inserting it into the safety
mechanisms.
Closure of the lower part of the windscreen
1. Press the upper part of each lock to take the wind-
screen out of its compartment.
2. Put the lower part of the windscreen in its place.
3. Lower the lower windscreen.
5.10.4 Right hand cab window
1. Press the latch.
2. Open the right hand cab window by sliding it in the
direction indicated by the arrows.
