Yanmar ViO38-6 User Manual

44

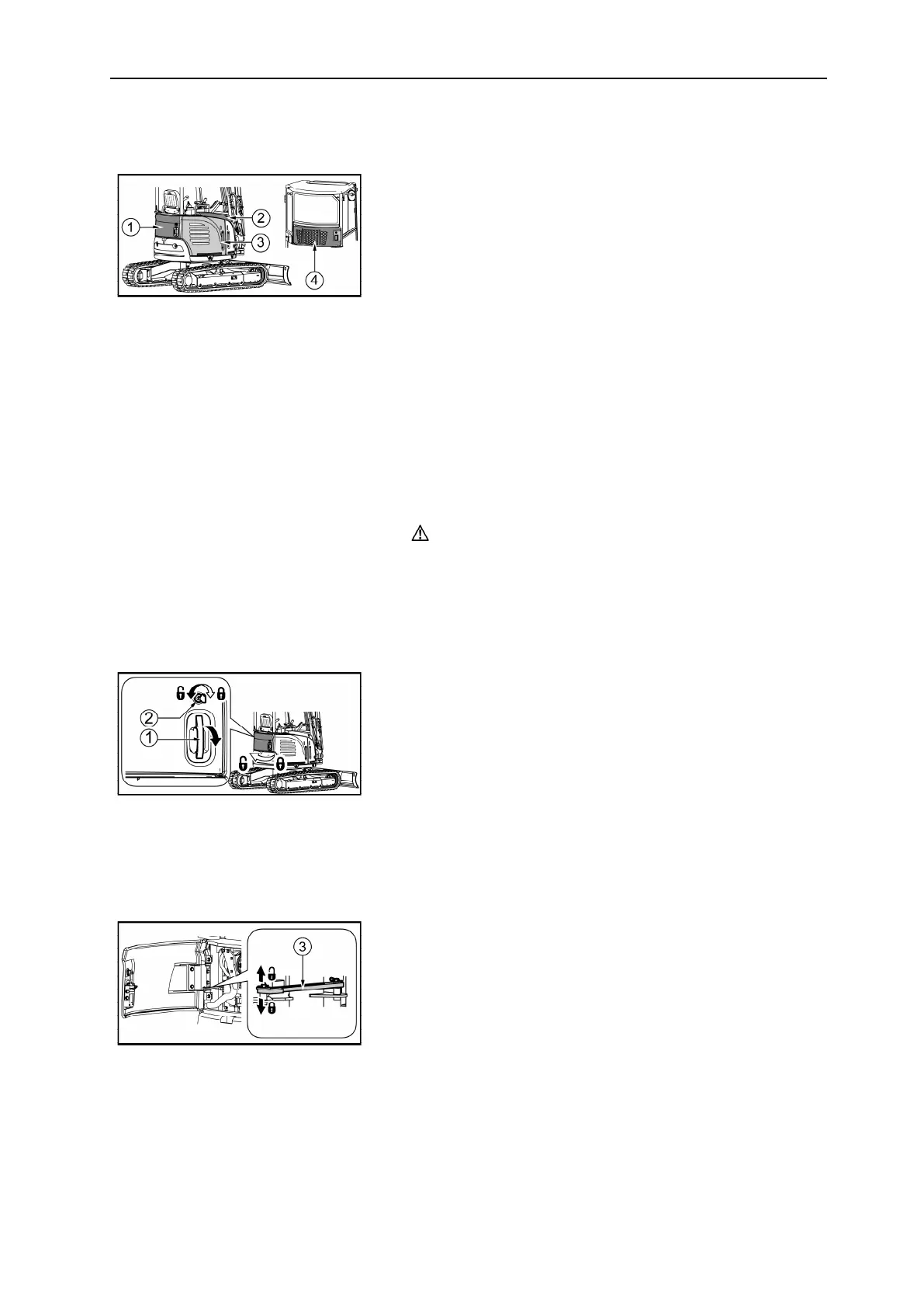

7 COVERS
1 = Bonnet
2 = Cover B
3 = Cover R
4 = Rear cover
7.1 Bonnet
• Under the bonnet you find:
– the expansion flask
– the engine oil gauge
– the engine oil tank orifice
WARNING
Do not open the bonnet during machine operation. Verification and topping up of the va-
rious levels should be done when the engine is stopped and the temperatures are brought
back down.
Opening the cover
1 = Handle
2 = Key
1. Insert the starter key into the lock.
2. Turn the key counterclockwise.
3. Pull the exterior handle to open the bonnet.
Closing the cover
3 = Rod
1. Lift the the rod to release it.
2. Close the cover.
3. Press on it until you hear a click.
4. Turn the key clockwise to activate the lock.

Yanmar ViO38-6 Specifications

General

Operating Weight	3860 kg / 8510 lb
Max Digging Depth	3480 mm / 11.4 ft
Engine Power	24.4 hp
Engine Net Power	24.8 kW (33.2 hp)
Digging Force, Bucket	30.3 kN
Max Reach at Ground Level	6, 320 mm
Travel Speed	4.5 km/h
