9 Options
56
9.6.2 Mechanical quick hitch CSERI

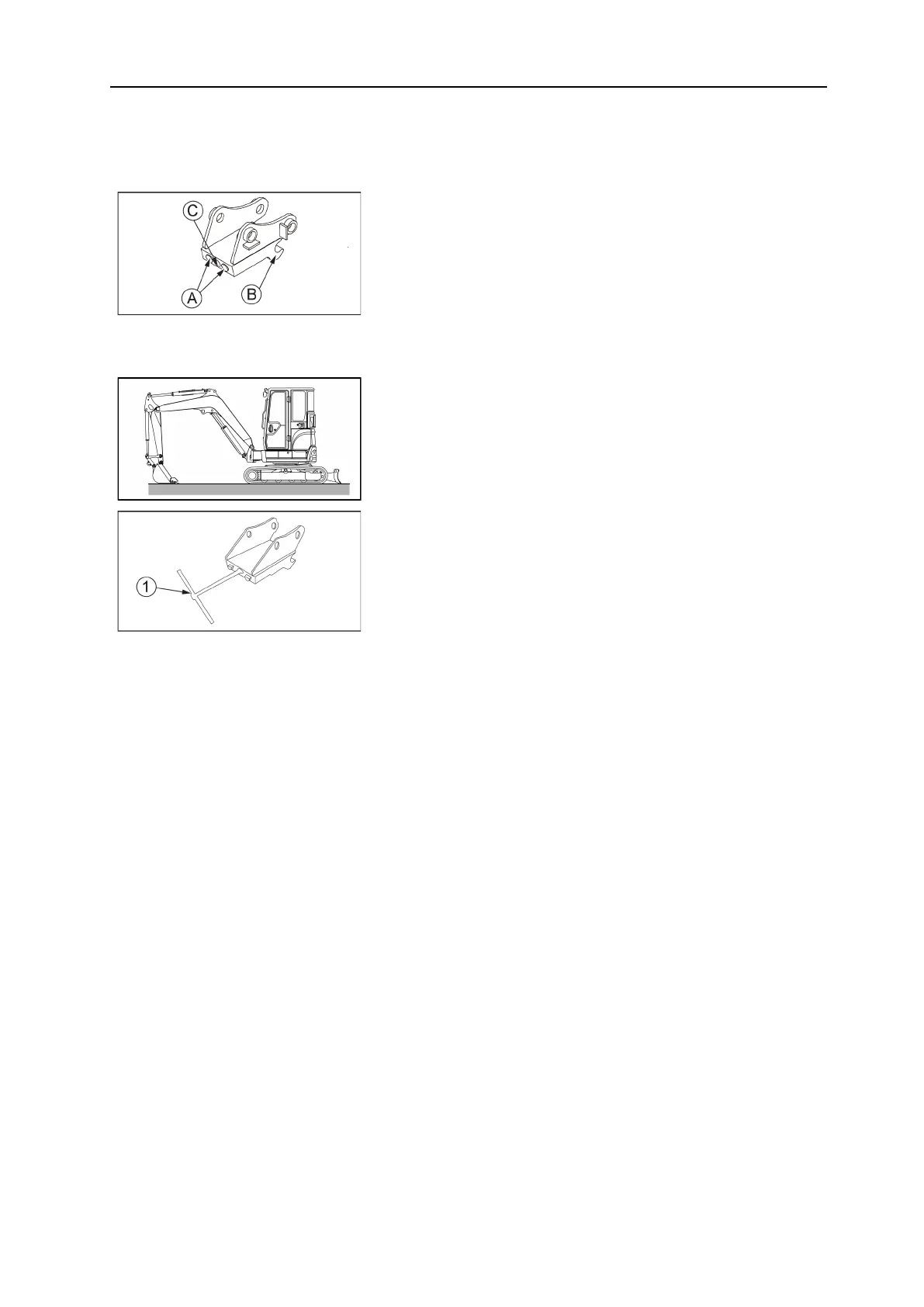

Quick hitch structure
The quick hitch system is composed of:
A = Locking pins
B = Fastening hooks
C = Locking screw
Dismantling the accessory
1. Park the machine preferably on a stable, flat and
level surface.
2. Place the accessory on the ground.
3. Be equipped with the wrench supplied with the ac-
cessory and insert it into the quick hitch hole.
4. Turn the key (1) to disengage the bucket or acces-
sory locking pin.
5. Remove the key and store it.
6. Retract the bucket cylinder to disengage the rear
of quick hitch.
7. Slowly remove the boom from the machine to
completely free the quick hitch from the bucket or
accessory.
Mounting the accessory
1. Place the accessory on a stable, flat surface.
2. Clean all the parts.
Note
Make sure the locking pins are retracted into the quick hitch.
If the pins are in the extended position:
a. Be equipped with the wrench supplied with the accessory and insert it into the
quick hitch hole.
b. Turn the key (1) to disengage the bucket or accessory locking pin.
c. Remove the key and store it.
3. Place the arm equipped with the quick hitch on the accessory to engage the accessory hooks
on the bucket or accessory pin.
4. Rotate the quick hitch slowly lifting the boom to fully engage the quick hitch to the bucket
or accessory.
5. Manoeuvre the bucket or accessory to low height from the ground to see if it is locked in
the quick hitch.
