9 Options
51
9.3.1 Lifting ring
An appropriate ring is required to suspend a load with the machine. For more details,
contact your dealer.
The lifting ring welded to the tie rod must be installed with safety valves.
IMPORTANT
This kit can be supplied without the push rod with eye bolt if the machine is equipped
with an accessory that has a lifting device.
Check whether the ring and the ring mounting base are damaged. If you detect any damage,
ask your dealer to intervene.
This option is subject to periodic inspection.
IMPORTANT
Install a device that can oppose the accidental release of the load on the machine's lifting
ring (with latch hook, shackle, eye...) and whose WLL
1
is equal to or greater than the load
to be lifted.
9.3.2 Safety valves
The safety valves must be installed with the ring. These flaps are installed on the machine's
boom, rocker arm and blade cylinders to avoid the equipment falling to the ground if the hoses
break.

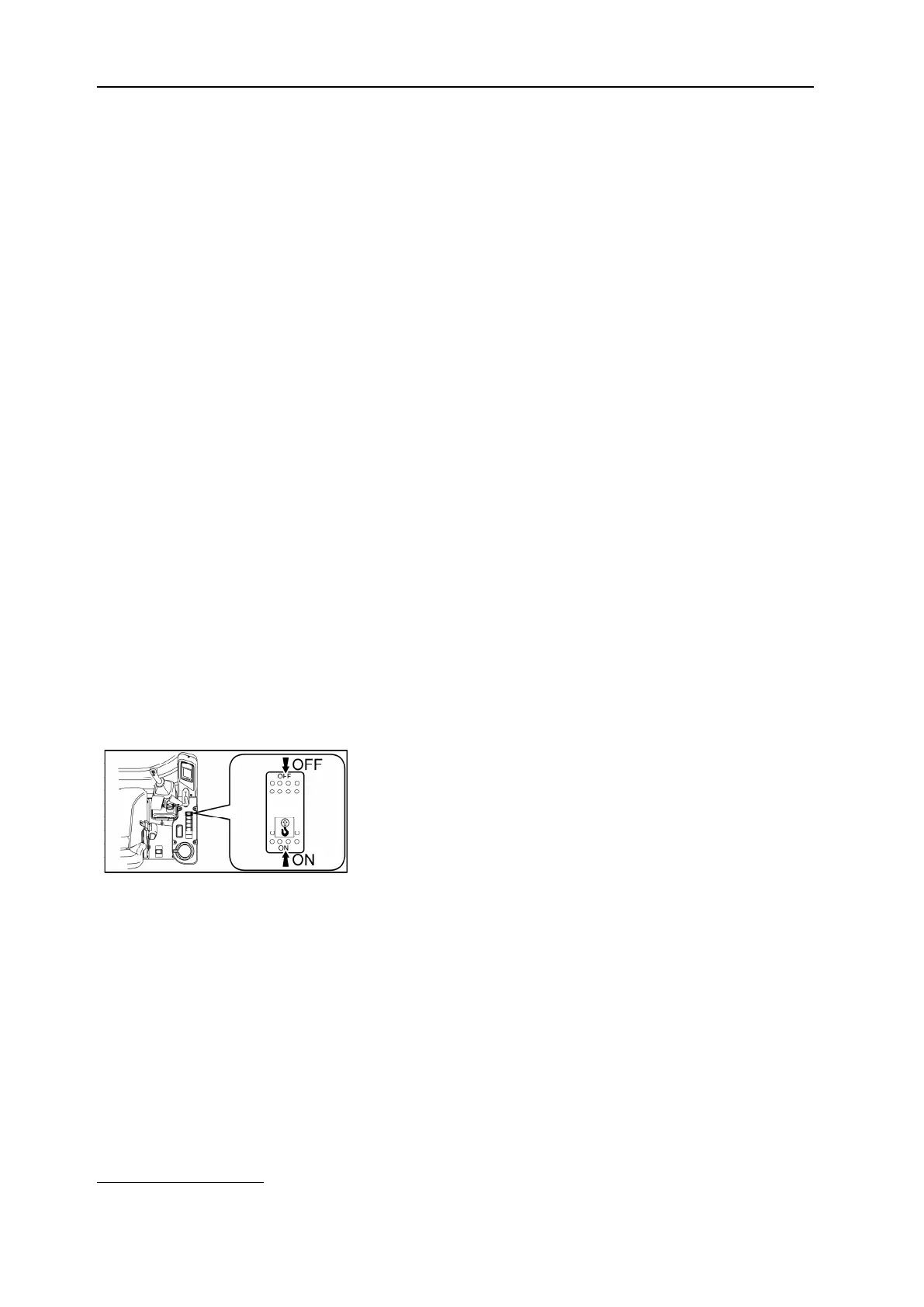

9.3.3 Overload switch
When the operator wishes to perform handling, it
is essential for the overload switch to be in the ON
position, for the purpose of informing the operator of
the tipping points according to the load being hand-
led and the position of the equipment.
An audible signal warns the operator that the load
that he is handling is too heavy and could well topple
the vehicle.
When the audible signal sounds, the operator must
promptly put the load being handled down on the
ground because it could well topple the vehicle.
1. Working Load Limit (WLL)
