7.2 Cover B
• Under cover B are:
– the cooling fluid tank filling hole
– the fuel tank
– the hydraulic oil tank opening cap

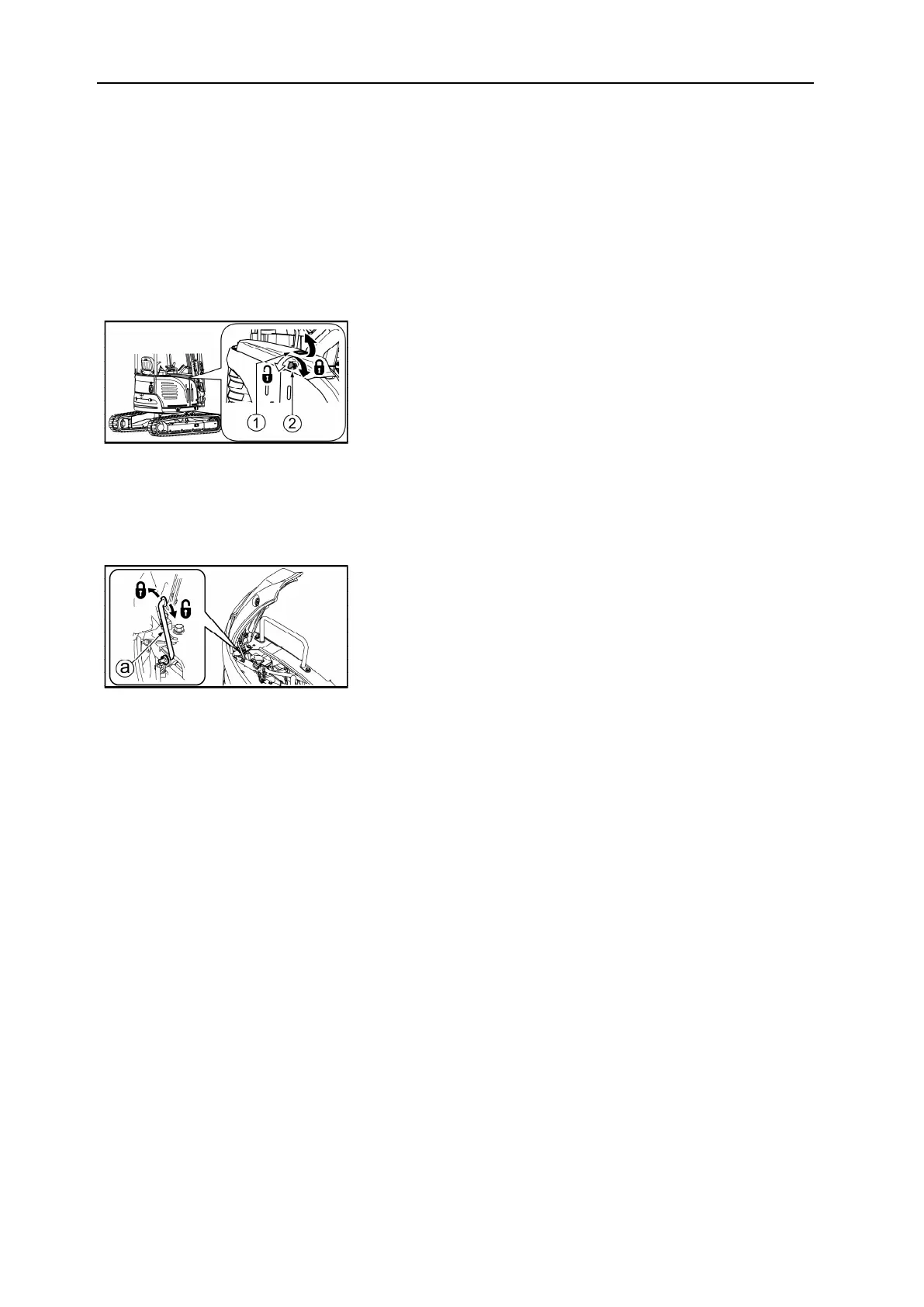

Opening the cover
1 = Exterior handle
2 = Key
1. Insert the starter key into the lock.
2. Turn the key counterclockwise.
3. Pull the exterior handle to open the bonnet.
4. Lock the cover using the rod.
Closing the cover
a = Rod
1. Lift the cover slightly and press the rod to release
it.
2. Close the cover.
3. Press on it until you hear a click.
4. Turn the key clockwise to activate the lock.
