Removing and Attaching the Protection Cover
1-17
Removing and Attaching the Protection Cover
Inverters of 18.5 kW or less have protection covers on the top and bottom as shown in Fig. 1.4.Always
remove the protection covers before installing an Inverter of 18.5 kW or less in a panel. Use the following
procedure to remove and attach a protection cover.
îš‹ Removing the Protection Cover
îš„Top Protection Cover
Insert the tip of the straightedge screwdriver in the slot. Then, lift the cover up in the direction shown by the
arrow to remove it.

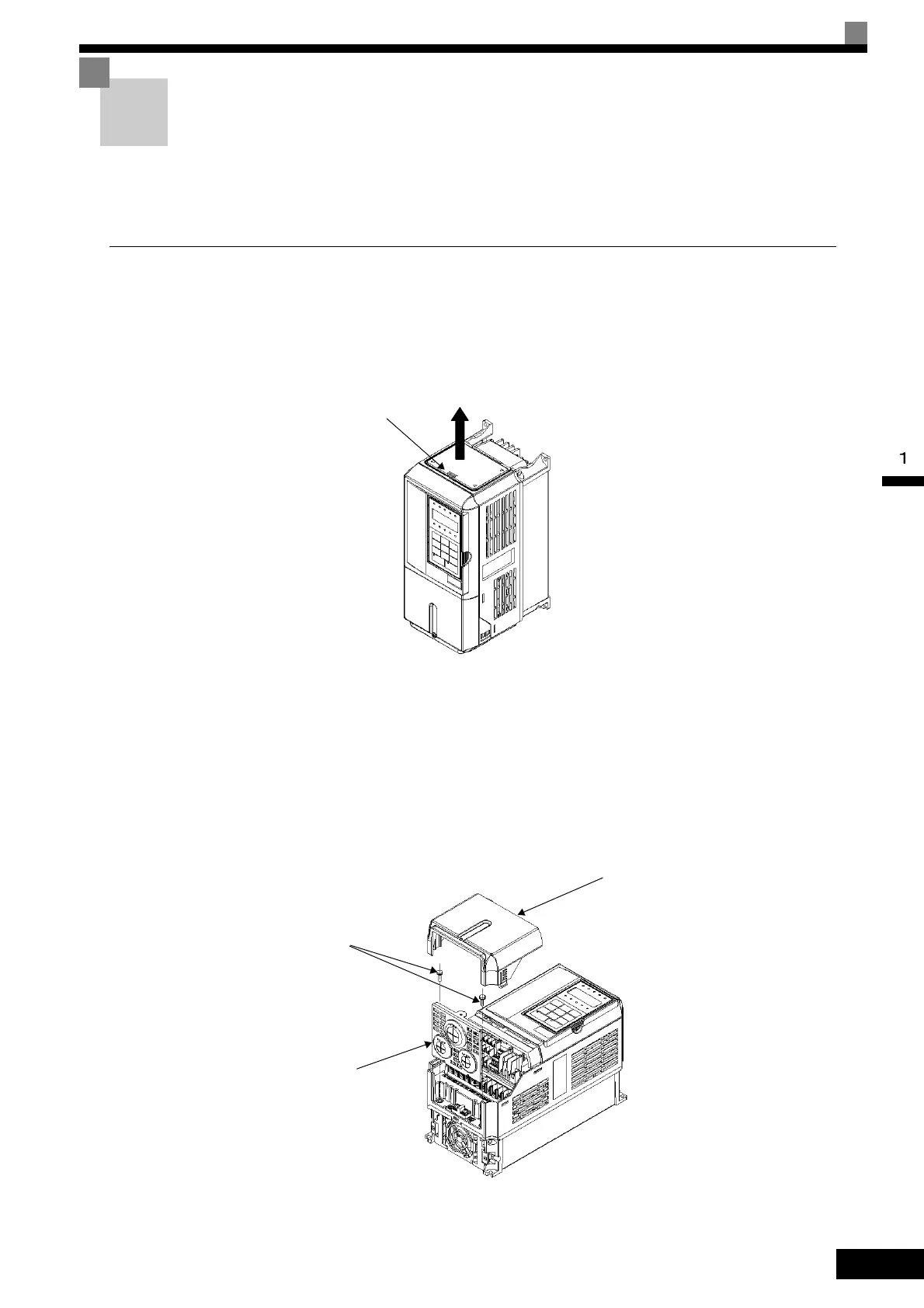

Fig 1.15 Removing the Top Protection Cover (Model CIMR-F7A45P5 Shown Above)
îš„Bottom Protection Cover
1. Remove the terminal cover as described on Page 1-12.
2. Loosen the two screws, and remove the protection cover.
3. Return the screws to their original position and tighten (them).
4. Reattach the terminal cover as described on Page 1-12.
Fig 1.16 Removing the Bottom Protection Cover (Model CIMR-F7A45P5 Shown Above)
Slot
Terminal Cover
Screws
Bottom Protection
Cover
