3-6
îš‹ Drive Mode
Drive mode is the mode in which the Inverter can be operated. The following monitor displays are possible in
drive mode: The frequency reference, output frequency, output current, and output voltage, as well as fault
information and the fault history.
When b1-01 (Reference selection) is set to 0, the frequency can be changed from the frequency setting display.
Use the Increment, Decrement, and Shift/RESET Keys to change the frequency. The user constant will be
written and the monitor display will be returned to when the DATA/ENTER Key is pressed after changing the
setting.
îš„Example Operations
Key operations in drive mode are shown in the following figure.

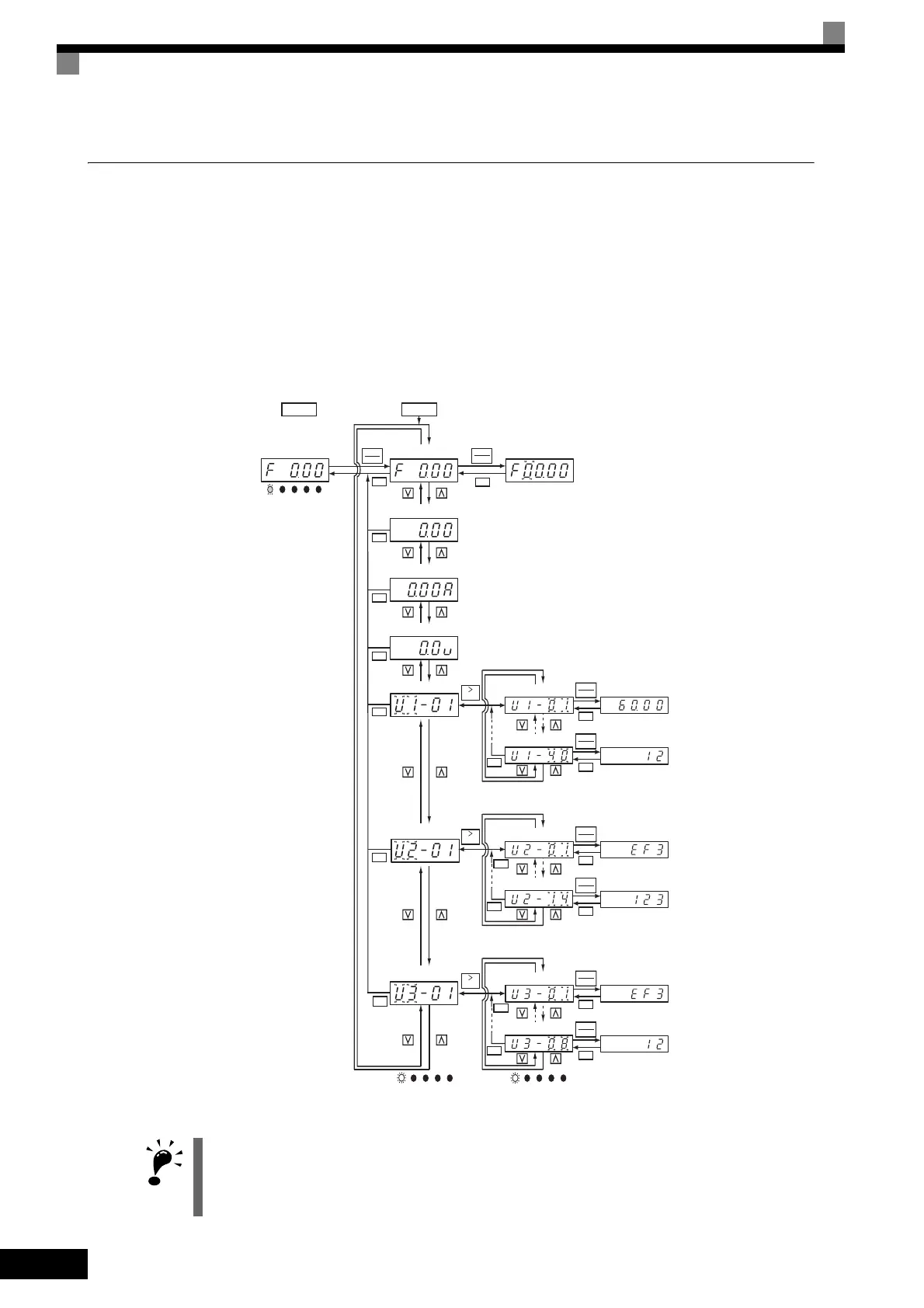

Fig 3.4 Operations in Drive Mode
IMPORTANT
The display for the first monitor constant (frequency reference) will be displayed when power is turned ON.
The monitor item displayed at startup can be set in o1-02 (Monitor Selection after Power Up).
Operation cannot be started from the mode selection display.
Mode Selection Display Monitor Constant Display
Power ONMENU
Drive Mode
DRIVE QUICK
VERIFY
A.TUNEADV
Detailed Monitor Constant
Display
Monitor Display
DATA
ENTER
DATA
ENTER
ESC
ESC
Status Monitor
Error Trace
Fault History
ESC
Frequency reference
RESET
Fan operating time
DATA
ENTER
DATA
ENTER
ESC
ESC
ESC
RESET
DATA
ENTER
DATA
ENTER
ESC
ESC
ESC
RESET
DATA
ENTER
DATA
ENTER
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
Current error
Operating time at error
1st previous error
ESC
ESC
Frequency reference
Frequency reference setting/
display unit o1-03
Output frequency
Output current
Monitor setting for o1-01
VERIFY
A.TUNEADVDRIVE QUICK
VERIFY
A.TUNEADV
DRIVE QUICK
Operating time at 4th
previous error
To Next Page
