6-160
îš‹ Using Digital Output Boards
There are two types of Inverter digital output boards:
• DO-02C
Relay contact output (DPDT contact)
• DO-08
6 photocoupler output channels (shared commons)
2 (independent) relay contact output channels (NC contact)

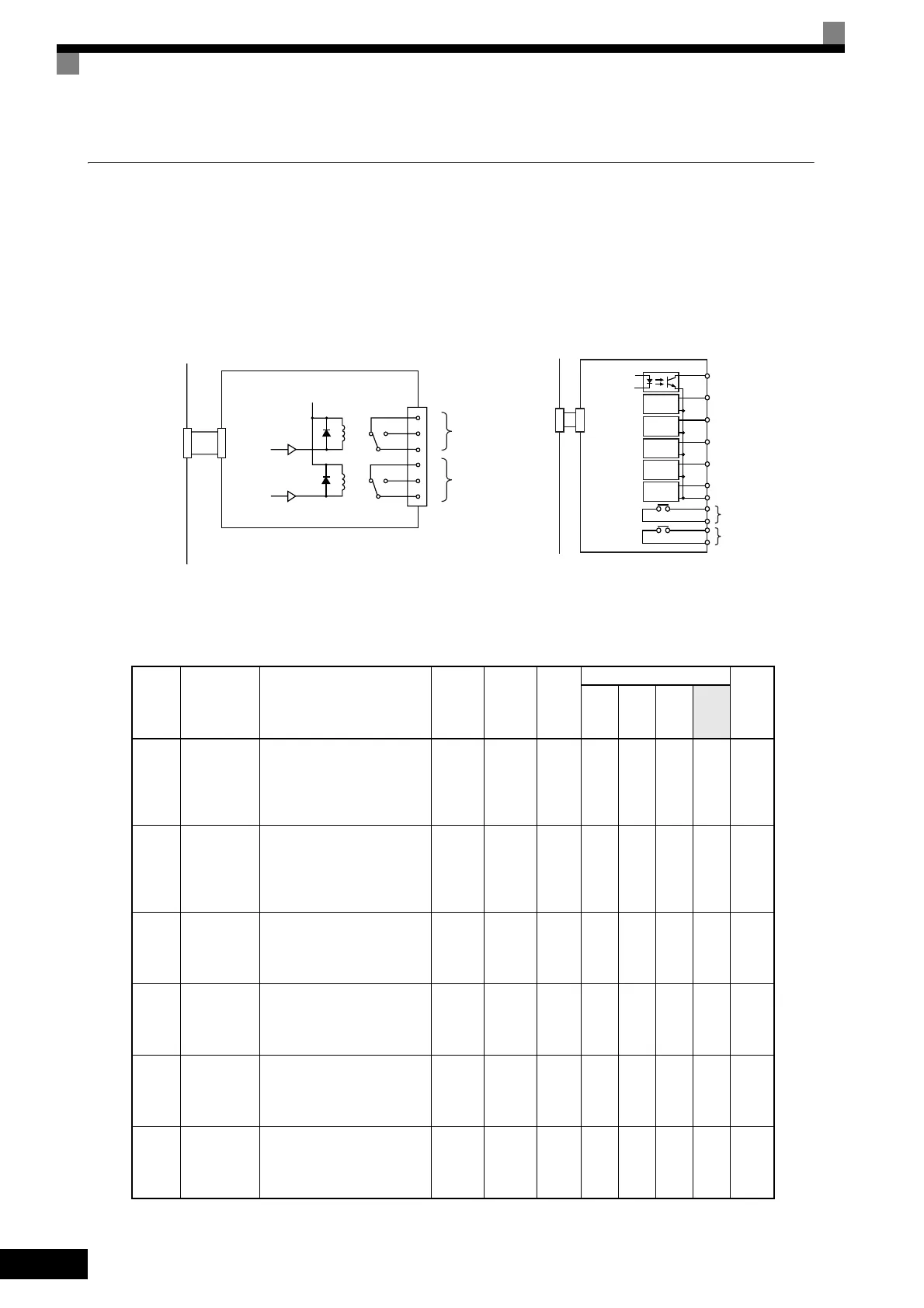

Fig 6.79 Digital Output Boards
îš„Related Constants
Con-
stant
Number
Name Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Control Methods
MEMO
BUS
Regis-
ter
V/f
V/f
with
PG
Open
Loop
Vec-
tor
Flux
Vec-
tor
F5-01
Channel 1
output selec-
tion
Effective when a Digital Output
Board (DO-02C or DO-08) is
used.
Set the number of the multi-
function output to be output.
0 to 37 0 No A A A A 399H
F5-02
Channel 2
output selec-
tion
Effective when a Digital Output
Board (DO-02C or DO-08) is
used.
Set the number of the multi-
function output to be output.
0 to 37 1 No A A A A 39AH
F5-03
Channel 3
output selec-
tion
Effective when a DO-08 Digital
Output Board is used.
Set the number of the multi-
function output to be output.
0 to 37 2 No A A A A 39BH
F5-04
Channel 4
output selec-
tion
Effective when a DO-08 Digital
Output Board is used.
Set the number of the multi-
function output to be output.
0 to 37 4 No A A A A 39CH
F5-05
Channel 5
output selec-
tion
Effective when a DO-08 Digital
Output Board is used.
Set the number of the multi-
function output to be output.
0 to 37 6 No A A A A 39DH
F5-06
Channel 6
output selec-
tion
Effective when a DO-08 Digital
Output Board is used.
Set the number of the multi-
function output to be output.
0 to 37 37 No A A A A 39EH
Photocoupler
TD5
TD6
TD7
TD8
TD9
TD1
TD2
TD3
TD4
TD10
TD11
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
COM (0 V common)
Relay contact
DO-08 Digital Output Board
3CN3CN
Inverter
control
panel
Photocoupler
TD
NC
NC
NO
NO
1
2
3
4
5
6
CH1
CH2
Relay contact
+24 V
3CN
3CN
Inverter
control
panel
DO-02C Digital Output Board
