3-2
Digital Operator
This section describes the displays and functions of the Digital Operator.
îš‹ Digital Operator Display
The key names and functions of the Digital Operator are described below.

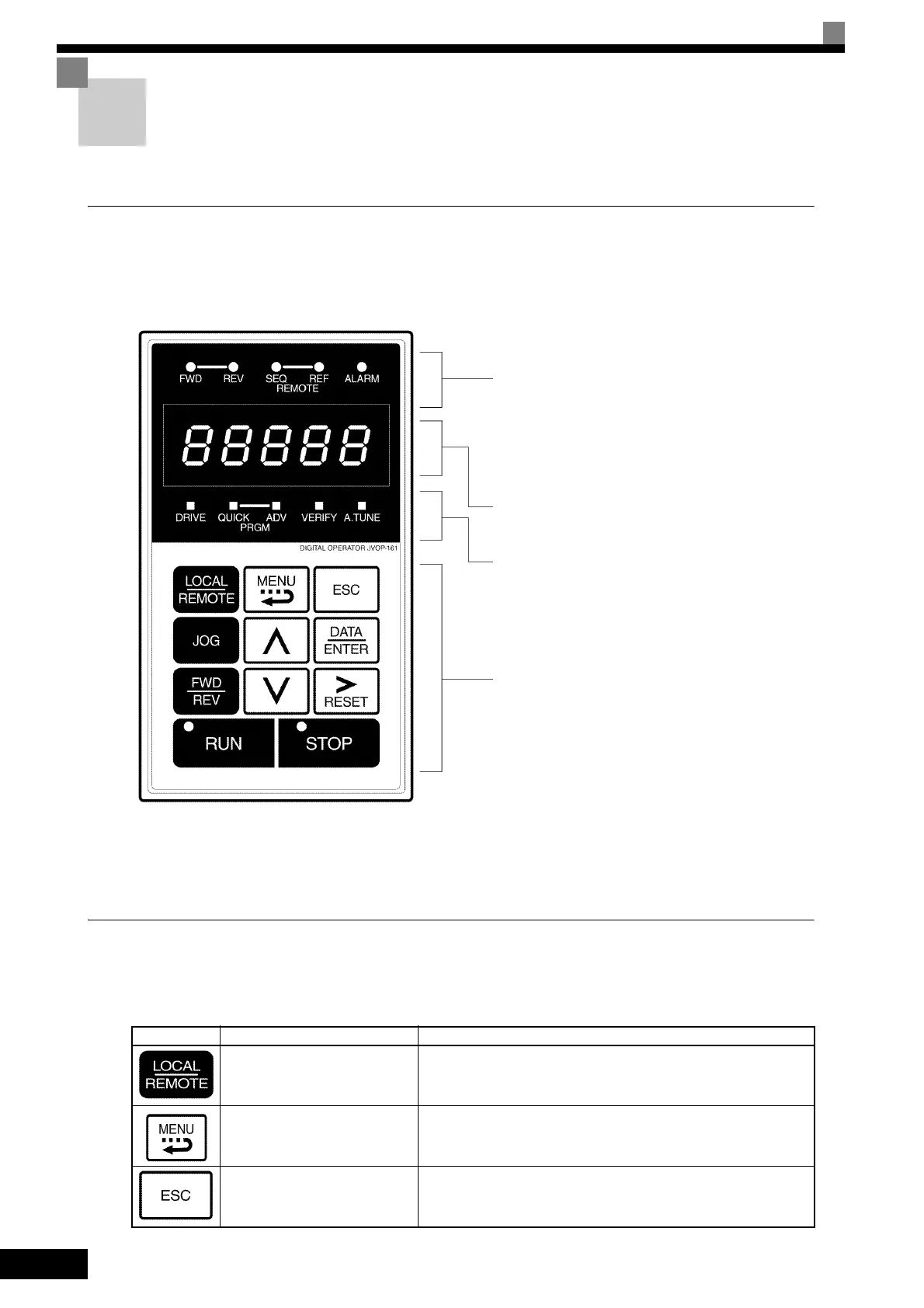

Fig 3.1 Digital Operator Component Names and Functions
îš‹ Digital Operator Keys
The names and functions of the Digital Operator Keys are described in Table 3.1.
Table 3.1 Key Functions
Key Name Function
LOCAL/REMOTE Key
Switches between operation via the Digital Operator (LOCAL) and
control circuit terminal operation (REMOTE).
This Key can be enabled or disabled by setting user constant o2-01.
MENU Key Selects menu items (modes).
ESC Key Returns to the status before the DATA/ENTER Key was pressed.
Drive Mode Indicators
FWD: Lit when there is a Forward Run Command
input.
REV: Lit when there is a Reverse Run Command
input.
SEQ: Lit when the Run Command from the control
circuit terminal is enabled.
REF: Lit when the frequency reference from control
circuit terminals A1 and A2 is enabled.
ALARM: Lit when an error or alarm has occurred.
Data Display
Displays monitor data, constant numbers, and
settings.
Mode Display
DRIVE: Lit in Drive Mode.
QUICK: Lit in Quick Programming Mode.
ADV: Lit in Advanced Programming Mode.
VERIFY: Lit in Verify Mode.
A. TUNE:Lit in Autotuning Mode.
Keys
Execute operations such as setting user con-
stants, monitoring, jogging, and autotuning.
