Modes
3-7
îš‹ Quick Programming Mode
In quick programming mode, the constants required for Inverter trial operation can be monitored and set.
Constants can be changed from the setting displays. Use the Increment, Decrement, and Shift/RESET Keys to
change the frequency. The user constant will be written and the monitor display will be returned to when the
DATA/ENTER Key is pressed after changing the setting.
Refer to Chapter 5 User Constants for details on the constants displayed in quick programming mode.
îš„Example Operations
Key operations in quick programming mode are shown in the following figure.

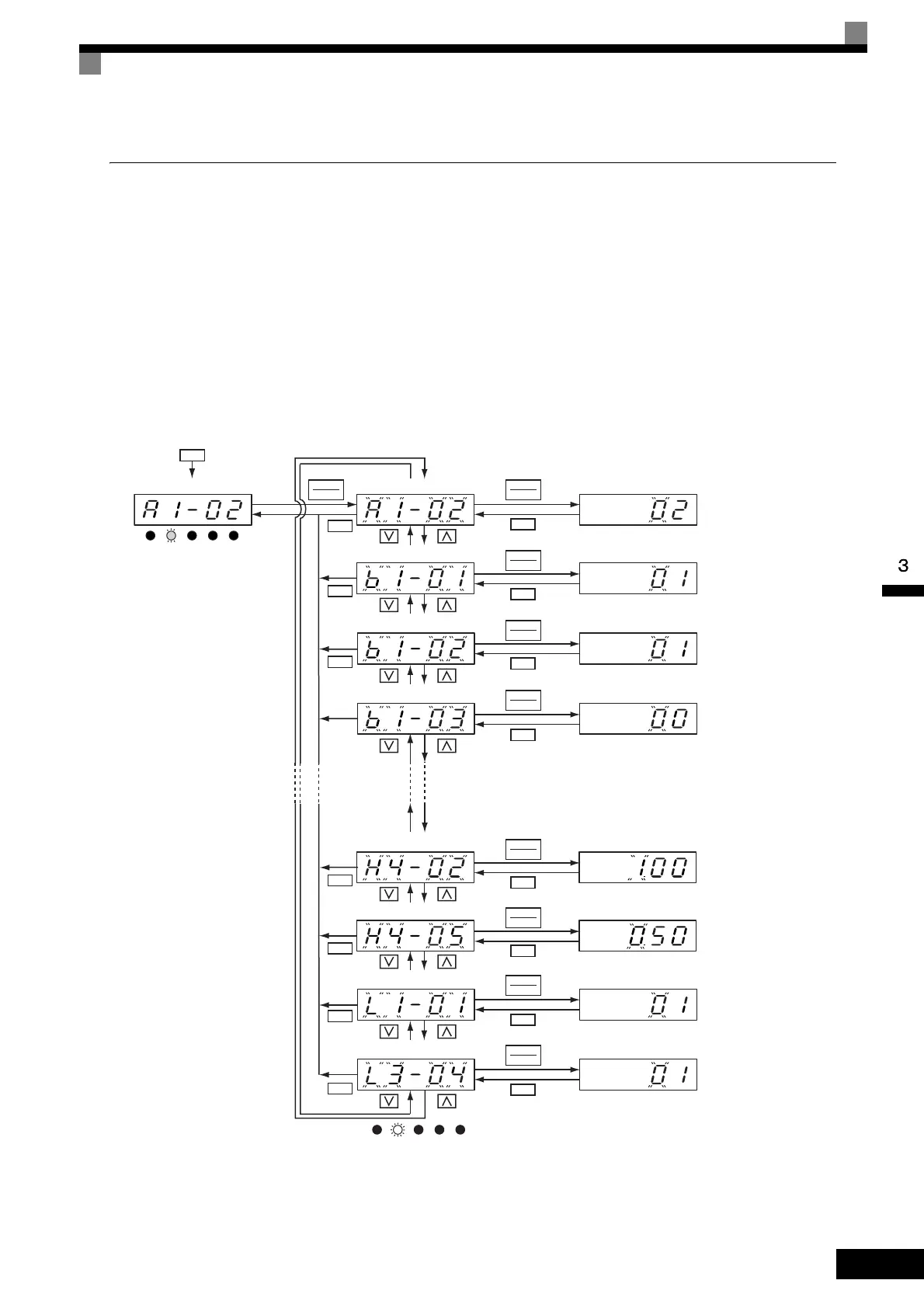

Fig 3.5 Operations in Quick Programming Mode
Quick Programming Mode
DRIVE QUICK
VERIFY
A.TUNEADV
Mode Selection Display
MENU
Monitor Display Setting Display
Control method selection
Reference selection
Operation method selection
Stopping method selection
Motor protection selection
Deceleration stall selection
AO CH2 output gain
AO CH1 output gain
C1-01: Acceleration time 1
C1-02: Deceleration time 1
C6-01: CT/VT selection
C6-02: Carrier frequency
selection
d1-01: Frequency reference 1
d1-02: Frequency reference 2
d1-03: Frequency reference 3
d1-04: Frequency reference 4
d1-17: Jog frequency reference
E1-01: Input voltage setting
E1-03: V/f pattern selection
E1-04: Max. output frequency
E1-05: Max. voltage
E1-06: Base frequency
E1-09: Min. output frequency
E1-13: Base voltage (VBASE)
E2-01: Motor rated current
DRIVE QUICK
VERIFY
A.TUNEADV
ESC
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
ESC
To Next Page
