 Verify Mode
Verify mode is used to display any constants that have been changed from their default settings in a program-
ming mode or by autotuning. “None” will be displayed if no settings have been changed.
Of the environment mode settings, only A1-02 will be displayed if it has been changed. Other environment
modes settings will not be displayed even if they have been changed from their default settings.
Even in verify mode, the same procedures can be used to change settings as are used in the programming
modes. Use the Increment, Decrement, and Shift/RESET Keys to change the frequency. The user constant will
be written and the monitor display will be returned to when the DATA/ENTER Key is pressed after changing
the setting.
Example Operations
An example of key operations is given below for when the following settings have been changed from their
default settings: b1-01 (Reference Selection), C1-01 (Acceleration Time 1), E1-01 (Input Voltage Setting), and
E2-01 (Motor Rated Current).

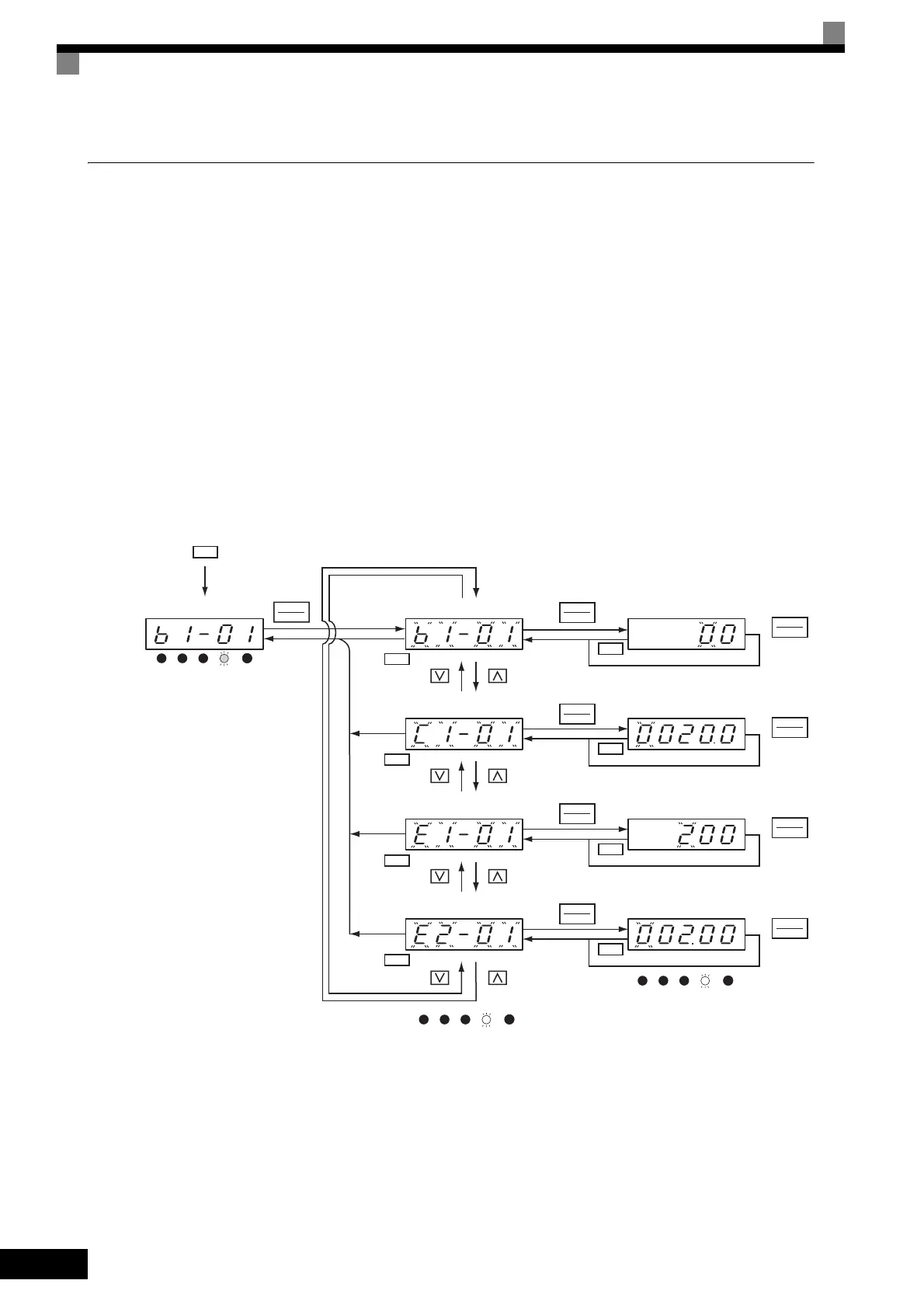

Fig 3.7 Operations in Verify Mode
DATA
ENTER
DRIVE QUICK
VERIFY
A.TUNEADV
DRIVE QUICK
VERIFY
A.TUNEADV
Monitor Display
MENU
Setting Display
Verify Mode
Mode Selection Display
Acceleration time 1
Input voltage setting
Motor rated current
DRIVE QUICK
VERIFY
A.TUNEADV
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
DATA
ENTER
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
Acceleration time 1
Input voltage setting
Motor rated current
Frequency reference
selection
Frequency reference
selection
