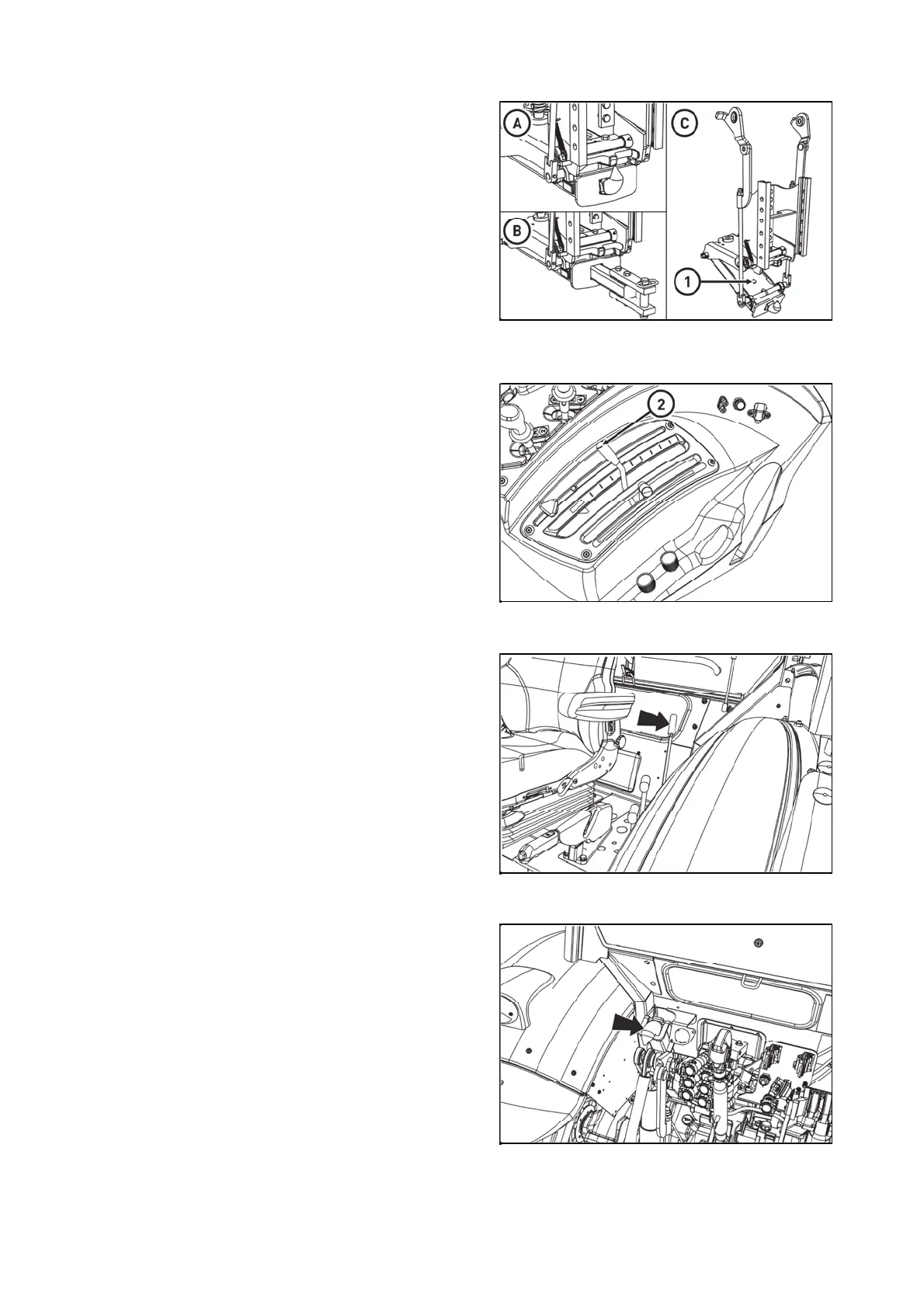

Hitch for a single-axle CBM semi-traile
Coupling of a single-axle trailer
Uncoupling of a single-axle trailer
Hook of the mounting for a single-axle trailer
The hitch for a single-axle trailer can be equipped with
a hook (A) that is designed for coupling of single-axle
trailers having poles according to the standard ISO 5692
(inner diameter of the eye 50 mm and height of the eye 30
mm) or pivoted pull bar (B).
The coupling hook is lowered and lifted hydraulically using
length-adjustable telescopic pull rods.
Replacement of the hook for the pivoted pull bar (C):
1. Lower the hitch.
2. Unlock and remove the pin (1).
3. Remove the hook in direction of the arrow.
The pivoted pull bar is mounted in reverse order.
PCLPN055
Coupling can be performed using the hydraulic circuit
lever (2). The hitch hook with the trailer pole eye is lifted
hydraulically to the position where the supporting hooks
click under pins of the hitch carrier.
The lifting arms of the hydraulic device then shall be
lowered to lock the supporting hooks onto the carrier pins;
the telescopic pull rods shall not be under any tension.
PGPPN030
This can be performed after slight lifting of the hitch by the
inner hydraulic circuit lever.
Move the control lever backwards.
The lever is located on the left side of the driver's seat.
Lower the hitch using the inner hydraulic circuit lever and
disconnect the trailer pole eye.
PGPPN028
The hook of the mounting for a single-axle trailer is
located in the bracket on the left-hand side of the cabin
back wall.
PGPPN063
