Control panel on right cab pilla
PGPPN135

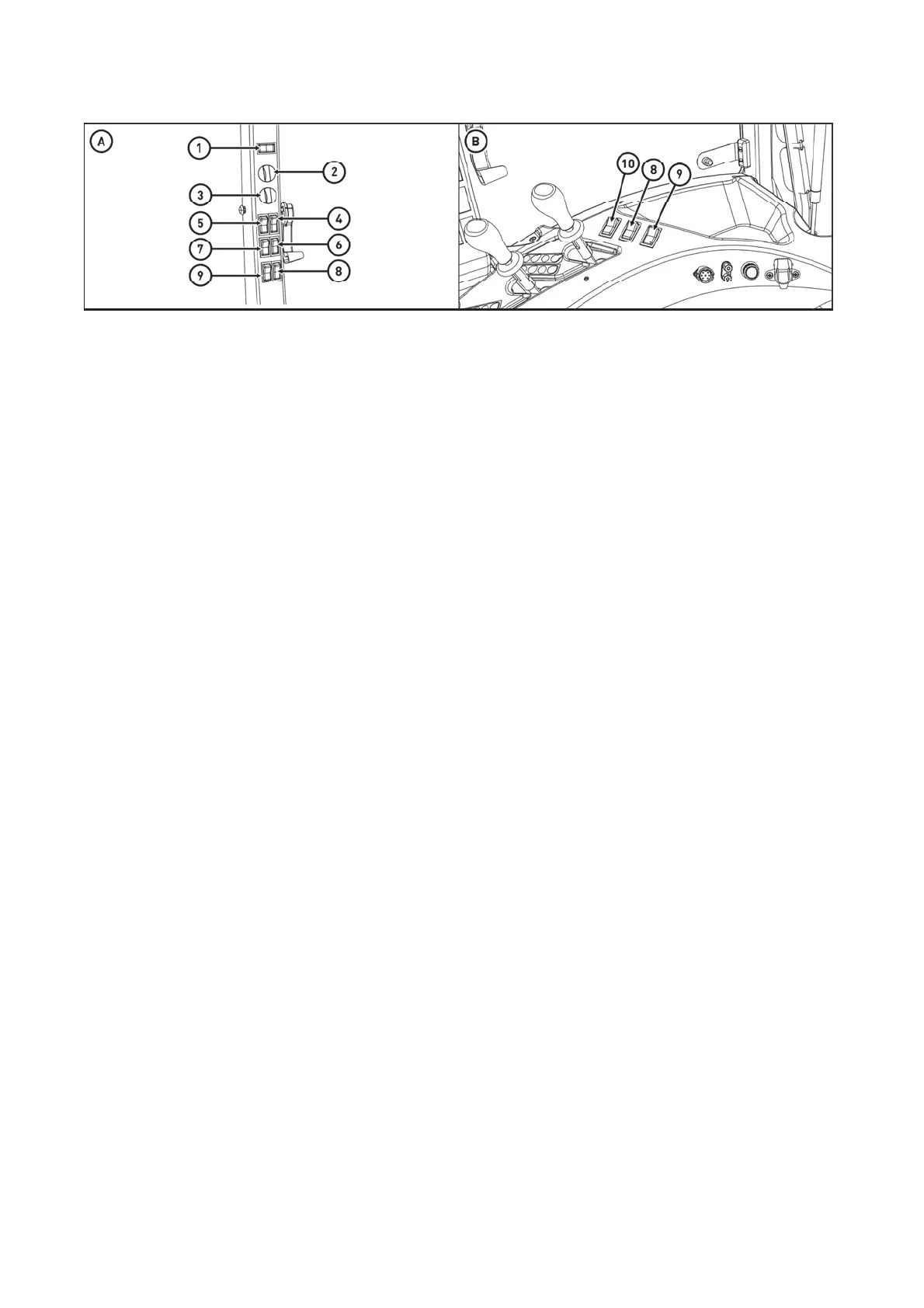

Distribution of switches in a tractor of standard construction (A)
1 - switch of the cycler of the front wiper
2 - two-position switch of the front wiper and of the control of the front washer
3 - switch of the rear wiper
4 - switch of heating of the rear wiper
5 - switch of heating of the rear mirrors
6 - switch of the rear work lights on the cabin roof
7 - switch of the front work lights on the cabin roof
8 - switch of the rear PTO shaft
9 - switch of the front PTO shaft
If the tractor is equipped with EHR (B) electro-hydraulics,
the switches (8) and (9) are transferred to the control panel of the outer hydraulic circuit.
10 - switch of the automatic switchin
off of the rear PTO shaf
