Outer hydraulic circuit
Outer hydraulic circuit controls

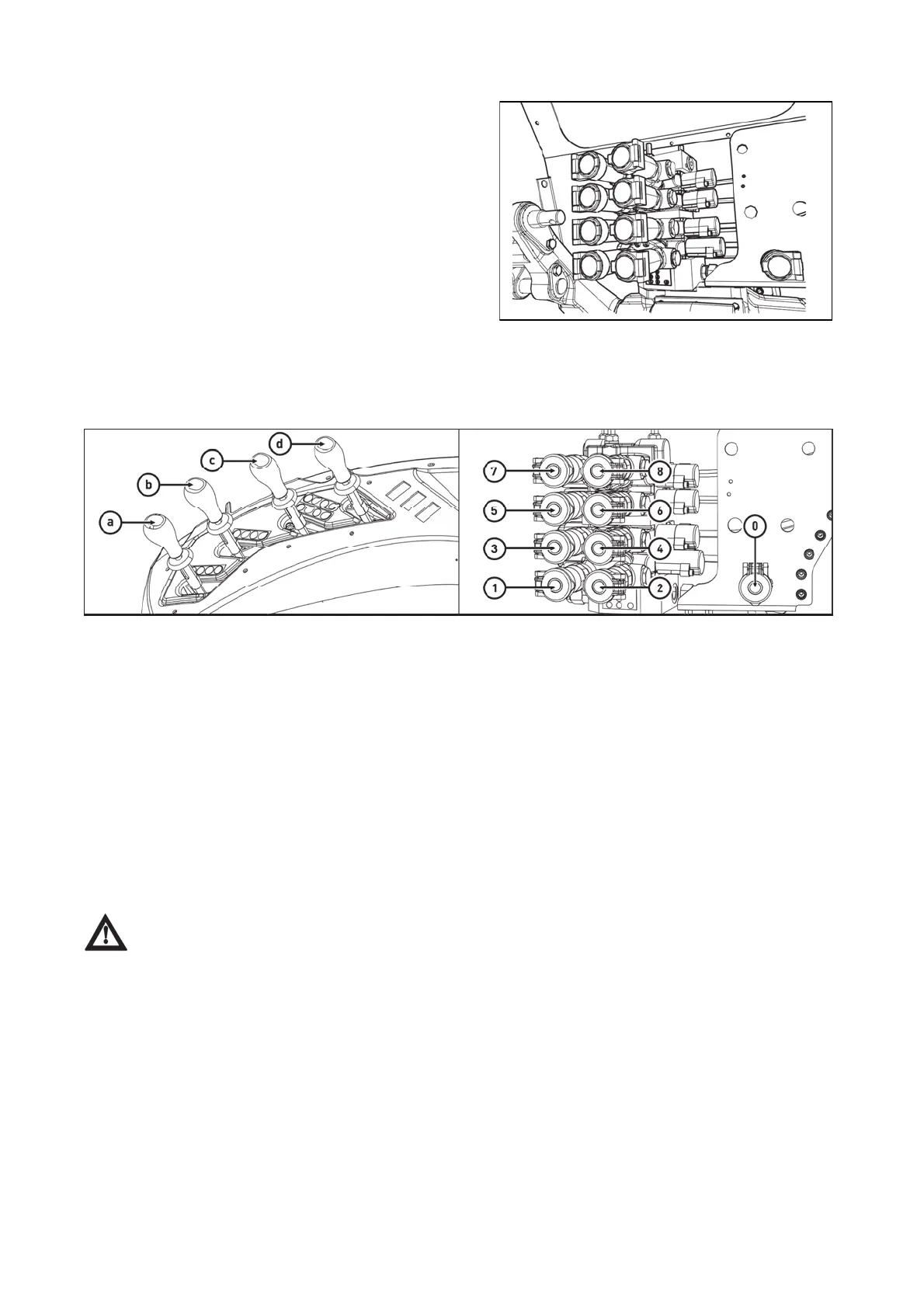

The control levers of the outer hydraulic circuit are distinguished by colours. The lever colour corresponds to
the colour of quick coupler dusters that are controlled by the corresponding lever.
PGPPN082
Outer hydraulic circuit controls are located on the right wing.
lever (a) controls the section of distributor - quick couplers (1) and (2)
lever (b) controls the section of distributor - quick couplers (3) and (4)
lever (c) controls the section of distributor - quick couplers (5) and (6)
lever (d) controls the section of distributor - quick couplers (7) and (8)
Quick coupler (0) is directly connected with transmission and it is supposed for recuperative oil of exterior
hydraulic appliances (e.g. from rotary hydraulic engines etc.).
According to the equipment of the tractor, the following combinations of control levers and quick couplers can
be supplied:
levers (a), (b), (c) and (d) - quick couplers (1), (2), (3), (4), (5), (7) and (8)
levers (a),(b) and (c) - quick couplers (1), (2), (3), (4), (5) and (6)
Quick coupler (0) is supplied in any case.
If the tractor is equipped with front three-point hitch, use lever (b) to control it. When the front
three-point hitch is used, quick couplers cannot be connected as they are pressured together with
the front three-point hitch! When you finish using the front three-point hitch and want to use the
section with quick couplers 3 and 4 with connection to the front three-point hitch, raise the arms of
the front three-point hitch to the transport position and move the front three-point hitch lever to the
'locked'
osition
It supplies pressure oil for hydraulic devices on outer
drives of hydraulics ended with couplers. Coupler sockets
with 12.5 mm bore are in accordance with the international
recommendation of ISO.
P+13N011
