Lights switc
Switch of warning lights
Lights switch between the grill and the cabin

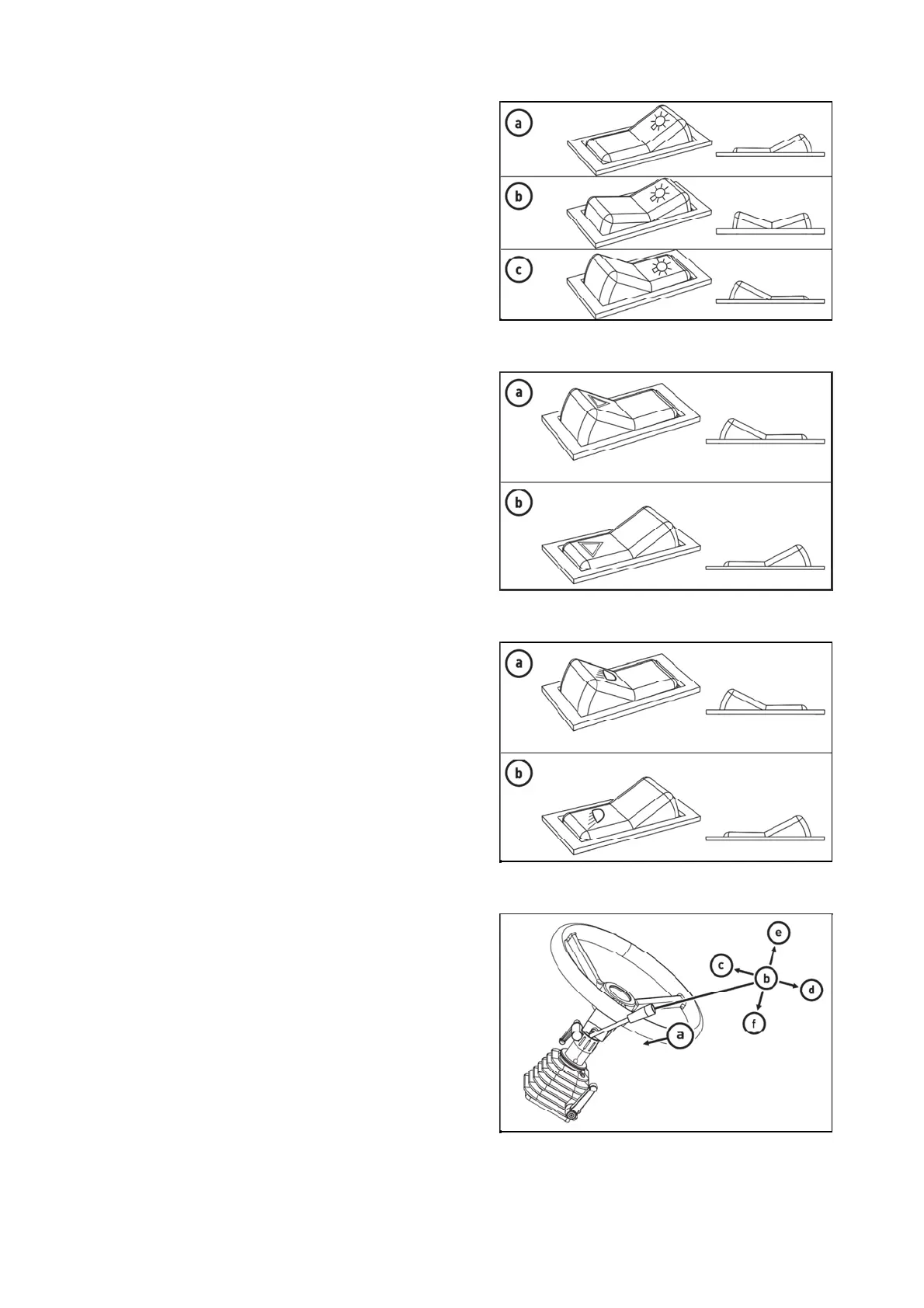

Direction lights, lower beam head lights, head lights and horn switches
a - illumination off
b - side and end point lights on, illumination of licence
label, illuminated
c - all devices on in 'b' position. Lower beam head lights or
head beam lights are engaged (according to the position
of direction lights, lights and horn switches).
PGPPN019
a - warning lights on
b - warning lights off
Function of warning lights is signalized by interrupted
blinking control on the dashboard.
PGPPN020
a - Roof Lights Switched Off
b - Roof Lights Switched On
The switch controls the lights in the grill or in the roof of
the tractor cab. Only use the lights in the cab roof when
the front three-point hitch is equipped with an implement
covering the headlights in the grill. The lights are mounted
on the brackets on the cab frame as standard. When the
lights in the grill are covered by an implement, they are
transferred to the roof. The illuminated symbol on the
switch indicates that the lights in the cab roof are switched
on.
The high beam lights may only be switched on in the hood
grill.
PGPPN021
a - Acoustic horn - press the switch in the direction of an
axis
b - Low beam lights
c - Direction lights to the right
d - Direction lights to the left
e - Acoustic horn
f - High beam lights
PCLPN083
ACQUAINTANCE WITH TRACTOR
