Transport of implements

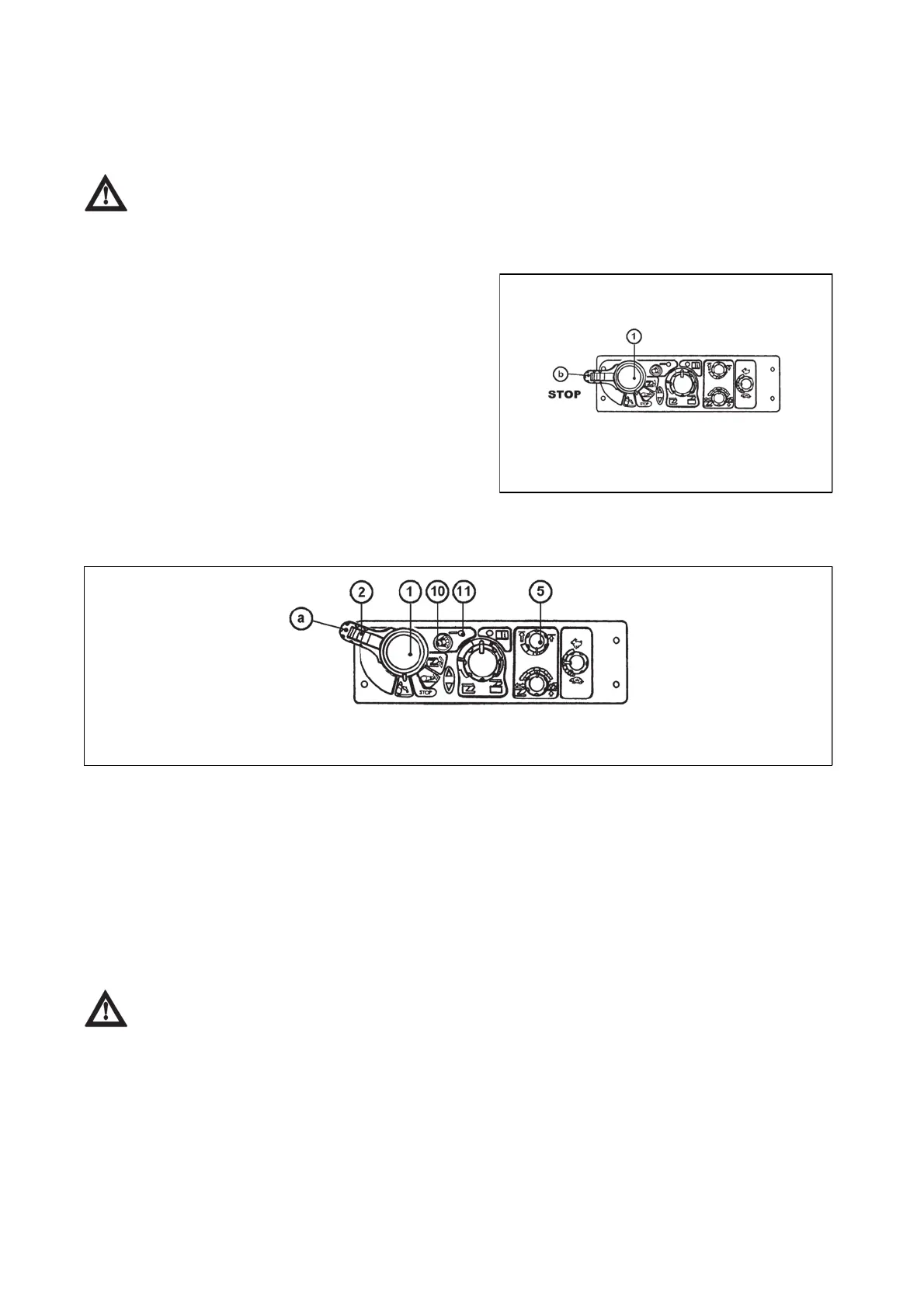

Shift the lifting lever (1) to position 'a' and block it with the moving latch (2).
Blocking the lifting lever (1) by the moving latch (2) in position (a):
A - Lever movement blocked
B - Lever movement not blocked
When the tractor with an attached implement is stopped, the implement must be lowered onto
the ground (it must not be left in the lifted position).
Stop position
Vibration compensator (damper)
F_02_168
It is used during transport of a heavy implement attached to the rear three-point hitch.
After activation of the vibration compensator (10) the arms of the rear three-point hitch sink by approx. 4%,
which allows oscillation of the arms in the range of approx. 8% of the lift. The upward oscillation is always
limited by the position of the upper position limiter (5).
Advantages of active dampening of vibrations during transport of a heavy implement attached to the rear
three-point hitch.
1. Increased operation safety (the steering axle is not unloaded so much
2. Stabilization of the transported implement
3. Reduced dynamic stress of the hydraulic system and the rear three-point hitch
During the adjustment of the hitch for a single-axle semi-trailer the vibration compensator
must be off.
By moving the lever (1) to position (b) - STOP position -
you will immediately stop the movement of the three-point
hitch.
F_02_167
