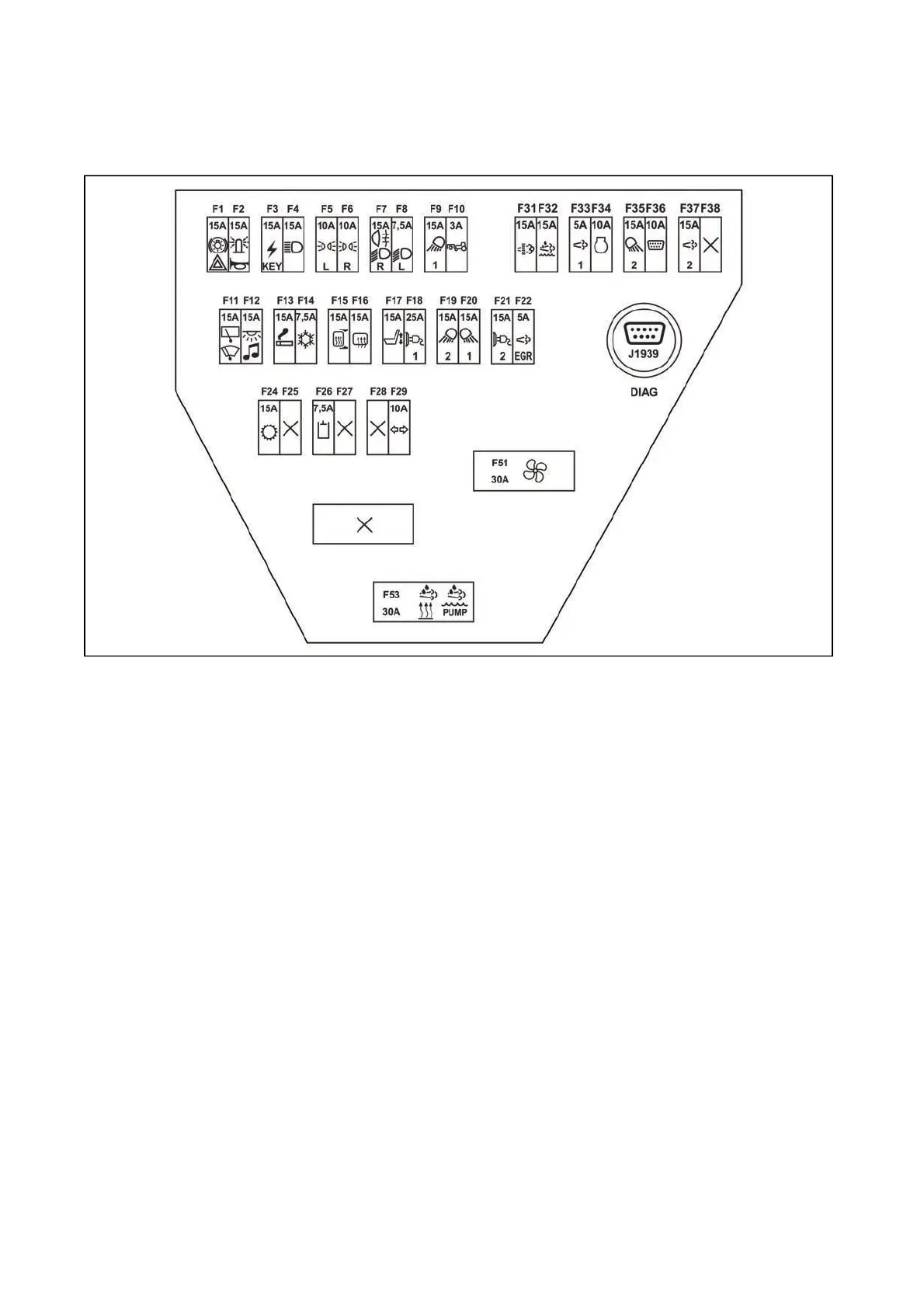

Fuse panel

The fuse panel is accessible after the left side cover of the control bracket is removed.

During replacement of fuses it is necessary to adhere to the prescribed value of the fuse. If interrupted

repeatedly, search the nearest service.

PPW15N022

ELECTRIC INSTALLATION

156
