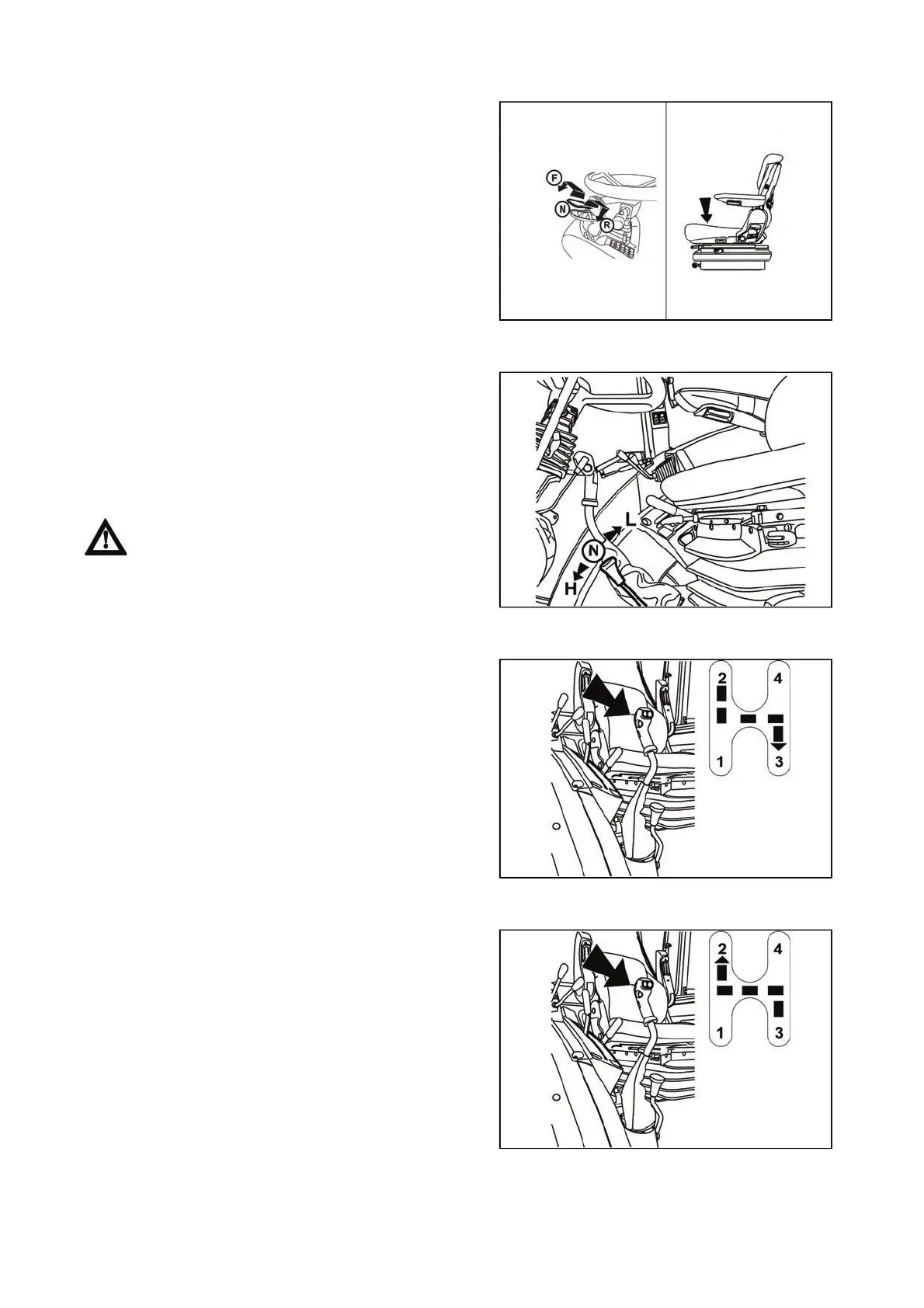

Driver´s seat - safety switch
Shifting road and reduced speeds
Gear shifting from lower to higher gears
Gear shifting from higher to lower gears
The driver´s seat is equipped with a safety switch which
signalizes the system of driver abandoning the driver´s
seat.
If the tractor is started, there is nobody on the driver´s seat
and reversing lever under the steering wheel is shifted to
F or R position, N position is shifted automatically and
tractor does not start.
If this situation occurs, it is necessary to sit on the driver´s
seat, to return the reversing lever under the steering wheel
to N position and then to select the direction of drive again
(F or R).
FH12N069
H - road speeds
N - neutral
L - reduced speeds
Shifting of gears of the main gearbox with reduced speeds
is the same as with road speeds.
Considering low speed of the tractor, change nearly
always means moving off from rest.
Shifting using the lever of road and reduced
speeds is only possible when the tractor is in
standstill.
G150
Depress the clutch pedal (clutch disengaged). At the same
time release the pedal of foot fuel control and shift the
applicable higher gear. Release the clutch pedal (clutch is
engaged) smoothly and at same time increase engine
revolutions.
Note: For increasing the life cycle of synchrones, it is
possible to shift from higher to lower gear with the
socalled double declutching.
E214
Depress the clutch pedal and shift the gear shifting lever
through neutral to lower gear.
Note: For increasing the life cycle of synchrones, it is
possible to shift from higher to lower gear with the
socalled double declutching.
E215
