Right rear panel

Internal lighting

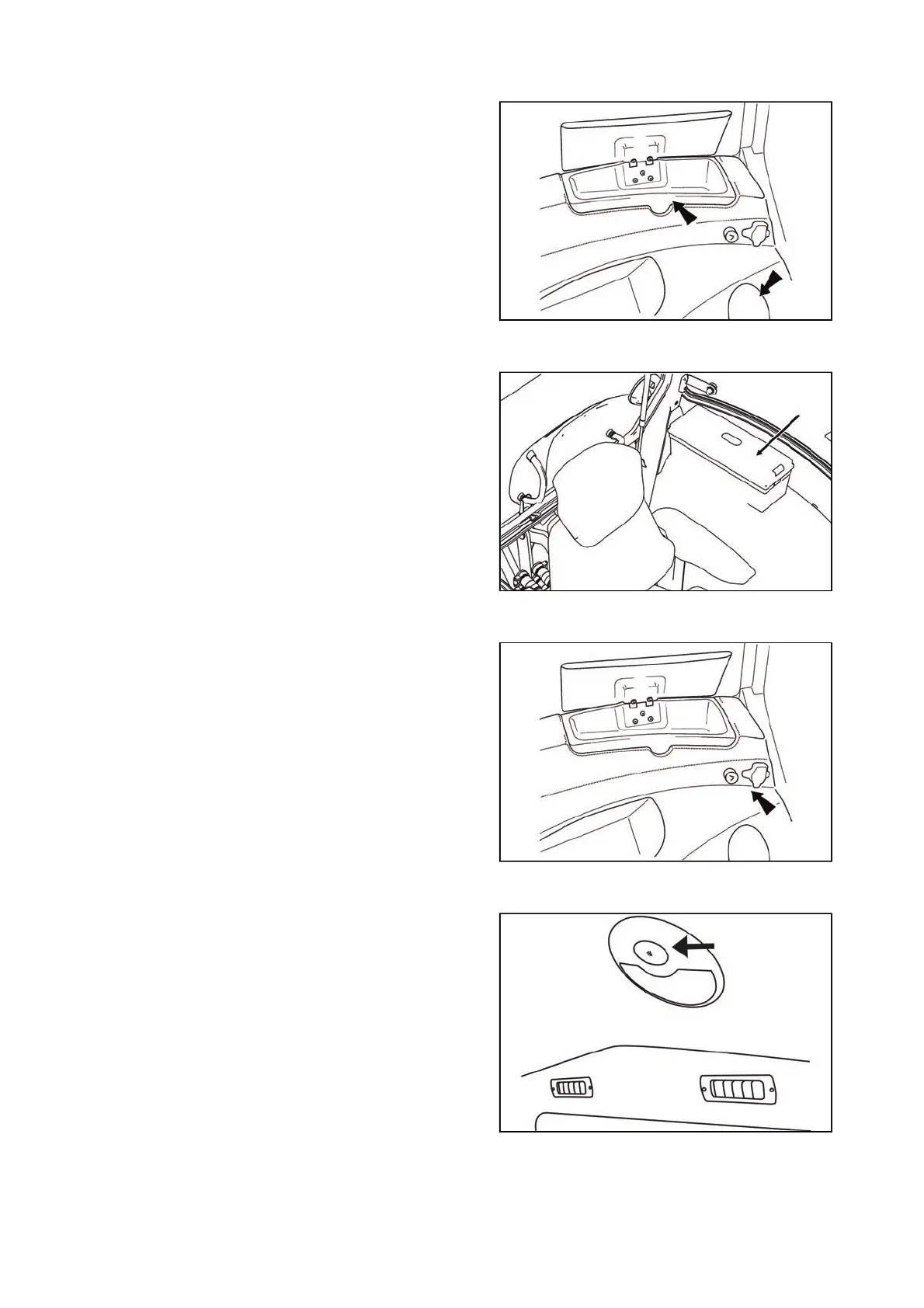

Storage spaces are located on the right mudguard.

FH12N025

The tools box is located on the right side of the driver's

seat.

P15n019

On the right rear panel there are the three pin socket 12V

and the firer.

P15n020

To be turned on and off by means of a button marked with

the arrow.

F13BN014

ACQUAINTANCE WITH TRACTOR
