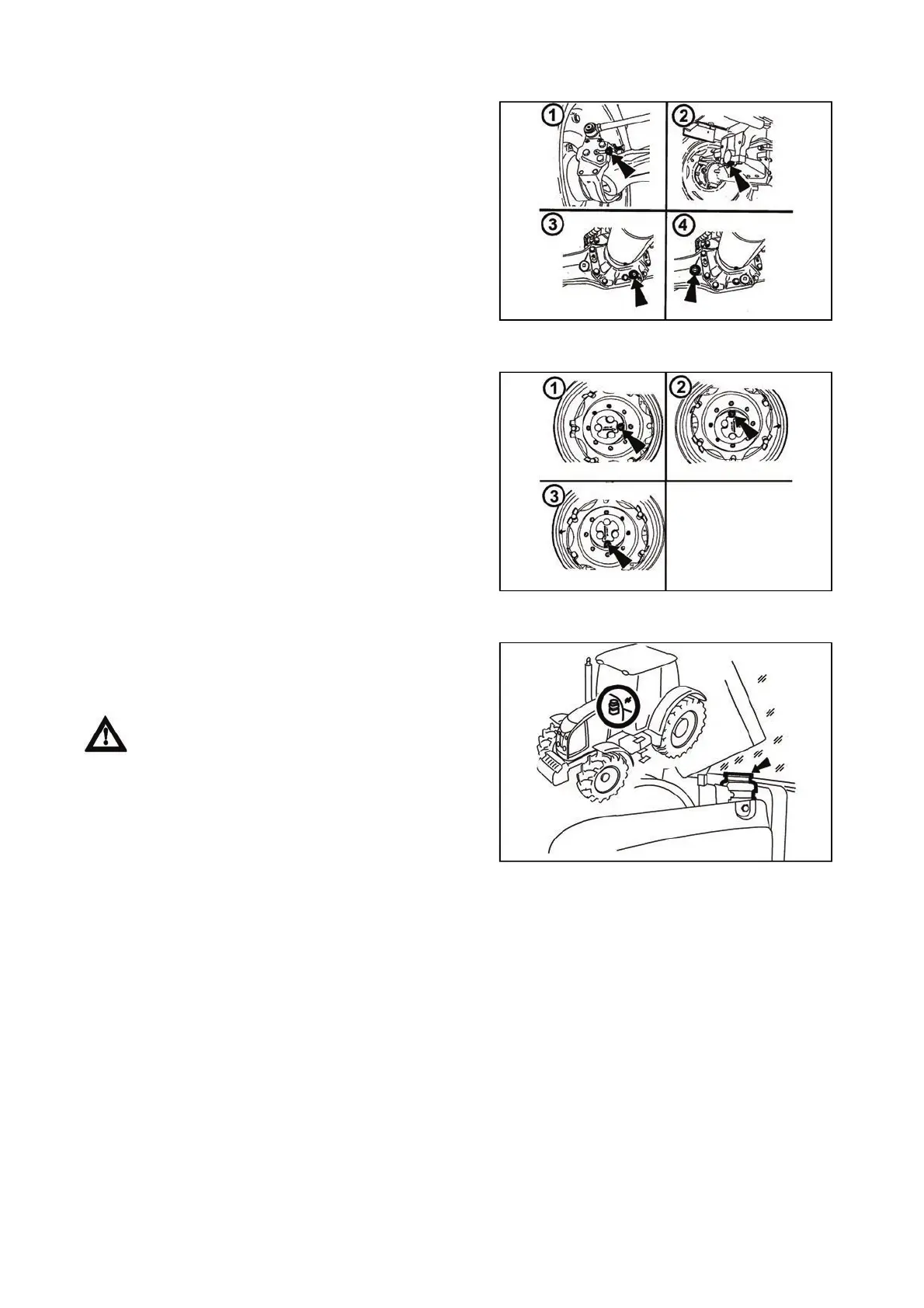

Filling, controlling and draining hole of oil of front drive axle
Filling, controlling and draining hole of oil of front wheels reducers
Brake fluid replacement
1 - lubricating nipple of the kingpin
2 - sliding bearings (2 pieces) of the front driving axle
3 - drain opening of the final drive hous-ing oil
4 - filling and inspection opening of final drive housing oil
(after removing of the inspection screw the oil level must
reach the bottom edge of the inspection opening)
E733
Inspection, filling and draining oil is done by a one hole
after turning reducer according to figure.
1. amount of oil inspection - hole in the horizontal axis of
a reducer (after unscrewing control screw the level of oil
must reach the brim of checking hole)
2. filling oil - hole at the top
3. draining hole - hole at the bottom
C731
The tank is located on the left side of the tractor in front of
the cabin and accessible after lifting of the bonnet.
Keep level of brake fluid within 3/4 (max. height) and 1/2
(min. level) of the tank volume.
When manipulating with brake fluid observe
strict cleanness. Check level every day before you
drive out.
