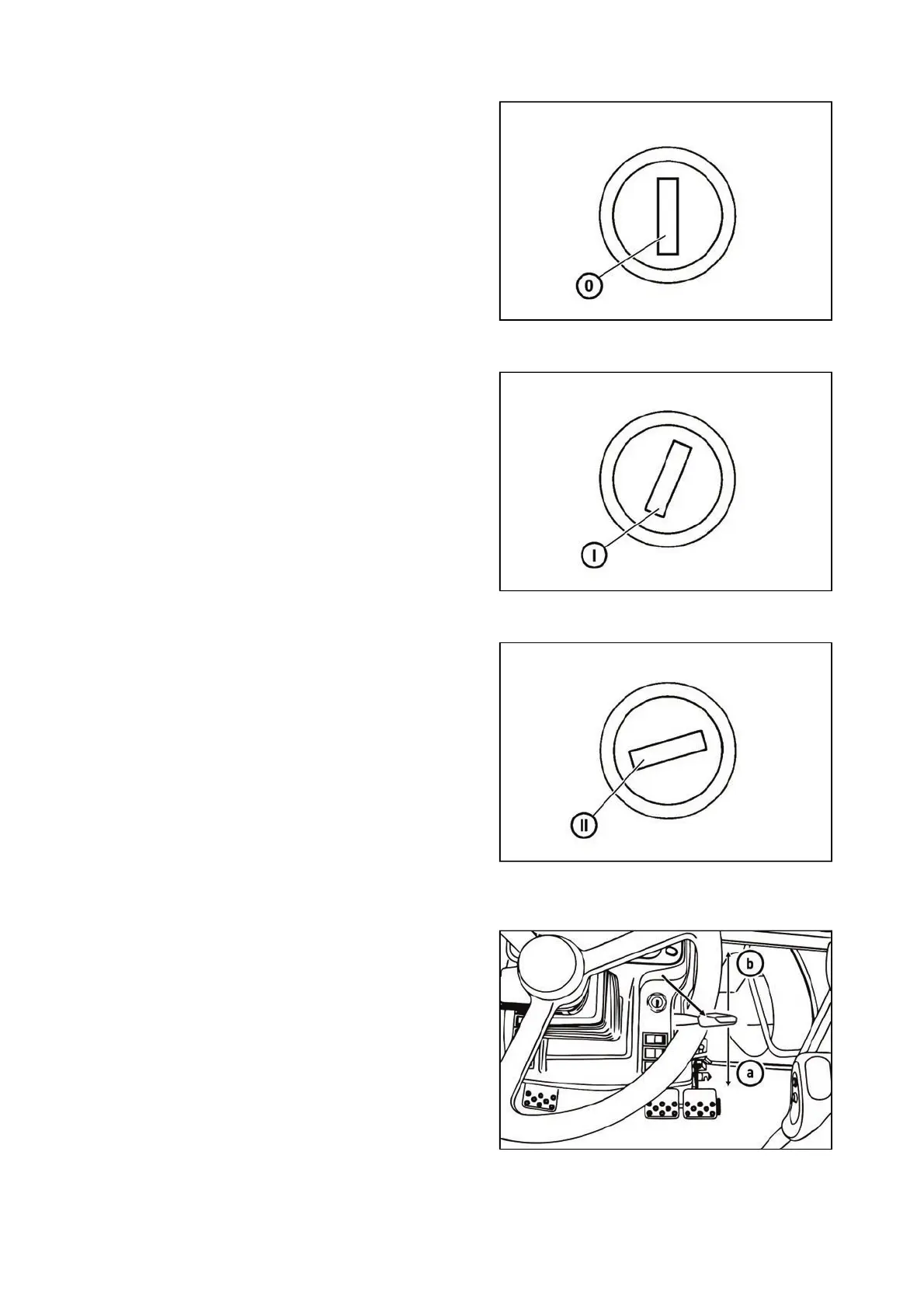

Switch box key in the position (0)
Switch box key in the position (I)
Switch box key in the position (II)
Manual throttle
The voltage of all the equipment controlled via the key is
disconnected. The key can be removed.
S43
The voltage is connected to all the equipment excluding
starter. The key is in this position with the engine running.
S44
Starter and supply of all equipment is connected in this
position apart from wipers, washer, cab ventilator and air
condition. After starting, the key automatically returns back
to 'I' position.
S45
a - idle run
b - maximum supply
The lever enables to set engine revolutions in the whole
range (a) to (b).
C15N054
ACQUAINTANCE WITH TRACTOR
