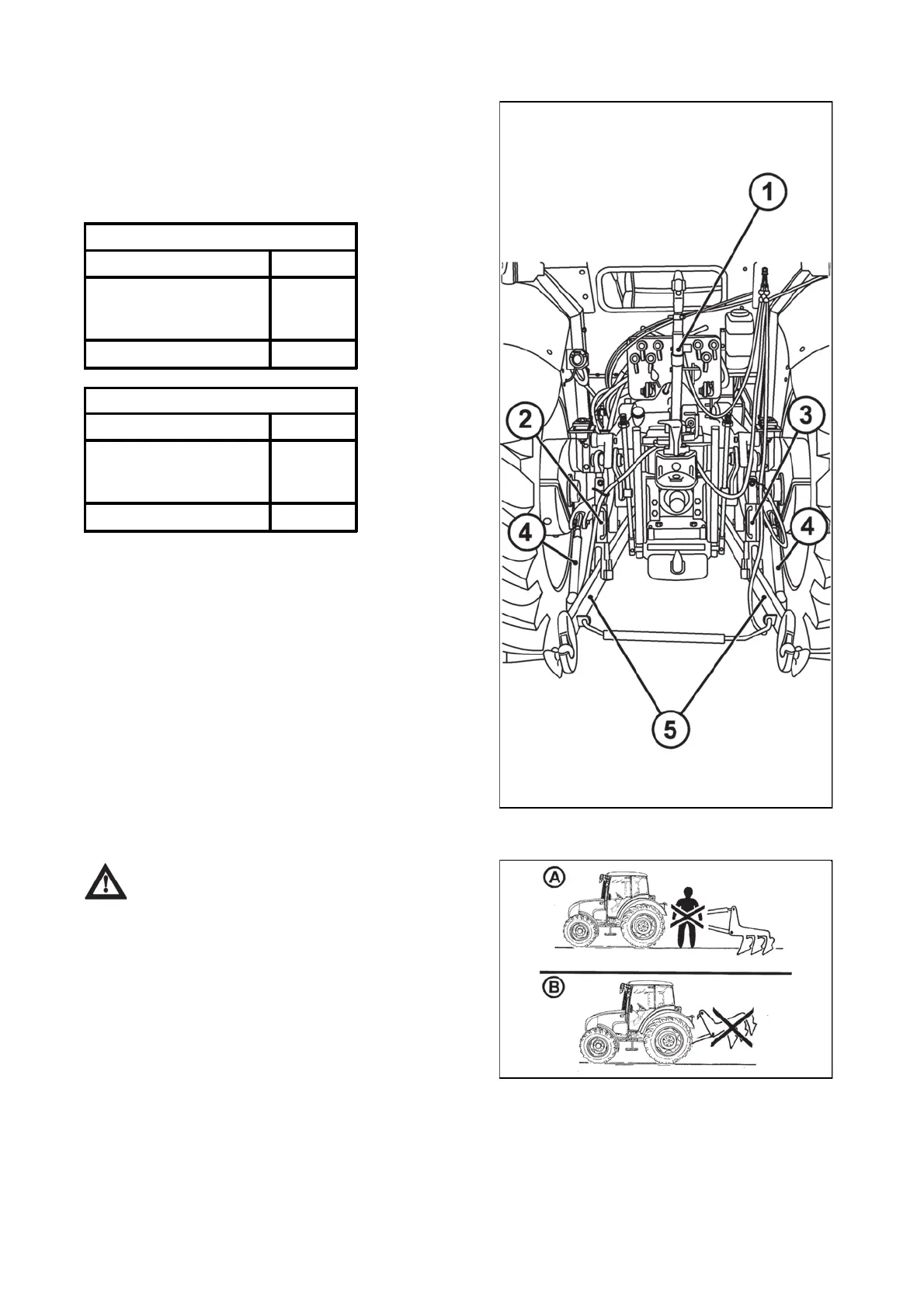

Rear three-point hitc
Safety principles of working with the three-point hitch
Serves for connecting carrier-mounted or semi mounted
agriculture machines and tools with linkage points of
category I. or II. pursuant to ISO. The categories differ
based on the length of linkage axis, which is the distance
of the centre of balls of lower linkage joints with connected
tool.
1. Upper draw bar
2. Lift rod left
3. Lift rod right
4. Limiting draw bars
5. Lower draw bars
Category I.
Length of linkage axis 728 mm
Ø of holes of connecting
balls of lower draw bars
pursuant to ISO
28 mm
Ø of upper draw bar hole
25 mm
Category II.
Length of linkage axis 870 mm
Ø connecting balls holes
of lower draw bars
pursuant to ISO
28 mm
Ø of upper draw bar hole
25 mm
E451
Persons that are not authorized to work with
the attached implement must not stand between the
tractor and the hitched machine (implement) - (A). Do
not park the tractor with an attached implement in the
lifted position (B). During a drive without an
implement the lower draw-bars (5) must be connected
with springs and the upper draw-bar (1) must be
inserted into the spring suspension! During transport
of implements the limiting draw-bars (4) of the lower
draw-bars must be adjusted in such a way to avoid
unwanted lateral movement of the implement!
G452
