Upper pull ro
Selection of holes in the bracket

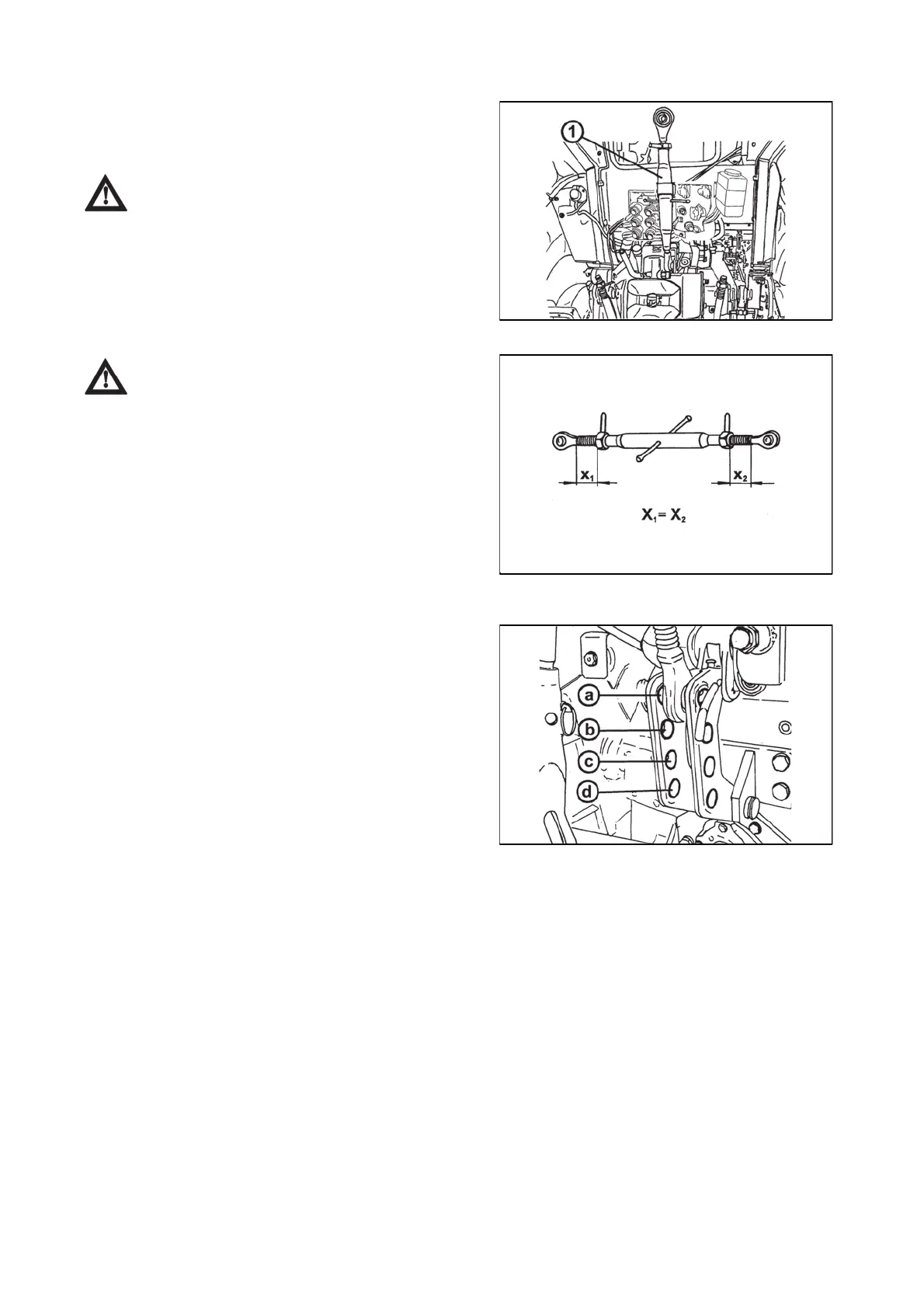

Length of the upper pull rod (1) is adjustable. The pull rod
can be connected to the tractor to one of four holes in the
bracket that transfers forces from the hitched implement to
the torsion rod in the cover of the hydraulics regulation.
When transporting an implement it is necessary
to reposition the upper pull rod to the hole 'd' to
revent overloadin
of the liftin
h
draulics kinemati
system or fall of the hitched mechanism.
P11NE456
When extending the upper pull rod it is
necessary to pay attention that both joints are
screwed out from the pull rod pipe in the same length.
E457
Connection of the upper pull rod to some of the holes 'a' to
'd' of the bracket influences:
- Sensitivity of hydraulic control (system selection lever in
position 'D' or 'M'). When the drawbar is connected to
opening 'a', the sensitivity of the control is highest.
E458
