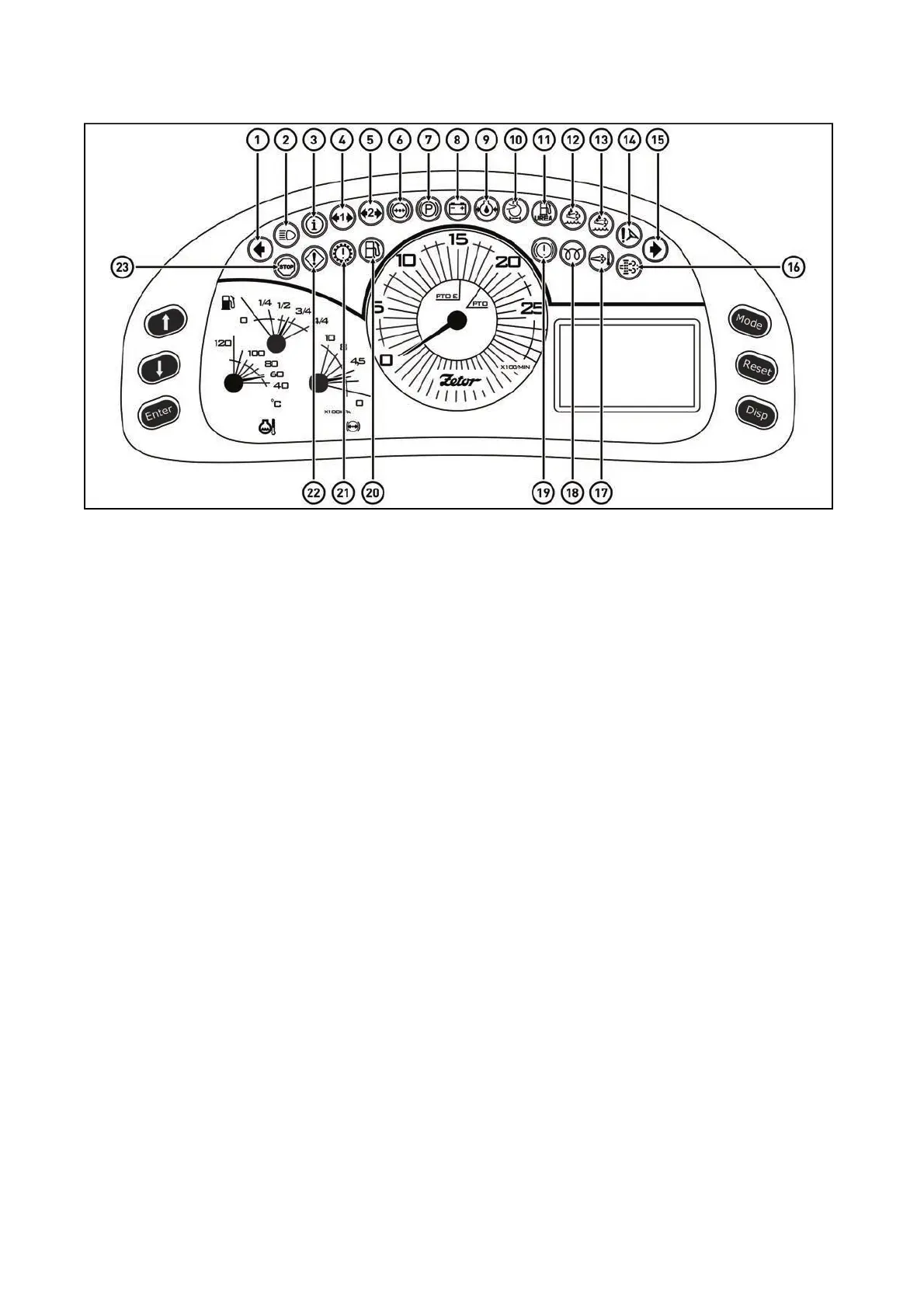

Instrument panel - signal lamps
C15N093
When switching the key in the switch box from 0 position to 1 position, all signal lamps light up.
1 - Signal lamp of the tractor left direction lamps (green).
2 - High beam lights (blue). Lights up with high beam lights on.
3 - Operational protection signal lamp (blue). It is lit up when there is disagreement between operational
values of the tractor groups.
4 - Signal lamp of direction lights of 1st trailer (green)
5 - Signal lamp of direction lights of 2nd trailer (green)
6 - Minimum air pressure in brake system signal lamp (red). It is lit up with the pressured drop for air brakes
of trailer below the critical limit.
7 - Manual brake signal lamp (red). It is lit with engaged manual brake.
8 - Charging signal lamp (red). With engine run, lights up with charging failure. When the engine is at
standstill, it must be lit.
9 - Lubrication signal lamp (red). With engine running lights up with the oil pressure drop below the critical
limit.
10 - Air cleaner clogging signal lamp (yellow). Lights up with air filter clogging.
11 - Urea level signal lamp (red/orange)
12 - SCR signal lamp (red)
13 - SCR signal lamp (orange)
14 - Indicator (red) of a failure in the hydrostatic control system. It lights with engine operation in hydrostatic
control failure. When the engine is at standstill, it must be lit.
15 - Signal lamp of tractor right direction lights (green).
16 - the signal lamp of the diesel particulate filter. It signalizes the state in two stages: In case of the full
diesel particulate filter it glows in orange. In case of a defect it glows in red.
17 - the signal lamp for indication of optimal conditions for regeneration of the diesel particulate filter. It glows
in the case when the temperature is higher than 250°C (green). It flashes in case that regeneration of the
diesel particulate filter (DPF) is being performed.
18 - Engine ignition signal lamp (yellow). Signalizes the activity of the device for facilitation of engine start.
19 - Not connected
20 - Fuel level signal lamp (orange). It is on with the remaining 0 - 1/4 of the tank volume.
21 - Gearbox malfunction signal lamp (dark red)
22 - Warning signal lamp (orange)
23 - Stop signal lamp (red)
