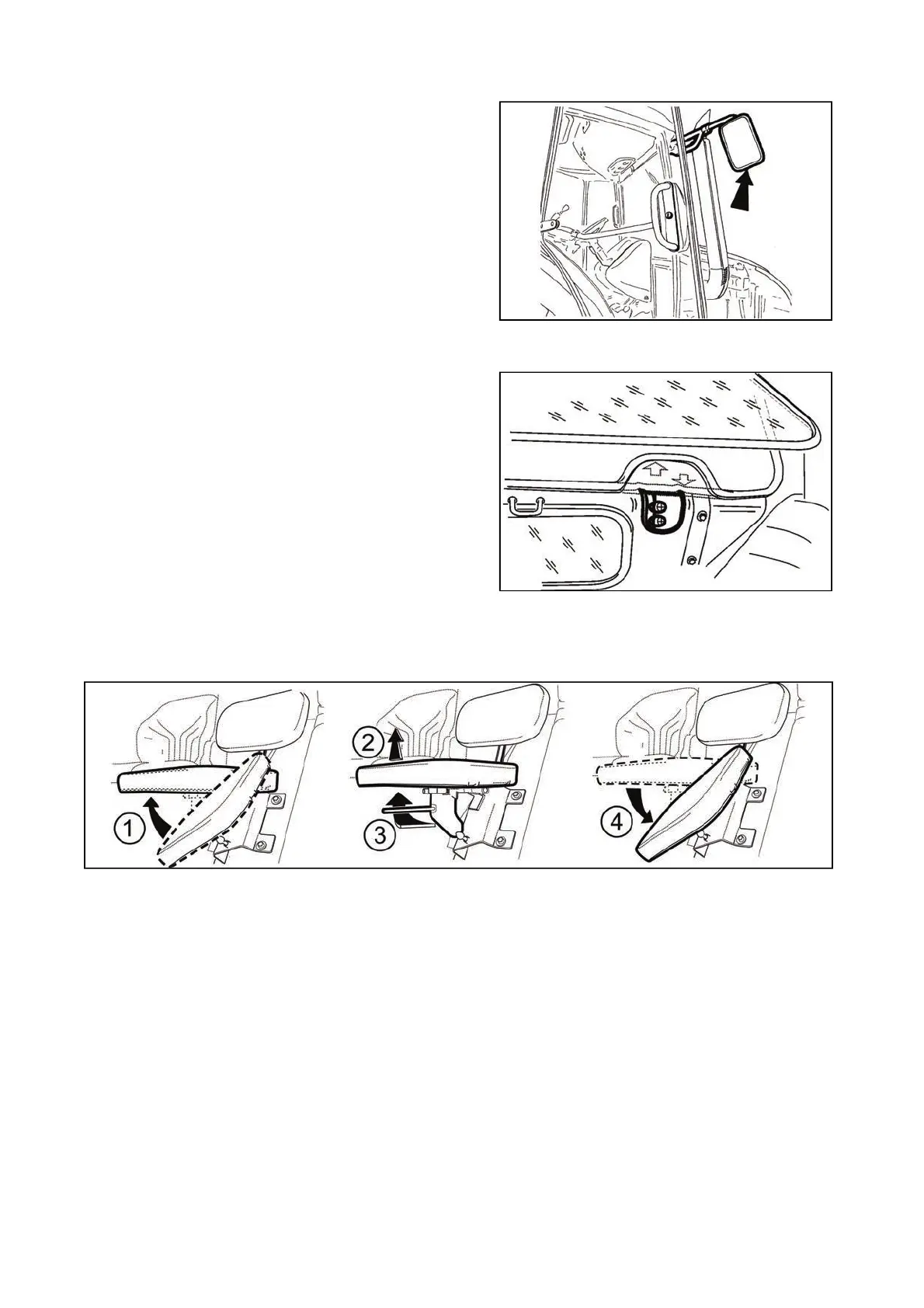

Rear view mirrors
Aggregation opening
Passenger´s seat
Passenger´s seat is tiltable and placed on the left mudguard of the cabin.
P15N028
Seat tilting out
Passenger´s seat to be tilted out in the direction of an arrow (1) upward. Locking of the seat is done
automatically.
Seat tilting
Lift the passenger´s seat in the direction of an arrow (2), pull the lever (3) to the direction of the driver´s seat,
tilt the seat in the direction of an arrow (4).
Before the drive or starting the work, adjust rear view
mirrors so that they enable to monitor the whole drive way
or working field.
F_02_12
Aggregation opening serves for cabelling or Bowden
control of aggregated tools placement.
Pull to protrude the part of sealing of rear window in
upward direction. Put the aggregated tool control through
the originated hole.
Insert cabelling or Bowden controls to the holes of
passage of aggregation opening. Return the sealing of the
rear window to its original position by exercising pressure.
F11N091
ACQUAINTANCE WITH TRACTOR
