Replacement of the transmission oil cleaner element with hydraulic pump suction filte
Gearbox distributor - replacement of oil cleaner cartridge
G749

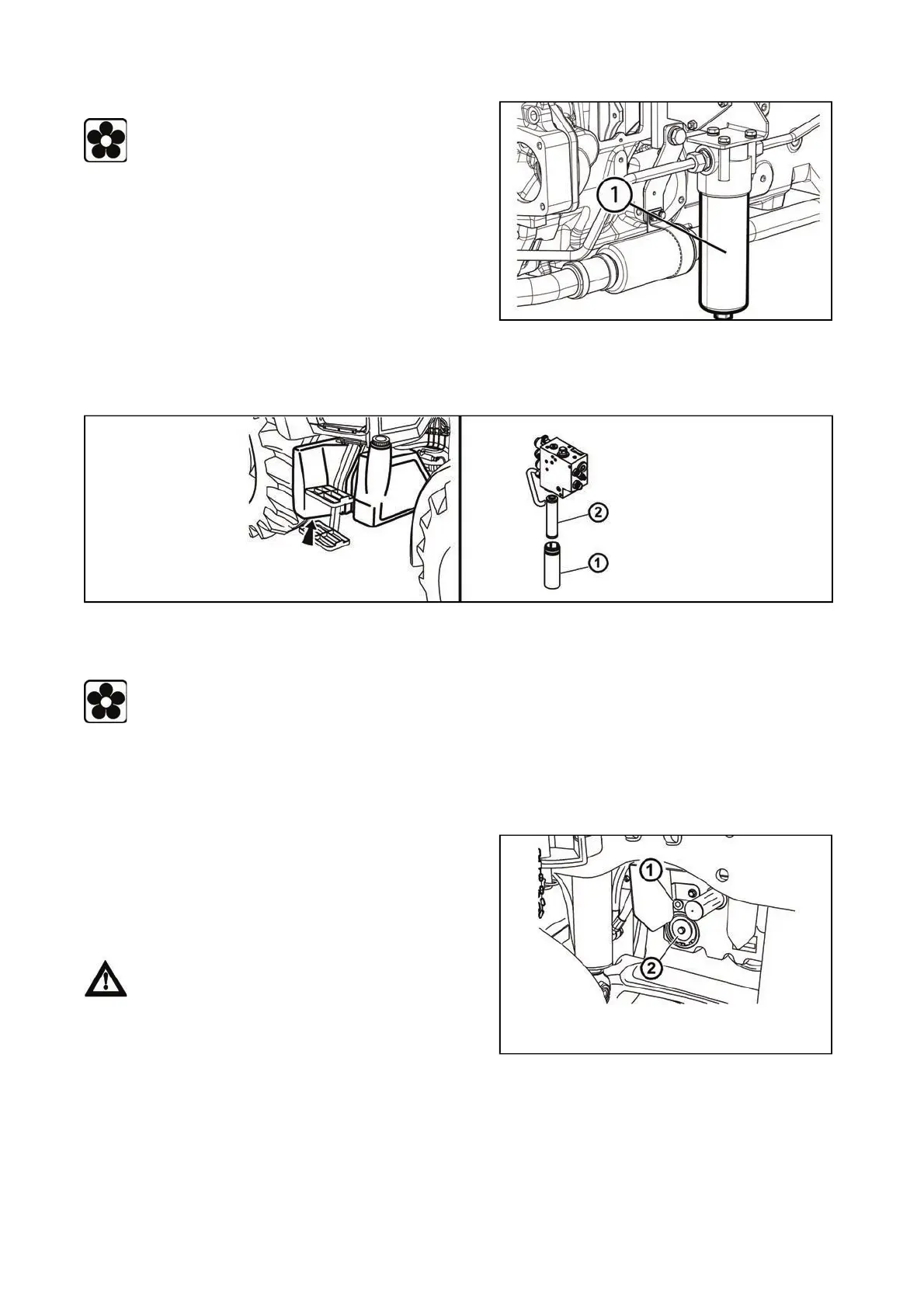

The gearbox distributor is located on the right side of the tractor behind the fuel tank; the oil cleaner is
accessible from the bottom of the tractor.
Before replacement of the oil cleaner cartridge, put a suitable container under the tractor to
catch any leaking oil.
1. Screw out the cleaner body (1).
2. Replace the filtration cartridge (2).
3. Reinstall the cleaner body (1).
Front PTO
The oil cleaner is placed on the left side of the gearbox.
Before replacing the oil cleaner element, place
a suitable vessel for dripping oil under the tractor.
1. Unscrew the body of the cleaner (1)
2. Replace the filtration element
3. Reassemble the body of the cleaner
P11N005
The inspection and filling plug of oil (1) is situated on the
front side of the front PTO case.
Note: The front PTO with the standard turning direction is
equipped with a hollow bolt of the oil cooler hose instead
of the inspection and filling plug. Perform the check after
removing the hollow bolt.
After unscrewing of the inspection plug the oil
level must reach the bottom edge of the inspection
opening. During the oil replacement the oil cleaning
strainer (2) must be cleaned. The cleaning strainer is
accessible after the disassembly of the locking ring
and removal of the cap.
F206
