4 Repair
4.4.11. Fitting equipment on the robot, IRB 1600ID
1633HAC026660-001 Revision: C
© Copyright 2006-2008 ABB. All rights reserved.
4.4.11. Fitting equipment on the robot, IRB 1600ID

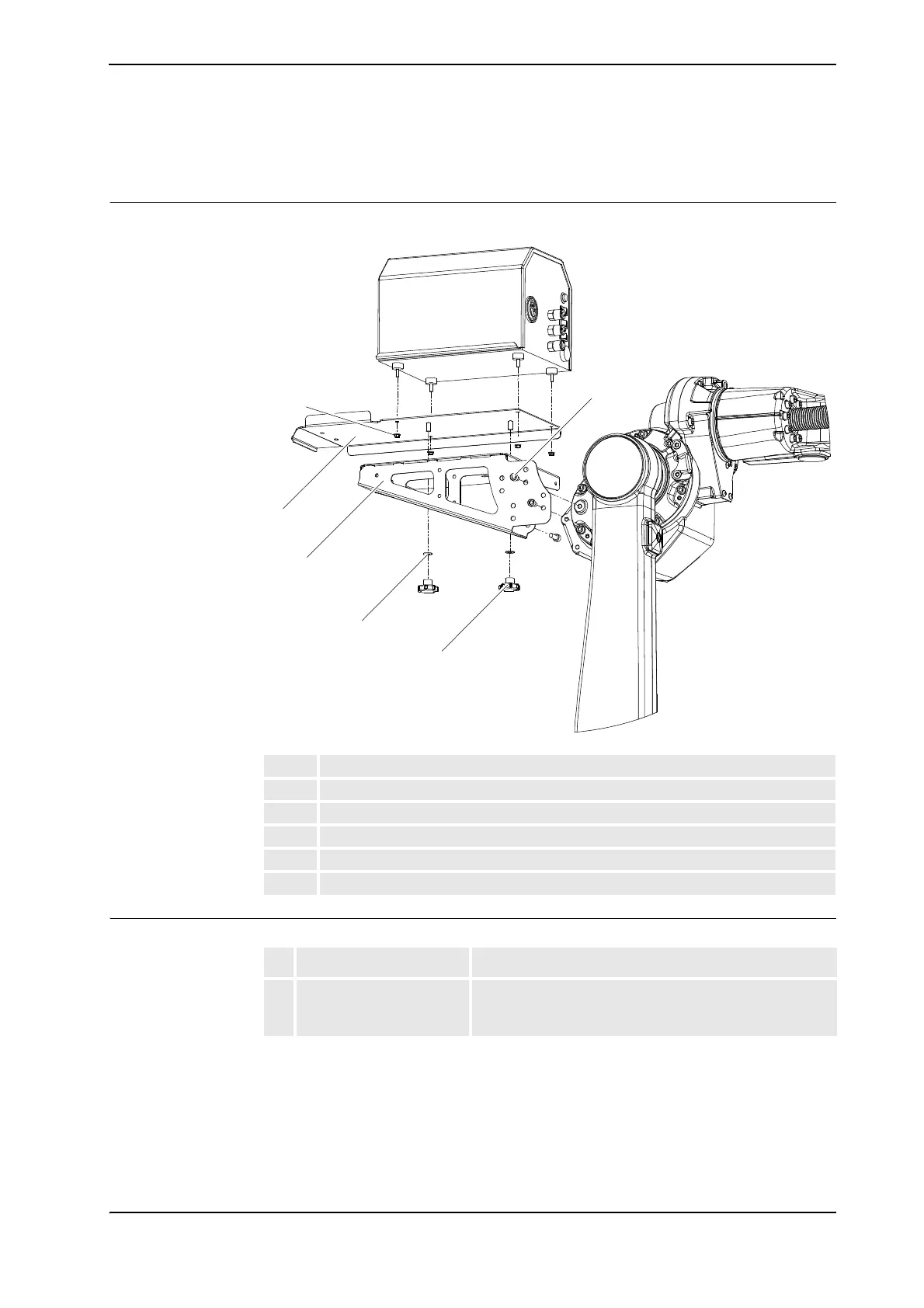

Location of shelf, wire feeder
xx0700000311
Fitting the wire feeder shelf
A Bracket ESAB wire feeder
B Shelf, wire feeder
C Hexagon nut with flange M5
D Knob
E Plain washer (8,4x16x1,6)
F Hex socket head cap screw (M8x12)
A
B
C
D
E
F
Action Note
1. Fit the Shelf, wire feeder
(B) using the four (4) Hex
socket head cap screw (F).
Shown in figure Location of shelf, wire feeder on page 163
Continues on next page
