5.3. Calibration scales and correct axis position
Introduction
This section specifies the calibration scale positions and/or correct axis position for all robot
models.
Calibration marks, IRB 1600

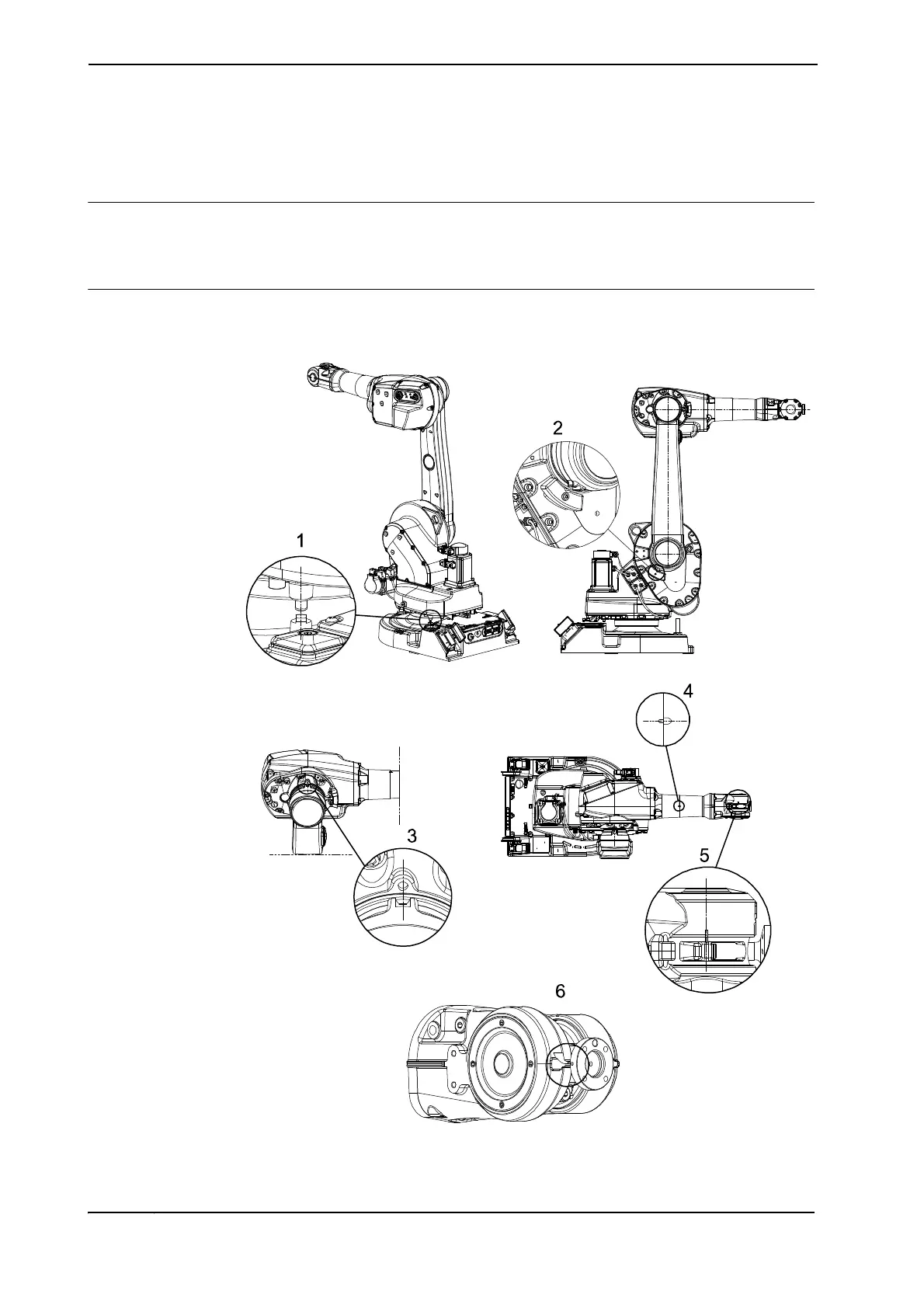

The illustration below shows the calibration marks and correct positions of the six axes of the
robot. The marks shown in the figure are numbered according to the number of the axes.
xx0600002876
