2.4.3. Installation of additional mechanical stop on axis 2
General
This section details how to install an additional mechanical stop on axis 2 in order to restrict
the working range of the axis.
Restrictions in working range

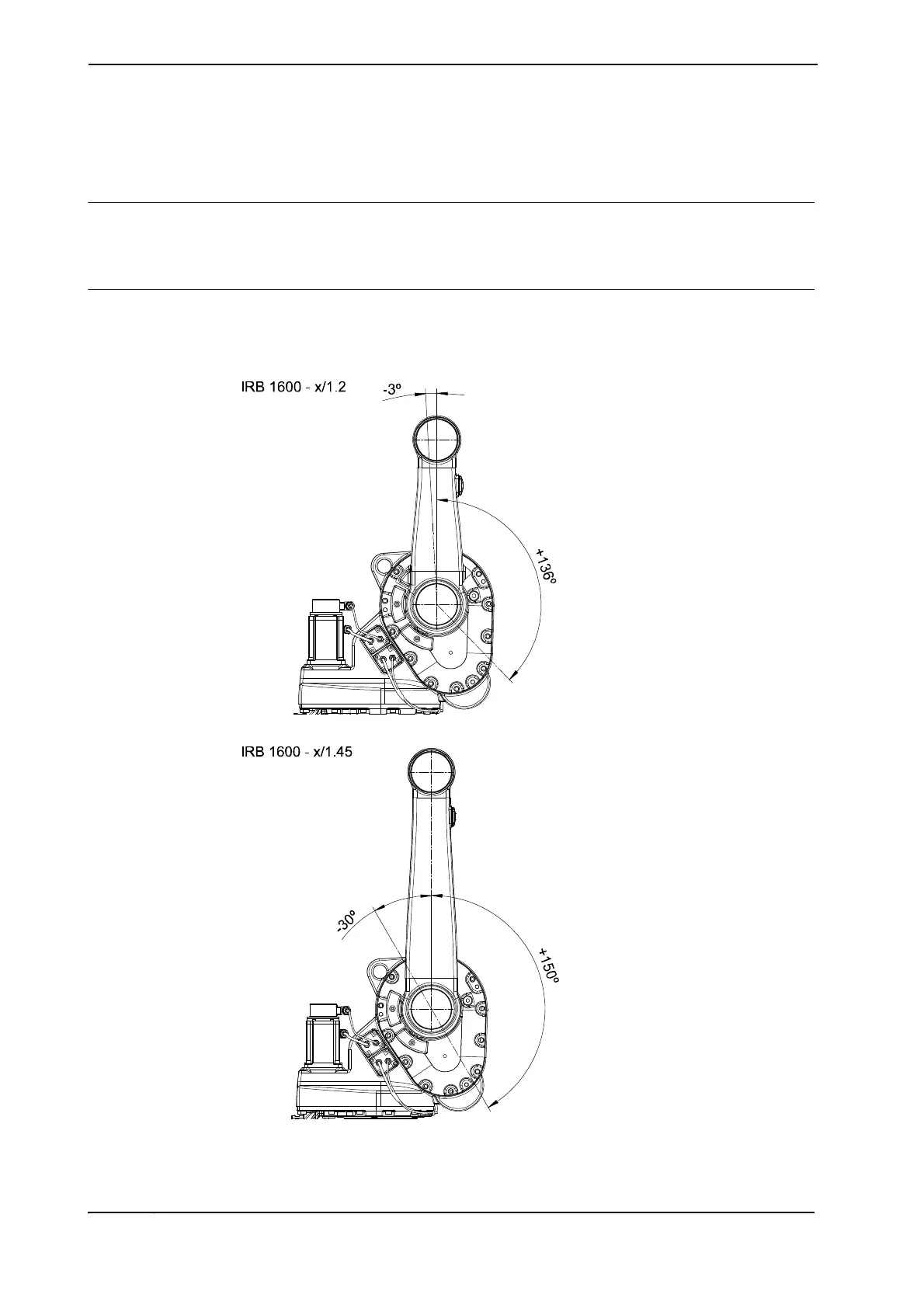

The working range of axis 2 can be restricted by fitting an additional mechanical stop at the
frame. The working range can only be restricted backwards, as shown in the figures below.
Notice the different working ranges for the different models!
xx0400001289
xx0400001290
Continues on next page
