2.3.8. Installation of signal lamp for 1600 ID (option)
3HAC026660-001 Revision: C64
© Copyright 2006-2008 ABB. All rights reserved.
2.3.8. Installation of signal lamp for 1600 ID (option)
General
A signal lamp with an yellow fixed light can be mounted on the robot, as a safety device. The
signal lamp is reqired on an UL/UR approved robot.
The lamp is active in MOTORS ON mode.
Location of signal lamp

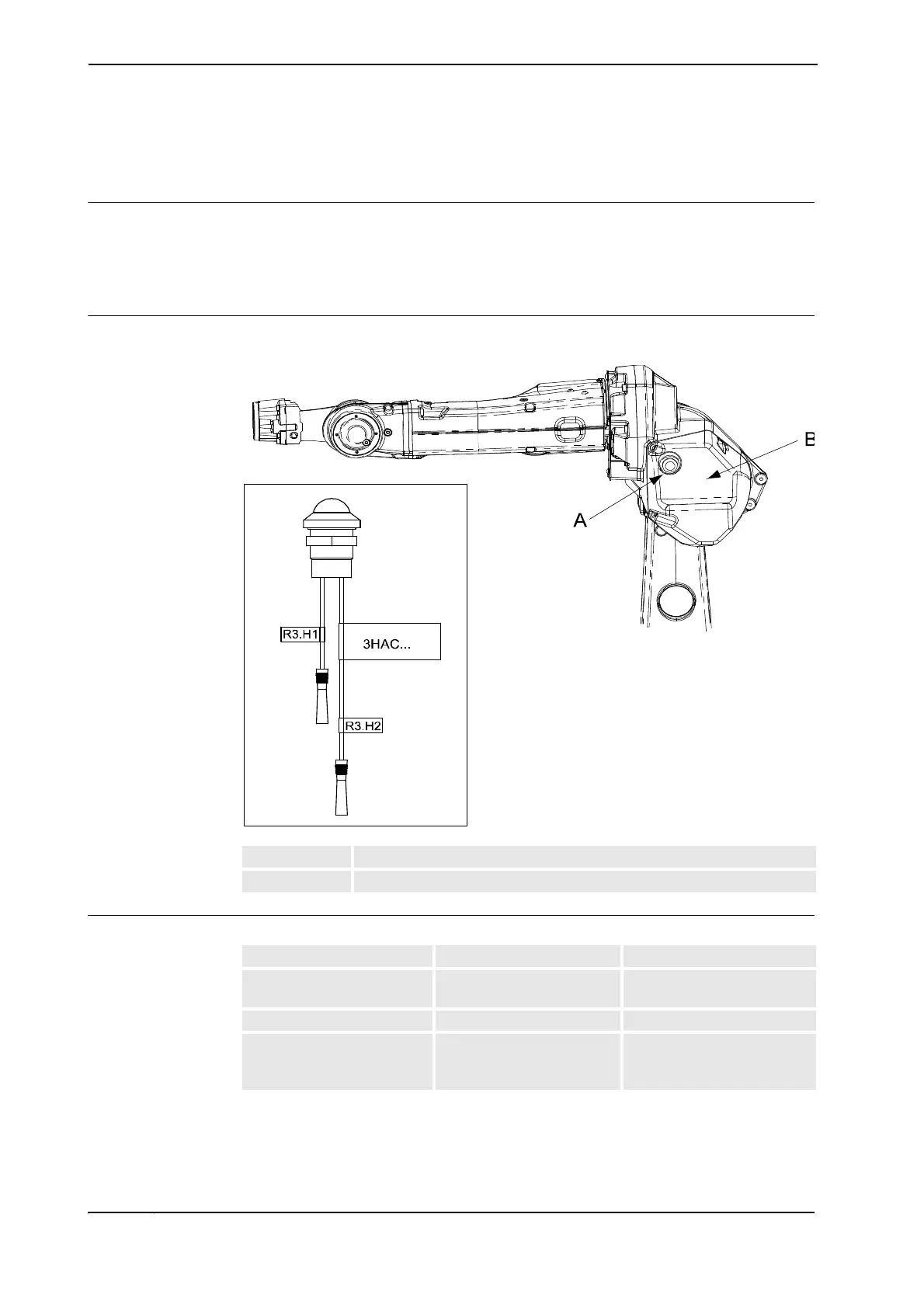

The signal lamp is fitted to the upper arm housing of the robot, as shown in the figure below
xx0700000100
Required equipment
A Signal lamp
B Cover, upper arm housing
Equipment Art. no. Note
Signal lamp 3HAC9258-1 Spare part list, upper arm on
page 254
Drill - Diameter 22,5 mm
Standard toolkit - The contents of the toolkit is
defined in section, Standard
toolkit on page 237
Continues on next page
