3.4.2. Oil change, gearbox axes 5 and 6
Location of oil plugs

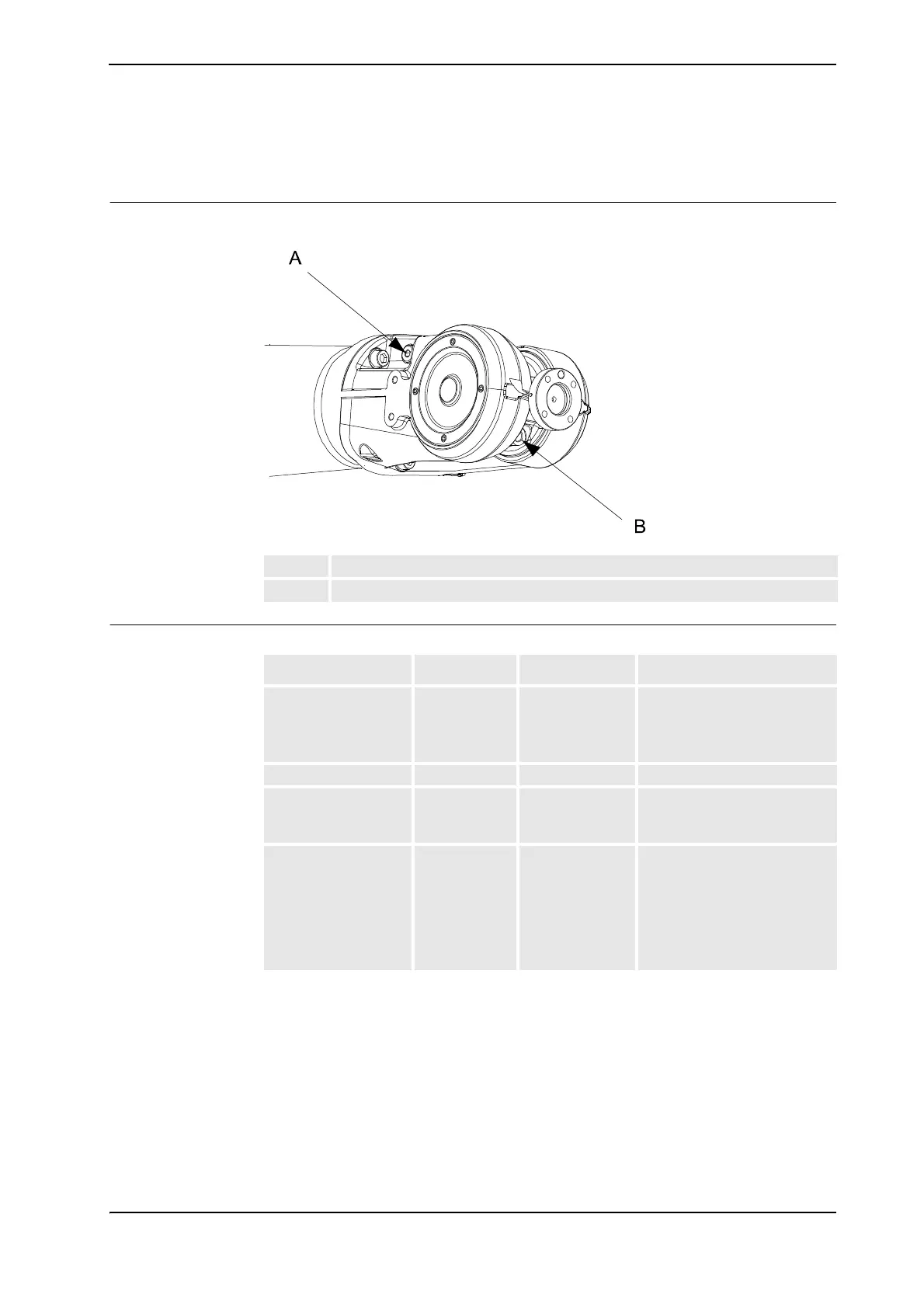

The gearboxes for axes 5 and 6 are located in the wrist unit as shown in the figure below.
xx0600002846
Required equipment
A Oil plug, draining and filling
B Oil plug, vent hole
Equipment, etc. Art. no. Amount Note
Lubricating oil 3HAC 0860-1 Total amount: 350
ml (new wrist)
Amount at oil
change: 300 ml
Optimol BM 100
Oil collecting vessel Capacity: 400 ml.
Standard toolkit The contents are defined in
section Standard toolkit on
page 237.
Other tools and
procedures may be
required. See
references to these
procedures in the
step-by-step instruc-
tions below.
These procedures include
references to the tools
required.
